PPPC321 Series

Catalog

CONN HDR 32POS 0.1 GOLD SMD

Part	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Contact Material	Material Flammability Rating	Contact Finish - Post	Number of Positions Loaded	Fastening Type	Current Rating (Amps)	Voltage Rating	Contact Finish - Mating	Termination	Contact Type	Insulation Height	Insulation Height	Connector Type	Mounting Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post

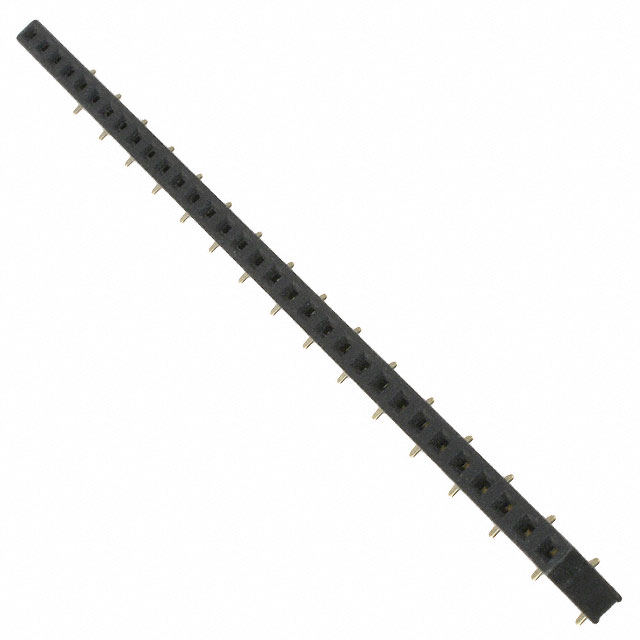

Sullins Connector Solutions PPPC321KFXC	Flash	Square	Polyester	Phosphor Bronze	UL94 V-0	Gold	All	Push-Pull	3 A	250 V	Gold	Solder	Female Socket	0.28 in	7.1 mm	Header Top or Bottom Entry	Surface Mount	1	-40 C	105 ░C	0.1 "	2.54 mm	Black	Flash

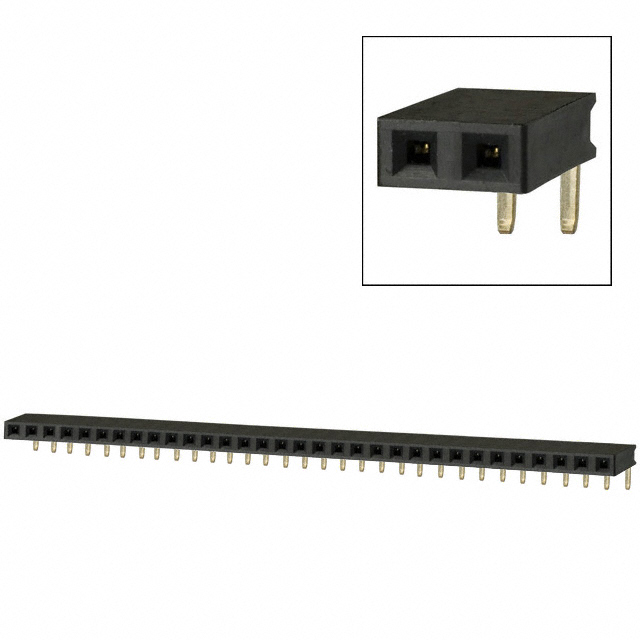

Sullins Connector Solutions PPPC321LGBN	Flash	Square	Polyester	Phosphor Bronze	UL94 V-0	Gold	All	Push-Pull	3 A	250 V	Gold	Solder	Female Socket	0.1 in	2.54 mm	Header	Right Angle Through Hole	1	-40 C	105 ░C	0.1 "	2.54 mm	Black	Flash	0.124 in	3.15 mm
Sullins Connector Solutions PPPC321LGBN-RC	Flash	Square	Polyester	Phosphor Bronze	UL94 V-0	Gold	All	Push-Pull	3 A	250 V	Gold	Solder	Female Socket	0.1 in	2.54 mm	Header	Right Angle Through Hole	1	-40 C	105 ░C	0.1 "	2.54 mm	Black	Flash	0.124 in	3.15 mm
