GTS447A Series
Manufacturer: CW Industries
Beta
⌘K

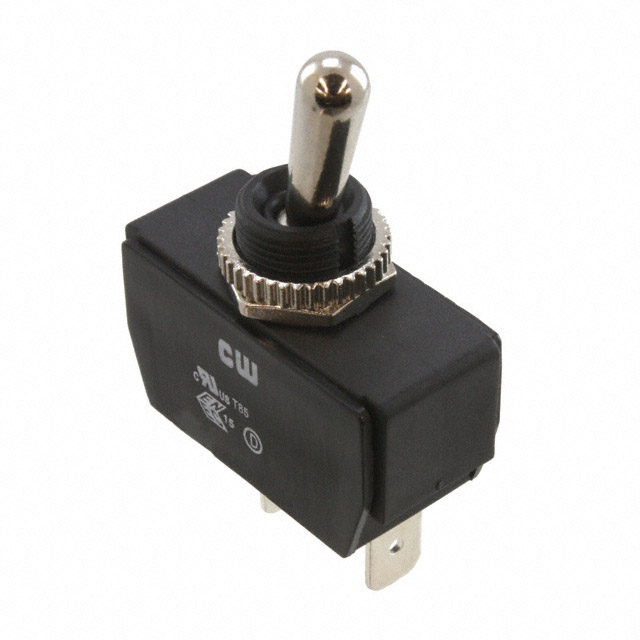

SWITCH TOGGLE SPST 20A 277V
| Part | Electrical Life | Termination Style | Illumination | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Mounting Type | Switch Function | Ingress Protection | Panel Cutout Dimensions [diameter] | Actuator Length [x] | Voltage Rating - AC | Current Rating (Amps) | Circuit | Bushing Thread |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 10000 Cycles | Quick Connect - 0.250" (6.3mm) | Non-Illuminated | 0 °C | 85 °C | Standard Round | Panel Mount | On-Off | IP56 - Dust Protected Water Resistant | 12.2 mm Dia | 17.5 mm | 250 V | 20 A | SPST | 15/32-32 |
