DFKH Series

Catalog

CMC 1A 2LN TH

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Number of Lines	Package / Case	Mounting Type	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max)

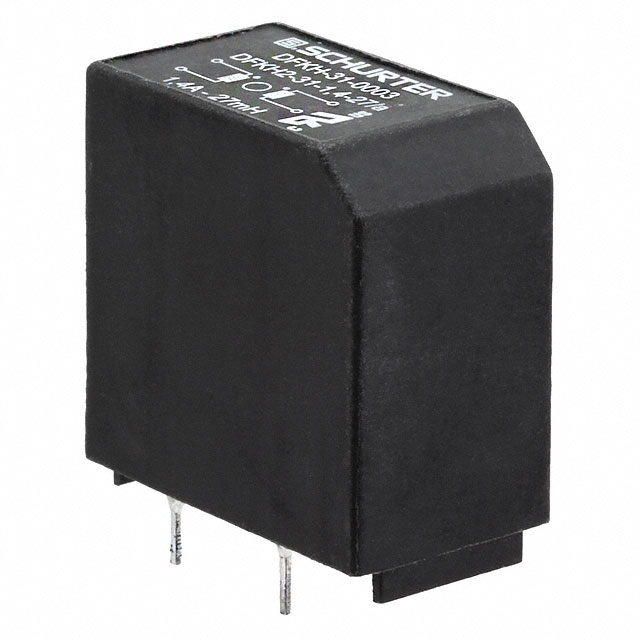

SCHURTER Inc. DFKH-31-0002	1.24 in	18.5 mm	0.728 in	31.5 mm	440 V	2	Radial - 4 Leads	Through Hole	1 A	700 mOhm	100 °C	-25 °C
SCHURTER Inc. DFKH-31-0008	1.24 in	18.5 mm	0.728 in	31.5 mm	440 V	2	Radial - 4 Leads	Through Hole	6 A	24 mOhm	100 °C	-25 °C
SCHURTER Inc. DFKH-31-0001	1.24 in	18.5 mm	0.728 in	31.5 mm	440 V	2	Radial - 4 Leads	Through Hole	600 mA	1.2 Ohm	100 °C	-25 °C

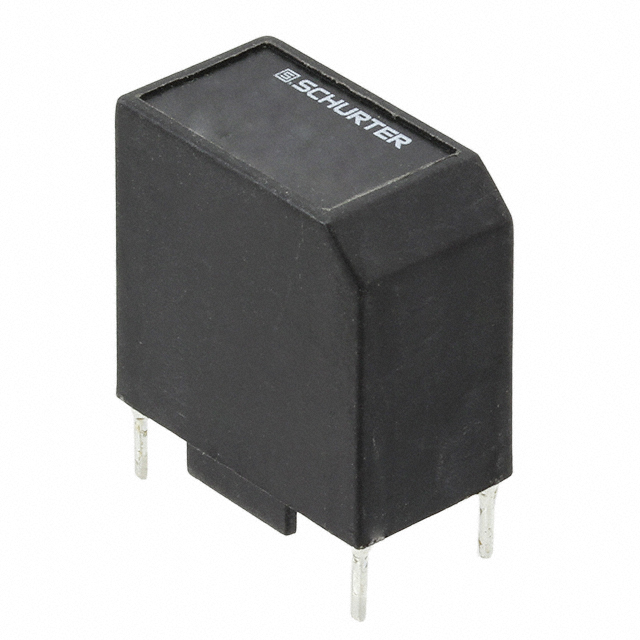

SCHURTER Inc. DFKH-22-0003	0.906 in	13 mm	0.512 "	23 mm	440 V	2	Radial - 4 Leads	Through Hole	2 A	150 mOhm	100 °C	-25 °C
SCHURTER Inc. DFKH-22-0005	0.906 in	13 mm	0.512 "	23 mm	440 V	2	Radial - 4 Leads	Through Hole	6.3 A	15 mOhm	100 °C	-25 °C

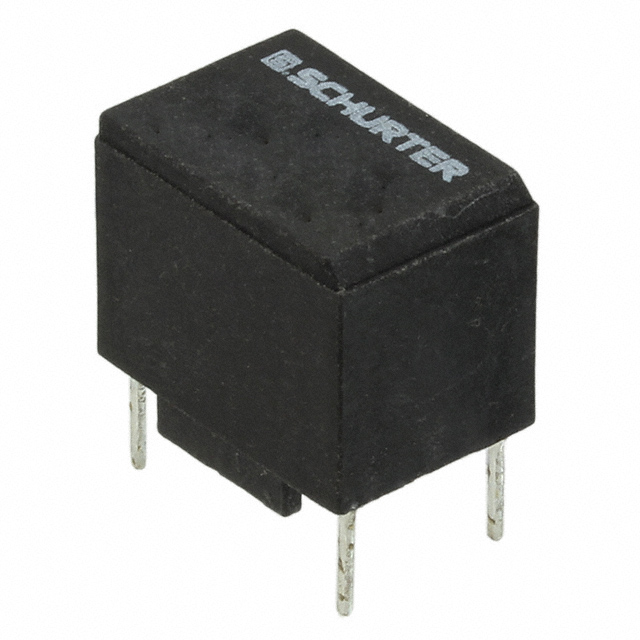

SCHURTER Inc. DFKH-14-0003	0.591 in	10.5 mm	0.413 in	15 mm	440 V	2	Radial - 4 Leads	Through Hole	2 A		100 °C	-25 °C	65 mOhm
SCHURTER Inc. DFKH-31-0007	1.24 in	18.5 mm	0.728 in	31.5 mm	440 V	2	Radial - 4 Leads	Through Hole	4 A	58 mOhm	100 °C	-25 °C
SCHURTER Inc. DFKH-14-0002	0.591 in	10.5 mm	0.413 in	15 mm	440 V	2	Radial - 4 Leads	Through Hole	1 A	250 mOhm	100 °C	-25 °C
SCHURTER Inc. DFKH-22-0002	0.906 in	13 mm	0.512 "	23 mm	440 V	2	Radial - 4 Leads	Through Hole	1 A	500 mOhm	100 °C	-25 °C
SCHURTER Inc. DFKH-31-0005	1.24 in	18.5 mm	0.728 in	31.5 mm	440 V	2	Radial - 4 Leads	Through Hole	2 A	150 mOhm	100 °C	-25 °C
