EX2024 Series

Catalog

PULSE XFMR 1CT:2.5CT 1CT:1CT

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Turns Ratio - Primary:Secondary	Transformer Type	Inductance	Weight	Weight

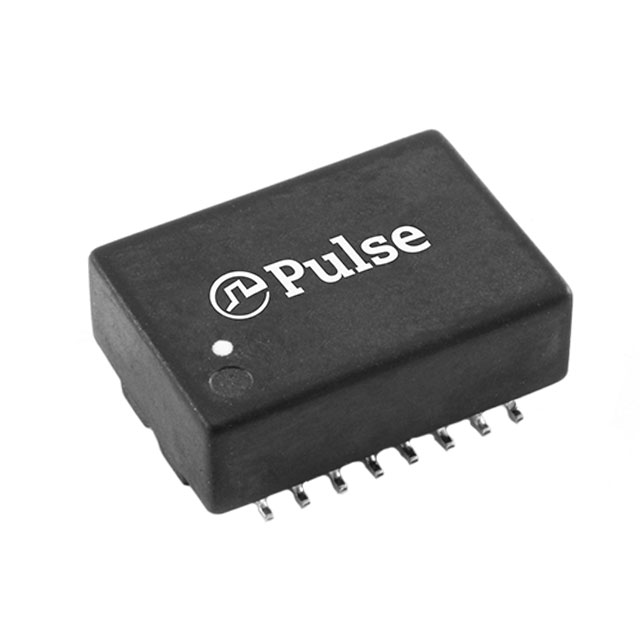

Pulse Electronics EX2024FNL	5.08 mm	0.2 in	Surface Mount	85 °C	-40 C	12.65 mm	0.35 in	0.498 "	8.89 mm	1 CT 1 CT 2.5 CT	LAN 10 Base-T	35 µH 200 µH

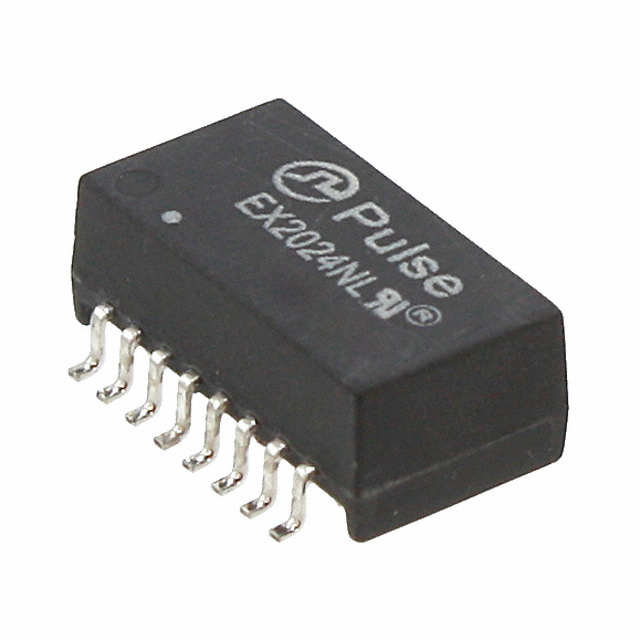

Pulse Electronics EX2024NL	5.33 mm	0.21 in	Surface Mount	70 °C	0 °C	12.7 mm	0.285 in	0.5 "	7.24 mm	1 CT 1 CT 2.5 CT	Isolation and Data Interface (Encapsulated)	350 µH	0.85 g	0.03 oz
Pulse Electronics EX2024NLT	5.33 mm	0.21 in	Surface Mount	70 °C	0 °C	12.7 mm	0.285 in	0.5 "	7.24 mm	1 CT 1 CT 2.5 CT	Isolation and Data Interface (Encapsulated)	350 µH	0.85 g	0.03 oz
