322-044 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 44 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Termination Rows [custom]	Material - Insulation	Pitch	Pitch	Features	Flange Feature	Termination	Contact Type	Color	Contact Material	Contact Finish	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Read Out	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Number of Positions	Card Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 322-044-560-258	2	Polycarbonate (PC) Glass Filled	3.96 mm	0.156 in	Card Extender Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Solder	Semi Bellows	Gray	Copper Alloy	Gold	Female	-40 C	105 ░C	22	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Board Edge Straddle Mount	0.25 Ám	10 Áin	2	44	Non Specified - Dual Edge
EDAC Inc. 322-044-520-254	2	Polycarbonate (PC) Glass Filled	3.96 mm	0.156 in	Card Guides	Flush Mount Top Opening Unthreaded	Solder	Semi Bellows	Gray	Copper Alloy	Gold	Female	-40 C	105 ░C	22	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	0.25 Ám	10 Áin	2	44	Non Specified - Dual Edge	0.156 "	3.96 mm
EDAC Inc. 322-044-522-254	2	Polycarbonate (PC) Glass Filled	3.96 mm	0.156 in	Card Guides	Flush Mount Top Opening Unthreaded	Solder	Semi Bellows	Gray	Copper Alloy	Gold	Female	-40 C	105 ░C	22	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	0.25 Ám	10 Áin	2	44	Non Specified - Dual Edge	0.156 "	3.96 mm
EDAC Inc. 322-044-540-258	2	Polycarbonate (PC) Glass Filled	3.96 mm	0.156 in	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Wire Wrap	Semi Bellows	Gray	Copper Alloy	Gold	Female	-40 C	105 ░C	22	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	0.25 Ám	10 Áin	2	44	Non Specified - Dual Edge

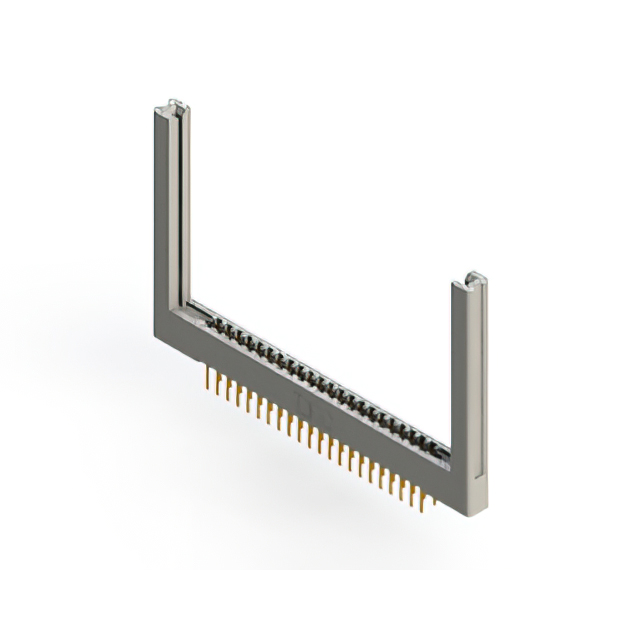

EDAC Inc. 322-044-522-258	2	Polycarbonate (PC) Glass Filled	3.96 mm	0.156 in	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Solder	Semi Bellows	Gray	Copper Alloy	Gold	Female	-40 C	105 ░C	22	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	0.25 Ám	10 Áin	2	44	Non Specified - Dual Edge
EDAC Inc. 322-044-556-254	2	Polycarbonate (PC) Glass Filled	3.96 mm	0.156 in	Card Extender Card Guides	Flush Mount Top Opening Unthreaded	Solder	Semi Bellows	Gray	Copper Alloy	Gold	Female	-40 C	105 ░C	22	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Board Edge Straddle Mount	0.25 Ám	10 Áin	2	44	Non Specified - Dual Edge	0.156 "	3.96 mm
EDAC Inc. 322-044-540-257	2	Polycarbonate (PC) Glass Filled	3.96 mm	0.156 in	Card Guides	Flush Mount M3 Threaded Insert Top Opening	Wire Wrap	Semi Bellows	Gray	Copper Alloy	Gold	Female	-40 C	105 ░C	22	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	0.25 Ám	10 Áin	2	44	Non Specified - Dual Edge

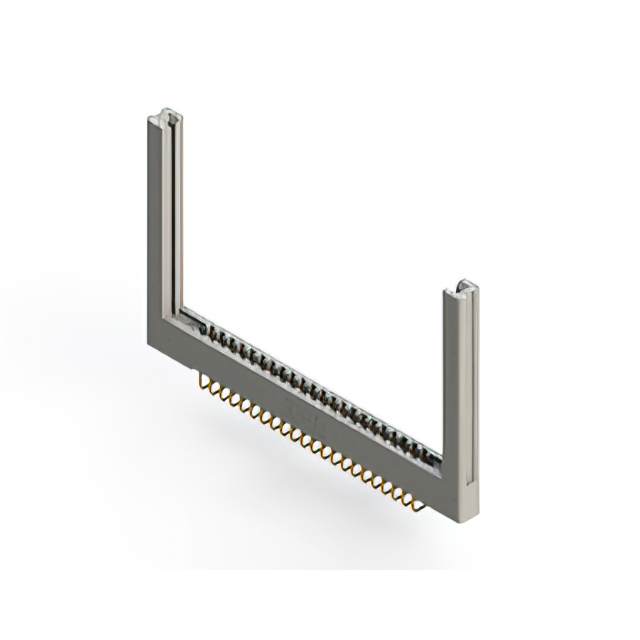

EDAC Inc. 322-044-558-257	2	Polycarbonate (PC) Glass Filled	3.96 mm	0.156 in	Card Guides	Flush Mount M3 Threaded Insert Top Opening	Solder Wire Wrap	Semi Bellows	Gray	Copper Alloy	Gold	Female	-40 C	105 ░C	22	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Right Angle Through Hole	0.25 Ám	10 Áin	2	44	Non Specified - Dual Edge

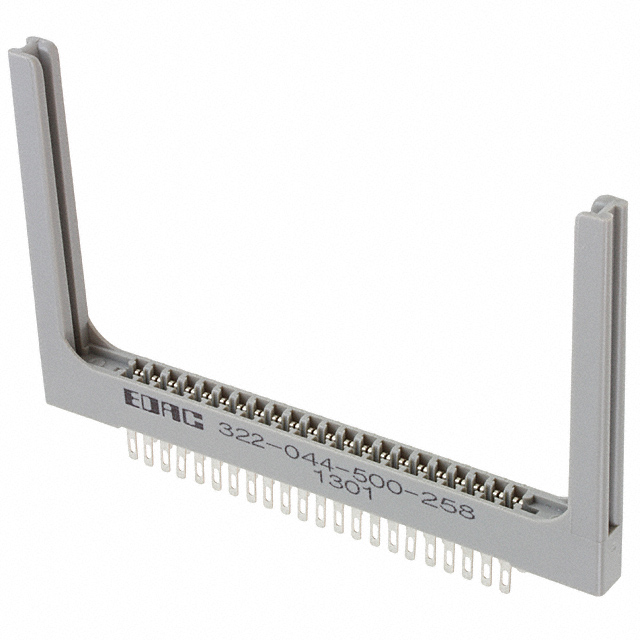

EDAC Inc. 322-044-500-258	2	Polycarbonate (PC) Glass Filled	3.96 mm	0.156 in	Card Guides	4-40 Flush Mount Threaded Insert Top Opening	Solder Eyelet(s)	Semi Bellows	Gray	Copper Alloy	Gold	Female	-40 C	105 ░C	22	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	0.25 Ám	10 Áin	2	44	Non Specified - Dual Edge
EDAC Inc. 322-044-560-254	2	Polycarbonate (PC) Glass Filled	3.96 mm	0.156 in	Card Extender Card Guides	Flush Mount Top Opening Unthreaded	Solder	Semi Bellows	Gray	Copper Alloy	Gold	Female	-40 C	105 ░C	22	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Board Edge Straddle Mount	0.25 Ám	10 Áin	2	44	Non Specified - Dual Edge	0.156 "	3.96 mm
