SLW24 Series

Catalog

CONN FFC FPC BOTTOM 24POS 1MM RA

Part	Mating Cycles	Housing Color	Actuator Color	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board [z]	Height Above Board [z]	Termination	FFC, FCB Thickness	Pitch	Pitch	Actuator Material	Cable End Type	Contact Finish	Features	Number of Positions	Voltage Rating	Flat Flex Type	Connector/Contact Type	Contact Material	Mounting Type	Material Flammability Rating	Housing Material	Locking Feature
Amphenol ICC (FCI) SLW24R-1C7LF	20	Black	Black	-55 C	85 °C	0.157 in	4 mm	Solder	0.3 mm	1 mm	0.039 in	Glass Filled Nylon Polyamide (PA)	Notched Tabbed	Tin	Solder Retention Zero Insertion Force (ZIF)	24	100 V	FFC FPC	Contacts Bottom	Phosphor Bronze	Right Angle Through Hole	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Flip Lock

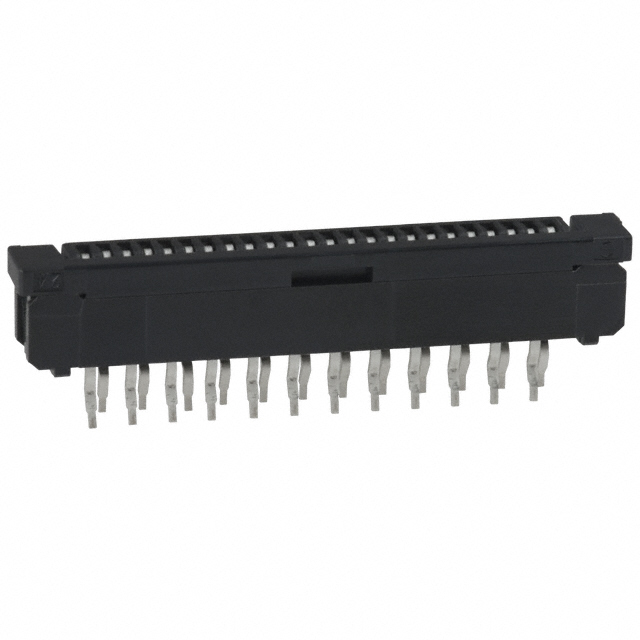

Amphenol ICC (FCI) SLW24S-1C7LF	20	Black		-55 C	85 °C	0.217 in	5.5 mm	Kinked Pin	0.33 mm	1 mm	0.039 in	Glass Filled Nylon Polyamide (PA)		Tin		24	100 V	FFC FPC	Contacts Vertical - 1 Sided	Phosphor Bronze	Through Hole	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Slide Lock
