MF35100V2 Series
Manufacturer: Sunon Fans
Beta
⌘K

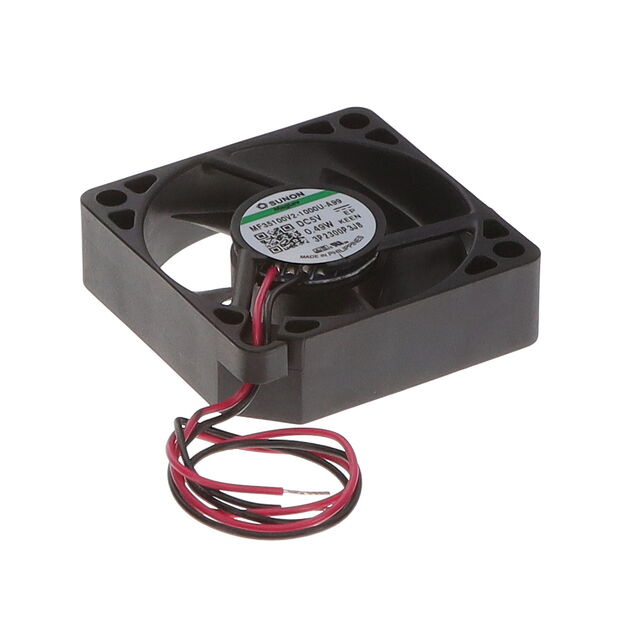

FAN AXIAL 35X10MM VAPO 5VDC WIRE
| Part | Material - Blade | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Static Pressure | Static Pressure | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension | Size / Dimension [y] | Features | RPM | Fan Type | Approval Agency | Power (Watts) | Bearing Type | Weight | Weight | Voltage - Rated | Width [y] | Noise | Termination | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sunon Fans | Polybutylene Terephthalate (PBT) | 70000 Hrs | 2.5 V | 6 VDC | 32.4 Pa | 0.13 in H2O | 70 °C | -10 °C | 35 mm | Square | 35 mm | Auto Restart | 7500 RPM | Tubeaxial | cURus TUV | 0.4 W | Vapo-Bearing™ | 10.89 g | 0.024 lb | 5 V | 10 mm | 21.8 dB(A) | 2 Wire Leads | 0.182 m³/min | 6.5 CFM |
