MX7541 Series

CMOS, 12 Bit Multiplying D/A Converter

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

CMOS, 12 Bit Multiplying D/A Converter

Part	Supplier Device Package	Operating Temperature [Max]	Number of Bits	Mounting Type	Architecture	Voltage - Supply, Digital [Max] [custom]	Voltage - Supply, Digital [Min] [custom]	Number of D/A Converters	Settling Time	Package / Case	Package / Case	Package / Case	Output Type	INL/DNL (LSB)	Data Interface	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Reference Type	Package / Case	INL/DNL (LSB)	Supplier Device Package [x]	Supplier Device Package [y]
Analog Devices Inc./Maxim Integrated MX7541KN+	18-PDIP	70 °C	12	Through Hole	R-2R	16 V	5 V	1	1 µs	0.3 in	18-DIP	7.62 mm	Current - Unbuffered	±1 (Max) -	Parallel	5 V	16 V	External

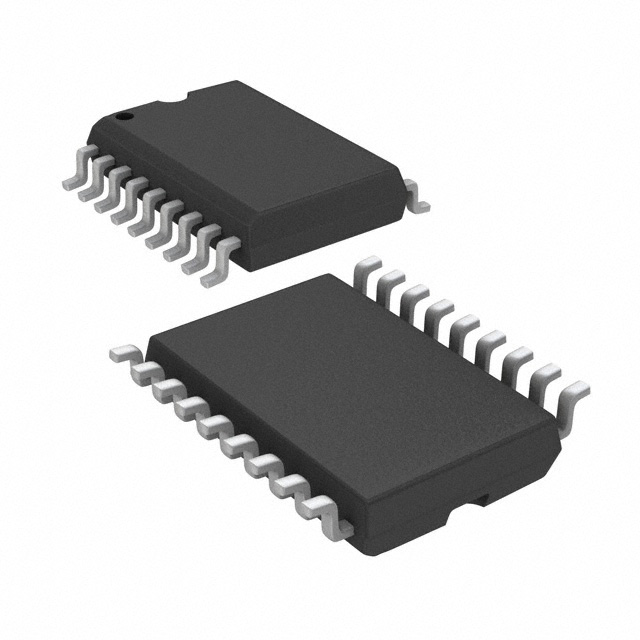

Analog Devices Inc./Maxim Integrated MX7541AKEWN+T	18-SOIC	70 °C	12	Surface Mount	R-2R	16 V	5 V	1	600 ns		18-SOIC		Current - Unbuffered		Parallel	5 V	16 V	External	0.295 " 7.5 mm	0.5 LSB
Analog Devices Inc./Maxim Integrated MX7541AJN+	18-PDIP	70 °C	12	Through Hole	R-2R	16 V	5 V	1	600 ns	0.3 in	18-DIP	7.62 mm	Current - Unbuffered	±1 (Max)	Parallel	5 V	16 V	External
Analog Devices Inc./Maxim Integrated MX7541AKEWN+	18-SOIC	70 °C	12	Surface Mount	R-2R	16 V	5 V	1	600 ns		18-SOIC		Current - Unbuffered		Parallel	5 V	16 V	External	0.295 " 7.5 mm	0.5 LSB
Analog Devices Inc./Maxim Integrated MX7541AJP+	20-PLCC	70 °C	12	Surface Mount	R-2R	16 V	5 V	1	600 ns		20-LCC (J-Lead)		Current - Unbuffered	±1 (Max)	Parallel	5 V	16 V	External			9	9
Analog Devices Inc./Maxim Integrated MX7541AKP+T	20-PLCC	70 °C	12	Surface Mount	R-2R	16 V	5 V	1	600 ns		20-LCC (J-Lead)		Current - Unbuffered		Parallel	5 V	16 V	External		0.5 LSB	9	9
Analog Devices Inc./Maxim Integrated MX7541JCWN+	18-SOIC	70 °C	12	Surface Mount	R-2R	16 V	5 V	1	1 µs		18-SOIC		Current - Unbuffered	±1 (Max) -	Parallel	5 V	16 V	External	0.295 " 7.5 mm
Analog Devices Inc./Maxim Integrated MX7541JN+	18-PDIP	70 °C	12	Through Hole	R-2R	16 V	5 V	1	1 µs	0.3 in	18-DIP	7.62 mm	Current - Unbuffered	±1 (Max) -	Parallel	5 V	16 V	External
Analog Devices Inc./Maxim Integrated MX7541AJCWN+	18-SOIC	70 °C	12	Surface Mount	R-2R	16 V	5 V	1	600 ns		18-SOIC		Current - Unbuffered	±1 (Max)	Parallel	5 V	16 V	External	0.295 " 7.5 mm
Analog Devices Inc./Maxim Integrated MX7541KCWN+	18-SOIC	70 °C	12	Surface Mount	R-2R	16 V	5 V	1	1 µs		18-SOIC		Current - Unbuffered	±1 (Max) -	Parallel	5 V	16 V	External	0.295 " 7.5 mm

Catalog

CMOS, 12 Bit Multiplying D/A Converter

Description

The MX7541A is a high performance CMOS multiplying 12-bit digital-to-analog converter (DAC). Low power operation and 12-bit (0.012%) linearity make it suitable for a wide range of precision data acquisition and control applications. Wafer level laser trimmed thin-film resistors and temperature compensated NMOS switches assure true 12-bit performance over the full operating temperature range. In addition, all digital inputs are compatible with both CMOS and TTL logic levels. Maxim's MX7541A is electrically and pin compatible with Analog Devices AD7541A and AD7541. Package types include 18-lead standard width DIP and Small Outline packages.ApplicationsµP-Controlled Calibration CircuitryAutomatic Test EquipmentDigitally Controlled FiltersMachine and Motion Control SystemsProgrammable Gain AmplifiersProgrammable Power Supplies
