LHC1 Series

Manufacturer: Lumileds

Catalog

LED COB LUXEON WM WHT SQ 2200K

Part	Lumens/Watt @ Current - Test	Viewing Angle	Height [z]	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Temperature - Test	Type	Lens Type	Current - Test	Light Emitting Surface (LES) [diameter]	CCT (K)	CRI (Color Rendering Index)	Color	Configuration	CCT (K)

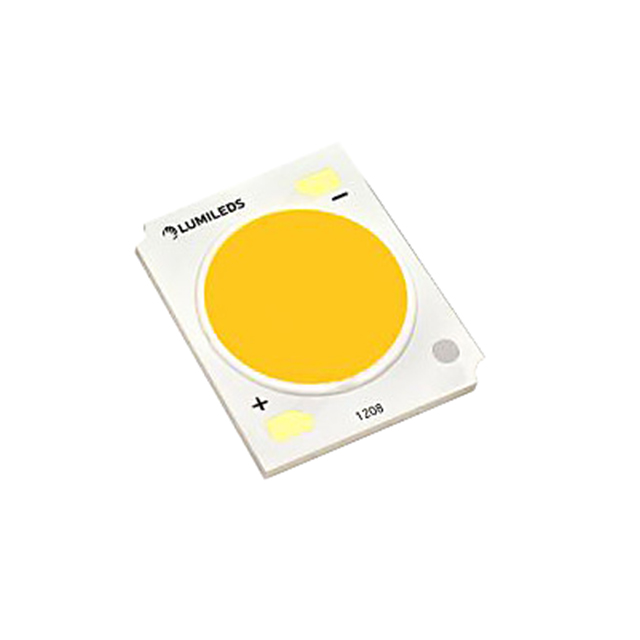

Lumileds LHC1-2290-1208	67 lm/W	115 °	1.5 mm	2125 lm	35.5 V	24 mm	20 mm	1.8 A	85 °C	Chip On Board (COB)	Flat	900 mA	15 mm	2200 K	90	Warm White	Square

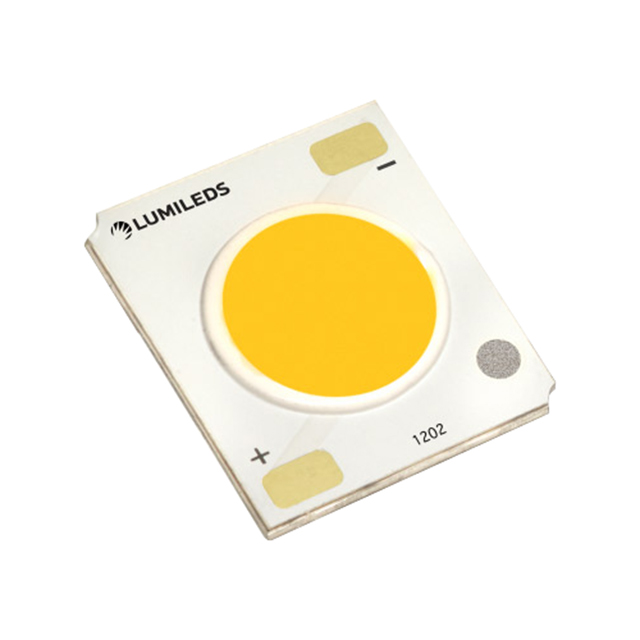

Lumileds LHC1-3090-1202	92 lm/W	115 °	1.5 mm	650 lm	35.5 V	16 mm	19 mm	400 mA	85 °C	Chip On Board (COB)	Flat	200 mA	9 mm	3000 K	90	Warm White	Rectangle	3-Step MacAdam Ellipse
Lumileds LHC1-3090-1208	93 lm/W	125 °	1.5 mm	2950 lm	35.5 V	20 mm	24 mm	1.8 A	85 °C	Chip On Board (COB)	Flat	900 mA	17 mm	3000 K	90	Warm White	Square	3-Step MacAdam Ellipse

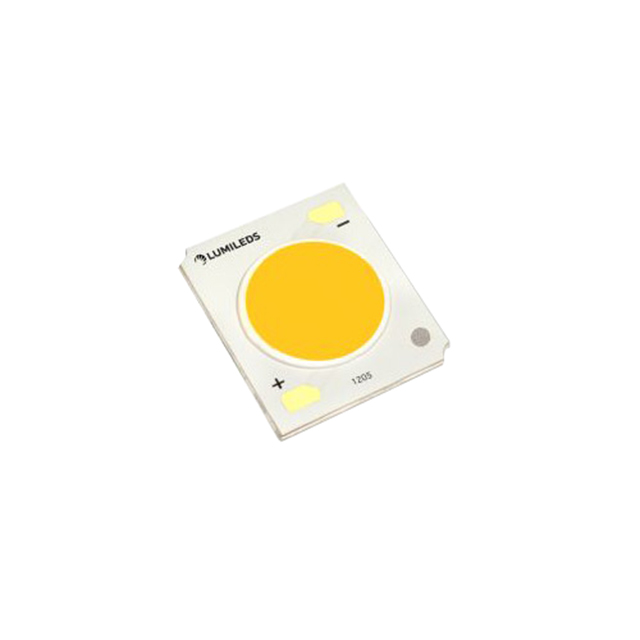

Lumileds LHC1-2790-1205	90 lm/W	100 °	1.5 mm	1900 lm	35.5 V	20 mm	24 mm	1.2 A	85 °C	Chip On Board (COB)	Flat	600 mA	13 mm	2700 K	90	Warm White	Square	3-Step MacAdam Ellipse
Lumileds LHC1-4090-1208	100 lm/W	100 °	1.5 mm	3200 lm	35.5 V	20 mm	24 mm	1.8 A	85 °C	Chip On Board (COB)	Flat	900 mA	15 mm	4000 K	90	Neutral White	Square	3-Step MacAdam Ellipse
Lumileds LHC1-4090-1202	102 lm/W	115 °	1.5 mm	725 lm	35.5 V	16 mm	19 mm	400 mA	85 °C	Chip On Board (COB)	Flat	200 mA	9 mm	4000 K	90	White	Rectangle	3-Step MacAdam Ellipse

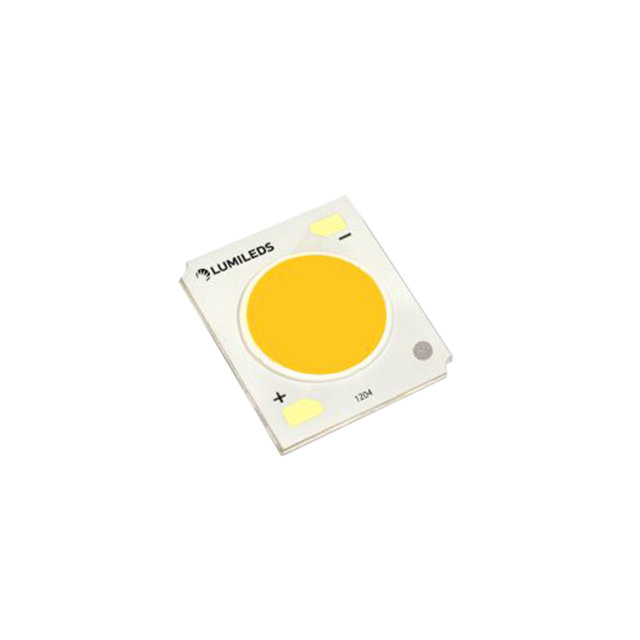

Lumileds LHC1-4080-1204	122 lm/W	125 °	1.5 mm	1950 lm	35.5 V	20 mm	24 mm	900 mA	85 °C	Chip On Board (COB)	Flat	450 mA	13 mm	4000 K	80	Neutral White	Square	3-Step MacAdam Ellipse
Lumileds LHC1-5070-1204	130 lm/W	100 °	1.5 mm	2050 lm	35.5 V	20 mm	24 mm	900 mA	85 °C	Chip On Board (COB)	Flat	450 mA	13 mm	5000 K	70	Cool White	Square	5-Step MacAdam Ellipse

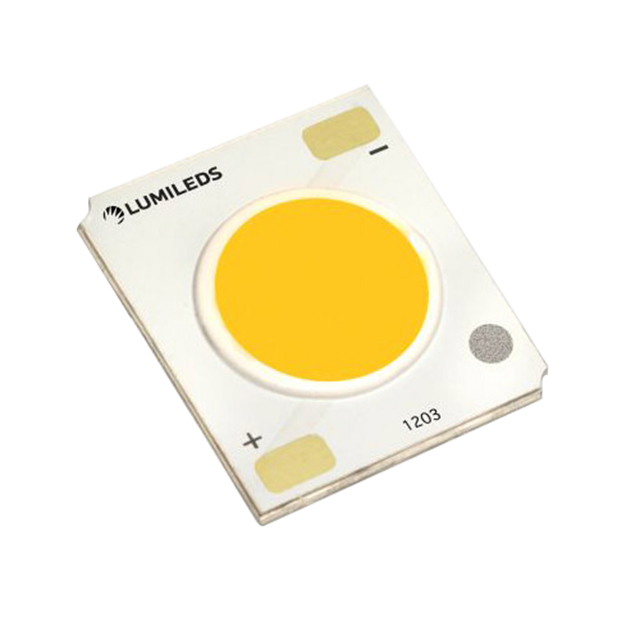

Lumileds LHC1-3570-1203	122 lm/W	115 °	1.5 mm	1300 lm	35.5 V	19 mm	16 mm	600 mA	85 °C	Chip On Board (COB)	Flat	300 mA	9 mm	3500 K	70	Warm White	Square
Lumileds LHC1-2780-1203	106 lm/W	125 °	1.5 mm	1125 lm	35.5 V	16 mm	19 mm	600 mA	85 °C	Chip On Board (COB)	Flat	300 mA	9 mm	2700 K	80	Warm White	Square	3-Step MacAdam Ellipse
