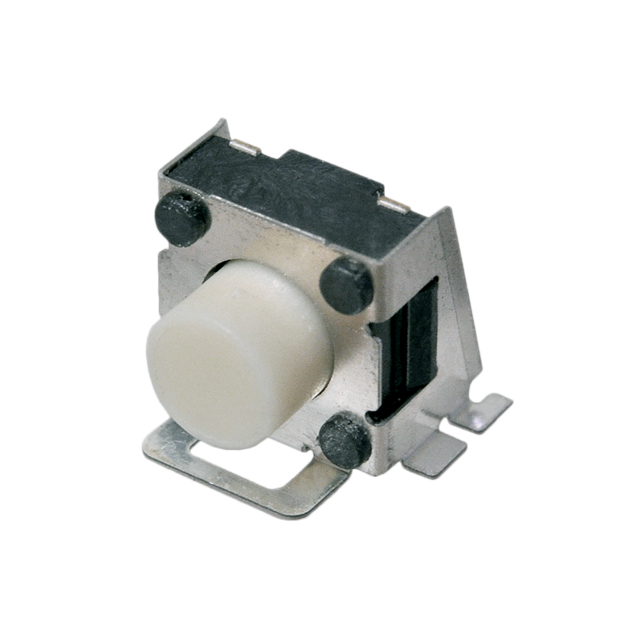

TL3360 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Switch Travel	Operating Force	Mounting Type	Actuator Orientation	Switch Function	Contact Rating @ Voltage	Illumination	Outline [x]	Outline [y]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Type	Circuit	Actuator Length, Right Angle [x]	Actuator Length, Right Angle
E-Switch TL3360DF260Q	200000 Cycles	0.15 mm	260 gf	Right Angle Surface Mount	Side Actuated	Off-Mom	0.05 A 12 VDC	Non-Illuminated	7.77 mm	6.4 mm	-25 °C	70 °C	Gull Wing	Standard	SPST-NO	8.72 mm
E-Switch TL3360DF185Q	200000 Cycles	0.15 mm	185 gf	Right Angle Surface Mount	Side Actuated	Off-Mom	0.05 A 12 VDC	Non-Illuminated	7.77 mm	6.4 mm	-25 °C	70 °C	Gull Wing	Standard	SPST-NO	8.72 mm
E-Switch TL3360CF260Q	200000 Cycles	0.15 mm	260 gf	Right Angle Surface Mount	Side Actuated	Off-Mom	0.05 A 12 VDC	Non-Illuminated	7.77 mm	6.4 mm	-25 °C	70 °C	Gull Wing	Standard	SPST-NO		8.37 mm

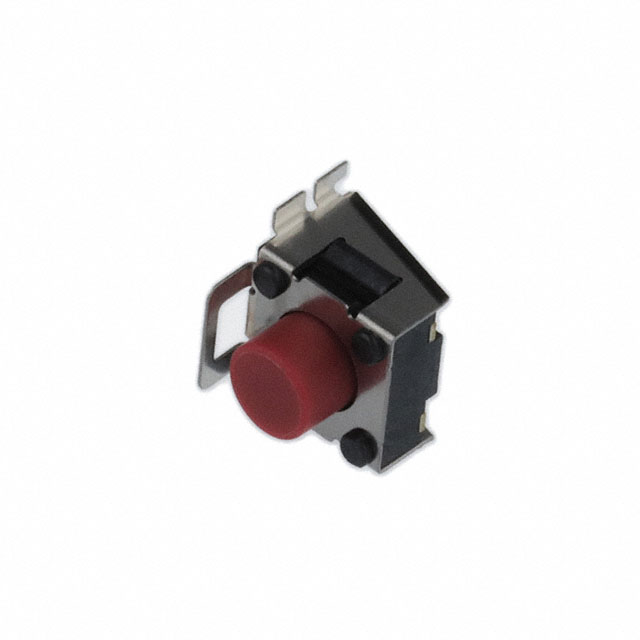

E-Switch TL3360AF260Q	200000 Cycles	0.15 mm	260 gf	Right Angle Surface Mount	Side Actuated	Off-Mom	0.05 A 12 VDC	Non-Illuminated	7.77 mm	6.4 mm	-25 °C	70 °C	Gull Wing	Standard	SPST-NO	6.67 mm

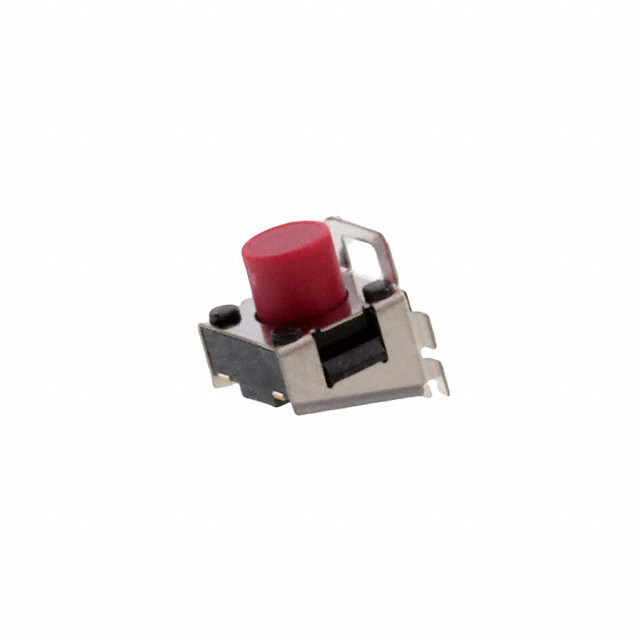

E-Switch TL3360BF260Q	200000 Cycles	0.15 mm	260 gf	Right Angle Surface Mount	Side Actuated	Off-Mom	0.05 A 12 VDC	Non-Illuminated	7.77 mm	6.4 mm	-25 °C	70 °C	Gull Wing	Standard	SPST-NO	7.17 mm
E-Switch TL3360BF185Q	200000 Cycles	0.15 mm	185 gf	Right Angle Surface Mount	Side Actuated	Off-Mom	0.05 A 12 VDC	Non-Illuminated	7.77 mm	6.4 mm	-25 °C	70 °C	Gull Wing	Standard	SPST-NO	7.17 mm
E-Switch TL3360AF185Q	200000 Cycles	0.15 mm	185 gf	Right Angle Surface Mount	Side Actuated	Off-Mom	0.05 A 12 VDC	Non-Illuminated	7.77 mm	6.4 mm	-25 °C	70 °C	Gull Wing	Standard	SPST-NO	6.67 mm
E-Switch TL3360CF185Q	200000 Cycles	0.15 mm	185 gf	Right Angle Surface Mount	Side Actuated	Off-Mom	0.05 A 12 VDC	Non-Illuminated	7.77 mm	6.4 mm	-25 °C	70 °C	Gull Wing	Standard	SPST-NO		8.37 mm
