Cre0 Series Series

Coded Rotary Switches 10 mm DIP Coded Rotary Switches 10 mm DIP Coded Rotary DIP

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Coded Rotary Switches 10 mm DIP Coded Rotary Switches 10 mm DIP Coded Rotary DIP

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Level	Circuit	Termination Style	Contact Material	Body Material	Number of Positions	Electrical Life	Mounting Type	Length	Length	Voltage Rating	Mechanical Life	Actuator Type	Pitch [x]	Pitch	Pitch [x]	Contact Finish	Height Above Board	Height Above Board	Number of Positions	Height Above Board [z]	Height Above Board [z]
Littelfuse/Commercial Vehicle Products CRE16ROTL0C	85 °C	-20 C	Raised	Hexadecimal	PC Pin	Brass	Liquid Crystal Polymer (LCP)	16	10000 Cycles	Through Hole	10 mm	0.394 in	42 VDC	10000 Steps	Rotary with Shaft	0.1 in	Full	2.54 mm	Gold
Littelfuse/Commercial Vehicle Products CRE10ROTM0A	85 °C	-20 C	Flush Recessed	BCD	PC Pin	Brass	Polyamide (PA66) Nylon 6/6		10000 Cycles	Through Hole Right Angle	10 mm	0.394 in	42 VDC	10000 Steps	Rotary for Tool	0.1 in	Full	2.54 mm	Gold	11.75 mm	0.463 in	10

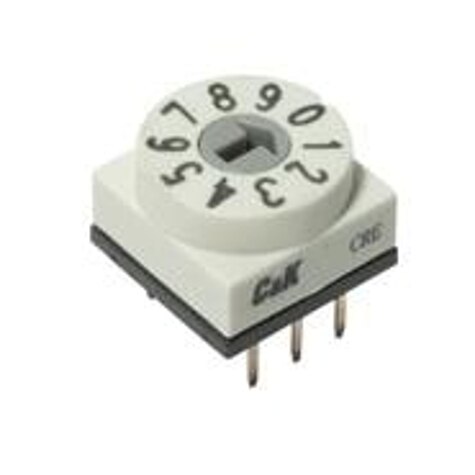

Littelfuse/Commercial Vehicle Products CRE04CRDM0C	85 °C	-20 C	Flush Recessed	BCD Complement	PC Pin	Brass	Liquid Crystal Polymer (LCP)		10000 Cycles	Through Hole	10 mm	0.394 in	42 VDC	10000 Steps	Rotary for Tool	0.1 in	Full	2.54 mm	Gold			4	0.331 in	8.4 mm
Littelfuse/Commercial Vehicle Products CRE08ROTM1C	85 °C	-20 C	Flush Recessed	BCD	PC Pin	Brass	Liquid Crystal Polymer (LCP)		10000 Cycles	Through Hole	10 mm	0.394 in	42 VDC	10000 Steps	Rotary for Tool	0.1 in	Full	2.54 mm	Gold			8	0.331 in	8.4 mm
Littelfuse/Commercial Vehicle Products CRE06COTP0S	85 °C	-20 C	Raised	BCD Complement	Gull Wing	Brass	Liquid Crystal Polymer (LCP)		10000 Cycles	Surface Mount	10 mm	0.394 in	42 VDC	10000 Steps	Rotary for Tool	0.1 in	Full	2.54 mm	Gold	7.8 mm	0.307 in	6
Littelfuse/Commercial Vehicle Products CRE06RRDM1C	85 °C	-20 C	Flush Recessed	BCD	PC Pin	Brass	Liquid Crystal Polymer (LCP)		10000 Cycles	Through Hole	10 mm	0.394 in	42 VDC	10000 Steps	Rotary for Tool	0.1 in	Full	2.54 mm	Gold			6	0.331 in	8.4 mm
Littelfuse/Commercial Vehicle Products CRE04CRDM0S	85 °C	-20 C	Flush Recessed	BCD Complement	Gull Wing	Brass	Liquid Crystal Polymer (LCP)		10000 Cycles	Surface Mount	10 mm	0.394 in	42 VDC	10000 Steps	Rotary for Tool	0.1 in	Full	2.54 mm	Gold	6.8 mm	0.268 in	4
Littelfuse/Commercial Vehicle Products CRE16RRDM1C	85 °C	-20 C	Flush Recessed	Hexadecimal	PC Pin	Brass	Liquid Crystal Polymer (LCP)	16	10000 Cycles	Through Hole	10 mm	0.394 in	42 VDC	10000 Steps	Rotary for Tool	0.1 in	Full	2.54 mm	Gold				0.331 in	8.4 mm
Littelfuse/Commercial Vehicle Products CRE10RRDM0A	85 °C	-20 C	Flush Recessed	BCD	PC Pin	Brass	Polyamide (PA66) Nylon 6/6		10000 Cycles	Through Hole Right Angle	10 mm	0.394 in	42 VDC	10000 Steps	Rotary for Tool	0.1 in	Full	2.54 mm	Gold	11.75 mm	0.463 in	10
Littelfuse/Commercial Vehicle Products CRE04CRDP1S	85 °C	-20 C	Raised	BCD Complement	Gull Wing	Brass	Liquid Crystal Polymer (LCP)		10000 Cycles	Surface Mount	10 mm	0.394 in	42 VDC	10000 Steps	Rotary for Tool	0.1 in	Full	2.54 mm	Gold	7.8 mm	0.307 in	4

Catalog

Coded Rotary Switches 10 mm DIP Coded Rotary Switches 10 mm DIP Coded Rotary DIP

Key Features

• New designs with different actuators

• Process sealed – withstands soldering and cleaning

• Thru-hole and surface mount models

Description

C&K’s CRE series 10mm DIP coded rotary switch is the newest DIP. It has new design with different actuators and frontal surface for end possibilities of product selection. It's fully processed sealed and hence can withstands soldering and cleaning.
