TPA3111D1-Q1 Series

Automotive, 10-W, 1-ch, 8- to 26-V supply analog input Class-D audio amplifier w/ SpeakerGuard™

Catalog

Automotive, 10-W, 1-ch, 8- to 26-V supply analog input Class-D audio amplifier w/ SpeakerGuard™

Part	Max Output Power x Channels @ Load	Package / Case [custom]	Package / Case	Package / Case [custom]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Supplier Device Package	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Qualification	Grade	Contents	Supplied Contents	Board Type
Texas Instruments TPA3111D1PWPR	1 8 Ohm 10 W	4.4 mm	28-PowerTSSOP	0.173 "	1-Channel (Mono)	85 °C	-40 °C	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	Surface Mount	28-HTSSOP	Class D	26 V	8 V
Texas Instruments TPA3111D1QPWPRQ1	1 8 Ohm 10 W	4.4 mm	28-PowerTSSOP	0.173 "	1-Channel (Mono)	125 °C	-40 °C	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	Surface Mount	28-HTSSOP	Class D	26 V	8 V	AEC-Q100	Automotive

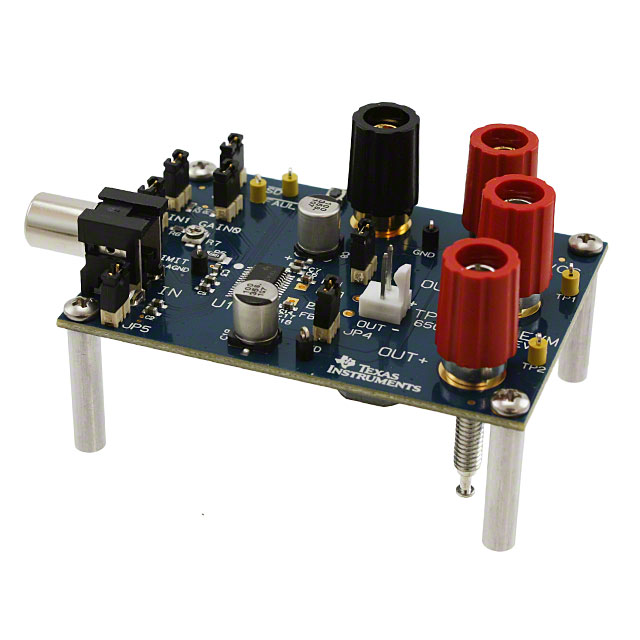

Texas Instruments TPA3111D1EVM	1 8 Ohm 10 W				1-Channel (Mono)							26 V	8 V			Board(s)	Board(s)	Fully Populated
Texas Instruments TPA3111D1PWP	1 8 Ohm 10 W	4.4 mm	28-PowerTSSOP	0.173 "	1-Channel (Mono)	85 °C	-40 °C	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	Surface Mount	28-HTSSOP	Class D	26 V	8 V

Catalog

Automotive, 10-W, 1-ch, 8- to 26-V supply analog input Class-D audio amplifier w/ SpeakerGuard™

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified with the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C210-W into an 8-Ω Load at 10% THD+N from a 12-V Supply7-W into a 4-Ω Load at 10% THD+N from an 8-V Supply94% Efficient Class-D Operation into 8-Ω Load Eliminates Need for Heat SinksWide Supply Voltage Range Allows Operation from 8 to 26 VFilter-Free OperationSpeakerGuard Speaker Protection Includes Adjustable Power Limiter Plus DC ProtectionFlow Through Pin Out Facilitates Easy Board LayoutRobust Pin-to-Pin Short-Circuit Protection and Thermal Protection with Auto-Recovery OptionExcellent THD+N and Pop Free PerformanceFour Selectable Fixed Gain SettingsDifferential InputsAll trademarks are the property of their respective owners.Qualified for Automotive ApplicationsAEC-Q100 Qualified with the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C210-W into an 8-Ω Load at 10% THD+N from a 12-V Supply7-W into a 4-Ω Load at 10% THD+N from an 8-V Supply94% Efficient Class-D Operation into 8-Ω Load Eliminates Need for Heat SinksWide Supply Voltage Range Allows Operation from 8 to 26 VFilter-Free OperationSpeakerGuard Speaker Protection Includes Adjustable Power Limiter Plus DC ProtectionFlow Through Pin Out Facilitates Easy Board LayoutRobust Pin-to-Pin Short-Circuit Protection and Thermal Protection with Auto-Recovery OptionExcellent THD+N and Pop Free PerformanceFour Selectable Fixed Gain SettingsDifferential InputsAll trademarks are the property of their respective owners.

Description

The TPA3111D1-Q1 device is a 10-W efficient, Class-D audio power amplifier for driving a bridge tied speaker. Advanced EMI suppression technology enables the use of inexpensive ferrite bead filters at the outputs while meeting EMC requirements. SpeakerGuard™ protection circuitry includes an adjustable power limiter and a DC detection circuit. The adjustable power limiter allows the user to set a virtual voltage rail lower than the chip supply to limit the amount of current through the speaker. The DC-detect circuit measures the frequency and amplitude of the PWM signal and shuts off the output stage if the input capacitors are damaged or shorts exist on the inputs. The TPA3111D1-Q1 device can drive a mono speaker as low as 4 Ω. The high efficiency of the TPA3111D1-Q1 device, > 90%, eliminates the need for an external heat sink when playing music. The outputs are fully protected against shorts to GND, VCC, and output-to-output. The short-circuit protection and thermal protection includes an auto-recovery feature. The TPA3111D1-Q1 device is a 10-W efficient, Class-D audio power amplifier for driving a bridge tied speaker. Advanced EMI suppression technology enables the use of inexpensive ferrite bead filters at the outputs while meeting EMC requirements. SpeakerGuard™ protection circuitry includes an adjustable power limiter and a DC detection circuit. The adjustable power limiter allows the user to set a virtual voltage rail lower than the chip supply to limit the amount of current through the speaker. The DC-detect circuit measures the frequency and amplitude of the PWM signal and shuts off the output stage if the input capacitors are damaged or shorts exist on the inputs. The TPA3111D1-Q1 device can drive a mono speaker as low as 4 Ω. The high efficiency of the TPA3111D1-Q1 device, > 90%, eliminates the need for an external heat sink when playing music. The outputs are fully protected against shorts to GND, VCC, and output-to-output. The short-circuit protection and thermal protection includes an auto-recovery feature.
