6401 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

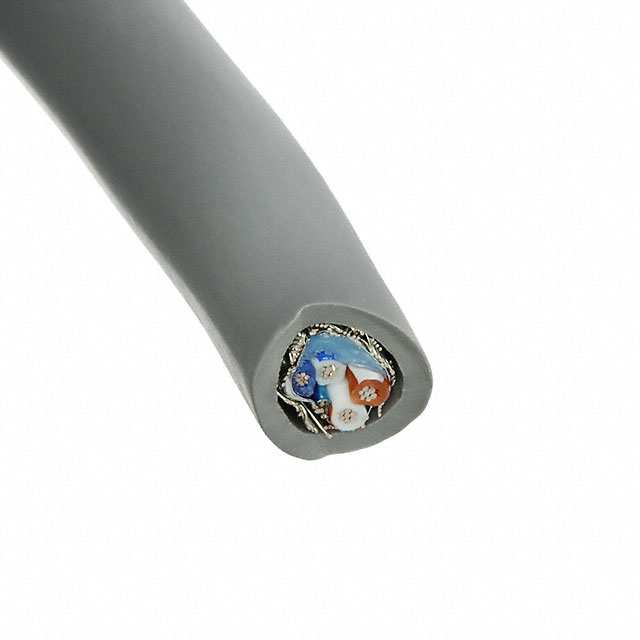

MULTI-PAIR 4COND 24AWG
| Part | Shield Material | Shield Coverage | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Jacket Color | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Cable Type | Voltage | Conductor Material | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | UL Style 2919 | 0.035 in | 0.889 mm | Drain Wire | 304.8 m | 1000 ft | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Slate | 4 | 0.28 in | 7.11 mm | Braid Foil | Multi-Pair | 300 VDC | Copper Tinned | 24 AWG | 7 | 32 AWG | Polyethylene (PE) | ||
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | UL Style 2919 | 0.035 in | 0.889 mm | Drain Wire | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Slate | 4 | 0.28 in | 7.11 mm | Braid Foil | Multi-Pair | 300 VDC | Copper Tinned | 24 AWG | 7 | 32 AWG | Polyethylene (PE) | 100 ft | 30.5 m |
