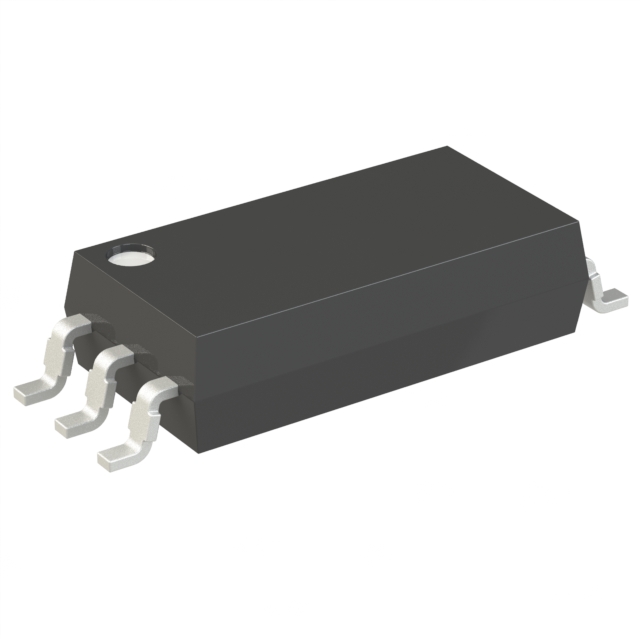

TLP5772 Series

Manufacturer: Toshiba Semiconductor and Storage

Catalog

GATE DRIVE COUPLER; 2.5A; HIGH T

Part	Package / Case	Mounting Type	Common Mode Transient Immunity (Min) [Min]	Supplier Device Package	Inputs - Side 1/Side 2 [custom]	Number of Channels [custom]	Voltage - Forward (Vf) (Typ)	Output Type	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Propagation Delay tpLH / tpHL (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Rise / Fall Time (Typ)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]
Toshiba Semiconductor and Storage TLP5772H(TP,E	6-SOIC (0.295" 7.50mm Width)	Surface Mount	35 kV/µs	6-SO	1	1	1.55 V	Push-Pull Totem Pole	DC	125 °C	-40 C	150 ns	8 mA	15 VDC	30 VDC	25 ns 56 ns
Toshiba Semiconductor and Storage TLP5772H(D4,E	6-SOIC (0.295" 7.50mm Width)	Surface Mount	35 kV/µs	6-SO	1	1	1.65 V	Push-Pull Totem Pole	DC	125 °C	-40 C	150 ns	8 mA	10 VDC	30 VDC	25 ns 56 ns
Toshiba Semiconductor and Storage TLP5772H(TP4,E	6-SOIC (0.295" 7.50mm Width)	Surface Mount	35 kV/µs	6-SO	1	1	1.65 V	Push-Pull Totem Pole	DC	125 °C	-40 C	150 ns	8 mA	10 VDC	30 VDC	25 ns 56 ns
Toshiba Semiconductor and Storage TLP5772H(E	6-SOIC (0.295" 7.50mm Width)	Surface Mount	35 kV/µs	6-SO	1	1	1.4 V	Push-Pull Totem Pole	DC	125 °C	-40 C	150 ns	8 mA	4.5 V	5.5 V	25 ns 56 ns
Toshiba Semiconductor and Storage TLP5772H(D4TP4,E	6-SOIC (0.295" 7.50mm Width)	Surface Mount	35 kV/µs	6-SO	1	1	1.55 V	Push-Pull Totem Pole	DC	125 °C	-40 C	150 ns	8 mA	15 VDC	30 VDC	25 ns 56 ns
Toshiba Semiconductor and Storage TLP5772(TP,E	6-SOIC (0.295" 7.50mm Width)	Surface Mount	35 kV/µs	6-SO	1	1	1.65 V	Push-Pull Totem Pole	DC	110 °C	-40 C	150 ns	8 mA	10 VDC	30 VDC		8 ns	15 ns
Toshiba Semiconductor and Storage TLP5772(D4-TP,E	6-SOIC (0.295" 7.50mm Width)	Surface Mount	35 kV/µs	6-SO	1	1	1.65 V	Push-Pull Totem Pole	DC	110 °C	-40 C	150 ns	8 mA	10 VDC	30 VDC		8 ns	15 ns
Toshiba Semiconductor and Storage TLP5772H(D4LF4,E	6-SOIC (0.295" 7.50mm Width)	Surface Mount	35 kV/µs	6-SO	1	1	1.55 V	Push-Pull Totem Pole	DC	125 °C	-40 C	150 ns	8 mA	15 VDC	30 VDC	25 ns 56 ns
Toshiba Semiconductor and Storage TLP5772H(LF4,E	6-SOIC (0.295" 7.50mm Width)	Surface Mount	35 kV/µs	6-SO	1	1	1.55 V	Push-Pull Totem Pole	DC	125 °C	-40 C	150 ns	8 mA	15 VDC	30 VDC	25 ns 56 ns
Toshiba Semiconductor and Storage TLP5772H(D4-TP,E	6-SOIC (0.295" 7.50mm Width)	Surface Mount	35 kV/µs	6-SO	1	1	1.55 V	Push-Pull Totem Pole	DC	125 °C	-40 C	150 ns	8 mA	15 VDC	30 VDC	25 ns 56 ns
