MS110 Series

Catalog

RF SHIELD 0.433"X0.433" SOLDER

Part	Width - Overall	Width - Overall	Length - Overall	Length - Overall	Height - Overall [z]	Height - Overall [z]	Type	Mounting Type	Height - Overall [z]	Ventilation	Width - Overall [x]	Width - Overall [x]	Length - Overall [x]	Length - Overall [x]

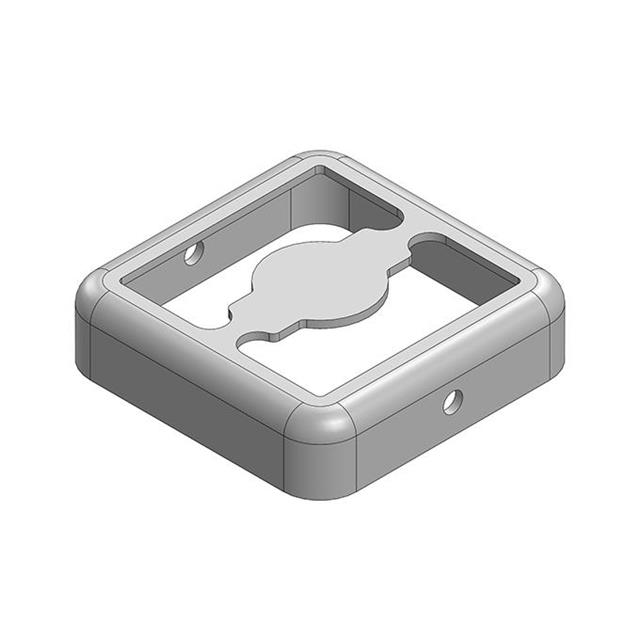

Masach Tech Ltd. MS110-10F-NS	0.433 "	11 mm	0.433 in	11 mm	0.11 in	2.8 mm	Frame	Solder
Masach Tech Ltd. MS110-20F	0.433 "	11 mm	0.433 in	11 mm	6 mm		Frame	Solder	0.236 in

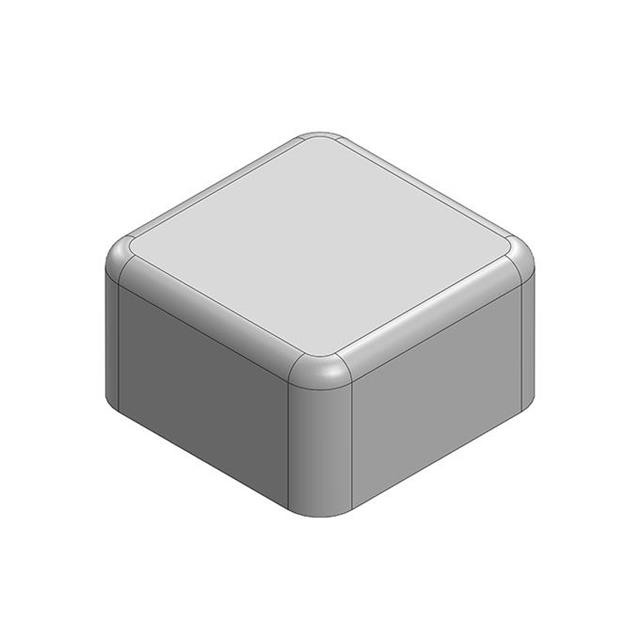

Masach Tech Ltd. MS110-20S-NS	0.433 "	11 mm	0.433 in	11 mm	6 mm		Shield 1-Piece	Solder	0.236 in	Non-Vented

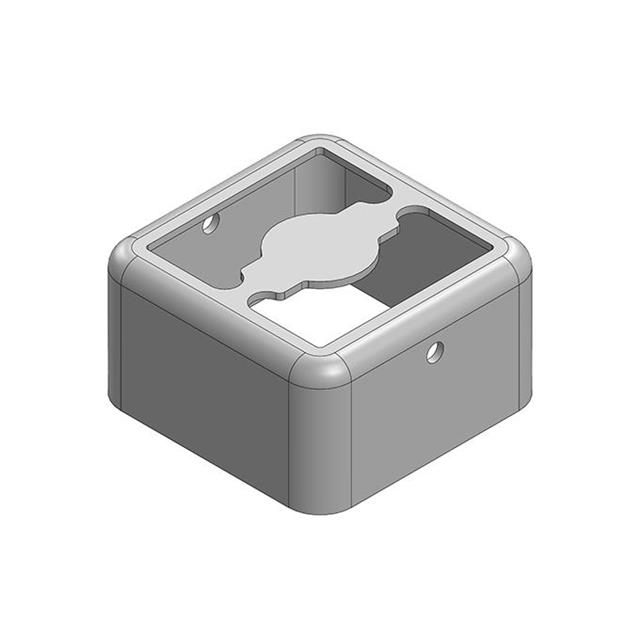

Masach Tech Ltd. MS110-20F-NS	0.433 "	11 mm	0.433 in	11 mm	6 mm		Frame	Solder	0.236 in	Non-Vented
Masach Tech Ltd. MS110-10C-NS					0.11 in	2.8 mm	Cover	Snap Fit		Non-Vented	11.6 mm	0.457 in	0.457 in	11.6 mm
Masach Tech Ltd. MS110-20C-NS					0.11 in	2.8 mm	Cover	Snap Fit		Non-Vented	11.6 mm	0.457 in	0.457 in	11.6 mm

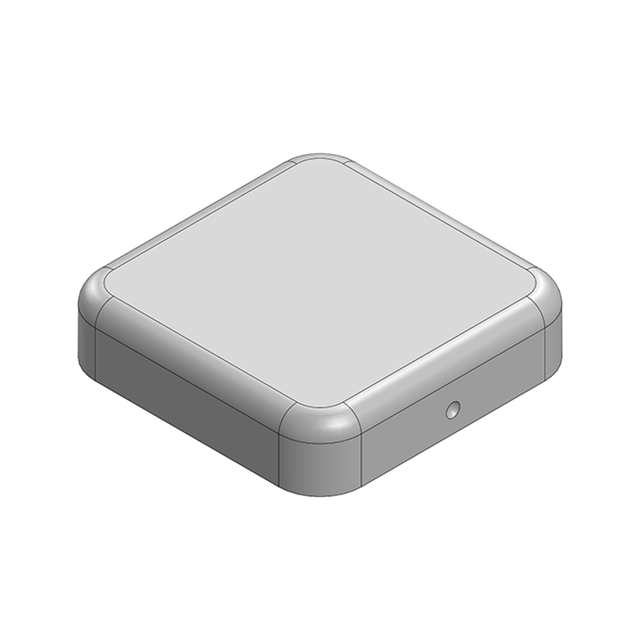

Masach Tech Ltd. MS110-10C					0.11 in	2.8 mm	Cover	Snap Fit		Non-Vented	11.6 mm	0.457 in	0.457 in	11.6 mm
Masach Tech Ltd. MS110-20C					0.11 in	2.8 mm	Cover	Snap Fit		Non-Vented	11.6 mm	0.457 in	0.457 in	11.6 mm

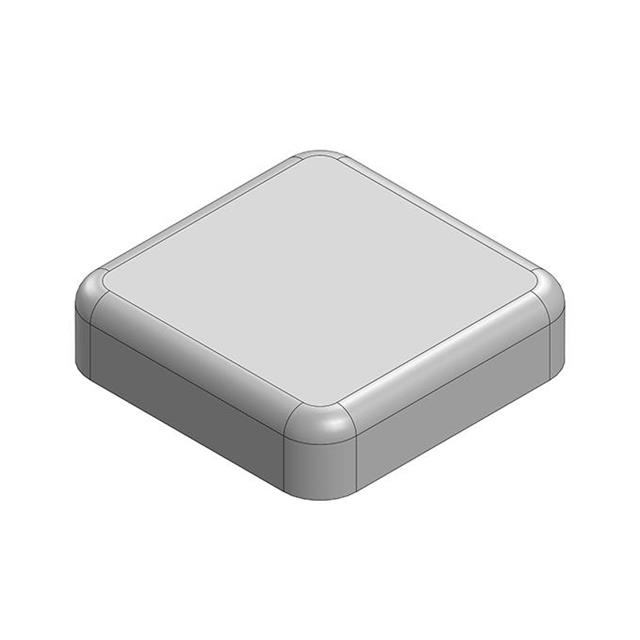

Masach Tech Ltd. MS110-10S-NS	0.433 "	11 mm	0.433 in	11 mm	0.11 in	2.8 mm	Shield 1-Piece	Solder		Non-Vented
