MPH2 Series
Manufacturer: Adam Tech
Beta
⌘K

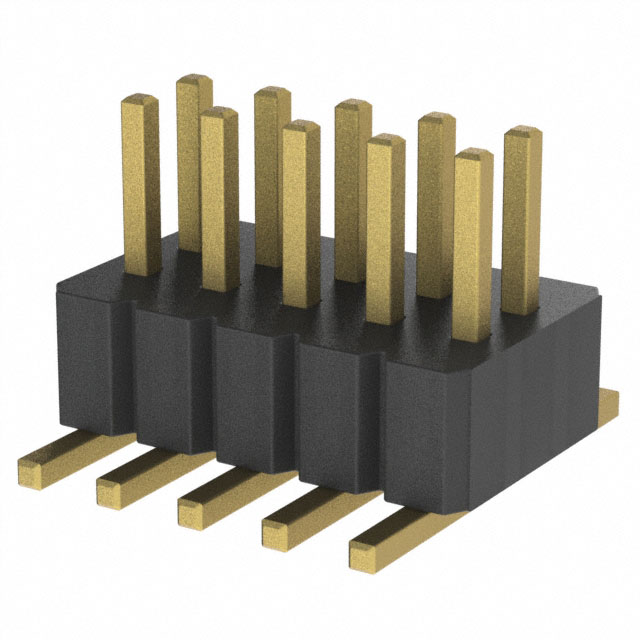

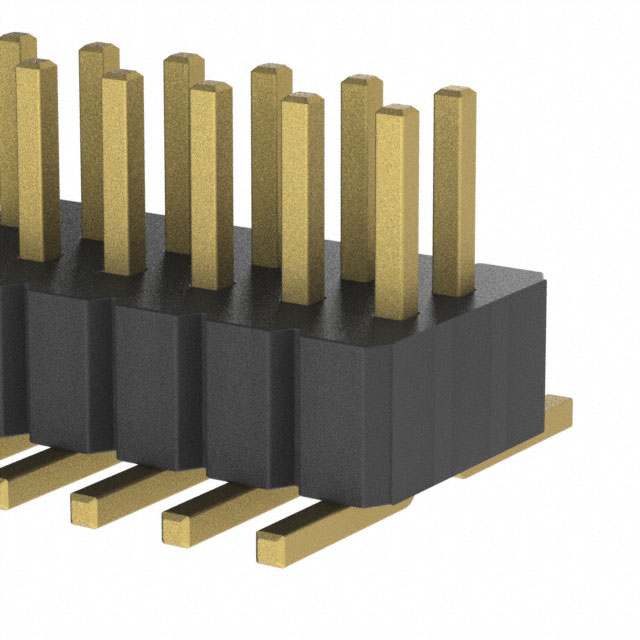

PIN HEADER 10P 1.00MM PITCH SMT
| Part | Contact Finish Thickness - Post | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Connector Type | Insulation Color | Insulation Height | Insulation Height | Number of Positions | Contact Type | Number of Positions Loaded | Number of Rows [custom] | Termination | Fastening Type | Contact Finish - Mating | Mounting Type | Contact Length - Mating | Contact Length - Mating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating | Insulation Material | Voltage Rating | Shrouding | Contact Shape | Contact Finish Thickness - Mating | Contact Finish - Post | Overall Contact Length | Overall Contact Length | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Flash | 0.039 in | 1 mm | UL94 V-0 | Header | Black | 0.059 in | 1.5 mm | 10 | Male Pin | All | 2 | Solder | Push-Pull | Gold | Surface Mount | 0.075 in | 1.9 mm | Phosphor Bronze | -40 C | 105 ░C | 1 mm | 0.039 in | Nylon 6T Polyamide (PA6T) | 250 VAC | Unshrouded | Square | Flash | Gold | ||||
 Adam Tech | Flash | 0.039 in | 1 mm | UL94 V-0 | Header | Black | 0.059 in | 1.5 mm | 10 | Male Pin | All | 2 | Solder | Push-Pull | Gold | Through Hole | 0.075 in | 1.9 mm | Brass | -40 C | 105 ░C | 1 mm | 0.039 in | Thermoplastic | 250 VAC | Unshrouded | Square | Flash | Gold | 0.217 " | 5.51 mm | 0.083 in | 2.11 mm |
 Adam Tech | Flash | 0.039 in | 1 mm | UL94 V-0 | Header | Black | 0.059 in | 1.5 mm | 12 | Male Pin | All | 2 | Solder | Push-Pull | Gold | Through Hole | 0.075 in | 1.9 mm | Brass | -40 C | 105 ░C | 1 mm | 0.039 in | Thermoplastic | 250 VAC | Unshrouded | Square | Flash | Gold | 0.217 " | 5.51 mm | 0.083 in | 2.11 mm |
Adam Tech | Flash | 0.039 in | 1 mm | UL94 V-0 | Header | Black | 0.059 in | 1.5 mm | 14 | Male Pin | All | 2 | Solder | Push-Pull | Gold | Through Hole | 0.075 in | 1.9 mm | Brass | -40 C | 105 ░C | 1 mm | 0.039 in | Thermoplastic | 250 VAC | Unshrouded | Square | Flash | Gold | 0.217 " | 5.51 mm | 0.083 in | 2.11 mm |
 Adam Tech | Flash | 0.039 in | 1 mm | UL94 V-0 | Header | Black | 0.059 in | 1.5 mm | 14 | Male Pin | All | 2 | Solder | Push-Pull | Gold | Surface Mount | 0.075 in | 1.9 mm | Phosphor Bronze | -40 C | 105 ░C | 1 mm | 0.039 in | Nylon 6T Polyamide (PA6T) | 250 VAC | Unshrouded | Square | Flash | Gold | ||||
 Adam Tech | Flash | 0.039 in | 1 mm | UL94 V-0 | Header | Black | 0.059 in | 1.5 mm | 20 | Male Pin | All | 2 | Solder | Push-Pull | Gold | Through Hole | 0.075 in | 1.9 mm | Brass | -40 C | 105 ░C | 1 mm | 0.039 in | Thermoplastic | 250 VAC | Unshrouded | Square | Flash | Gold | 0.217 " | 5.51 mm | 0.083 in | 2.11 mm |
Adam Tech | Flash | 0.039 in | 1 mm | UL94 V-0 | Header | Black | 0.059 in | 1.5 mm | 16 | Male Pin | All | 2 | Solder | Push-Pull | Gold | Surface Mount | 0.075 in | 1.9 mm | Phosphor Bronze | -40 C | 105 ░C | 1 mm | 0.039 in | Nylon 6T Polyamide (PA6T) | 250 VAC | Unshrouded | Square | Flash | Gold |
