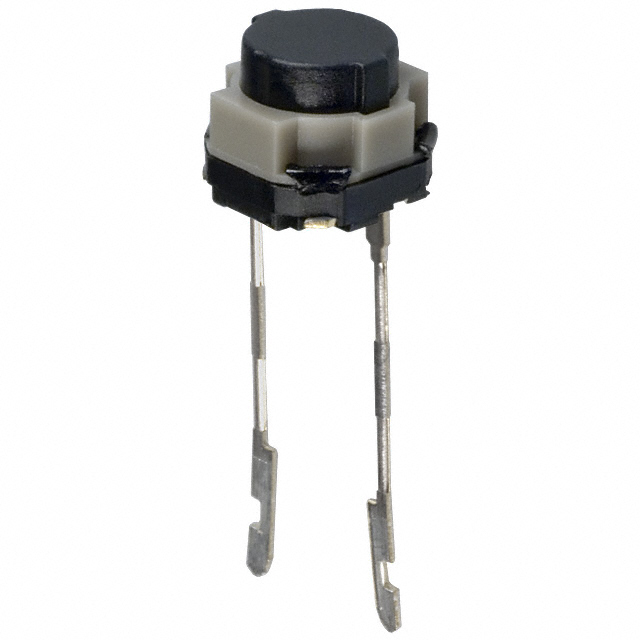

EVQ-PV Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Function | Switch Travel | Actuator Orientation | Mounting Type | Actuator Type | Illumination | Mechanical Life | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Contact Rating @ Voltage | Outline [x] | Outline [y] | Actuator Height off PCB, Vertical | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Off-Mom | 1.3 mm | Top Actuated | Through Hole | Standard | Non-Illuminated | 100000 Cycles | SPST-NO | -30 ░C | 85 °C | PC Pin | 0.05 A 12 VDC | 6.1 mm | 6 mm | 5 mm | |
Panasonic Industrial Automation Sales | Off-Mom | 1.3 mm | Top Actuated | Through Hole | Standard | Non-Illuminated | 30000 Steps | SPST-NO | -30 ░C | 85 °C | PC Pin | 0.05 A 12 VDC | 6.1 mm | 6 mm | 5 mm | 350 gf |
