TZ03Z100 Series

Catalog

CAP TRIMMER 2.7-10PF 100V TH

Part	Mounting Type	Capacitance Range [Min]	Capacitance Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Adjustment Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Q @ Freq	Features

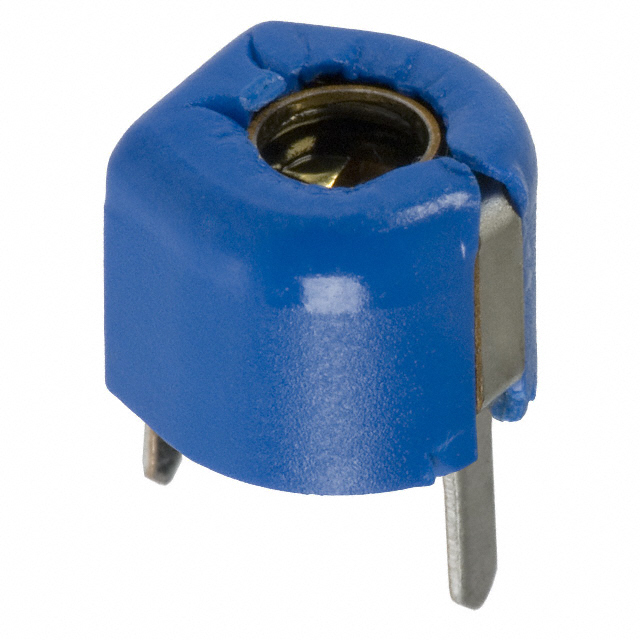

Murata Power Solutions Inc. TZ03Z100E169B00	Through Hole	2.7 pF	10 pF	-25 °C	85 °C	100 V	5.3 mm	0.209 in	Ceramic	Bottom	6 mm	0.236 in	1 MHz 500	General Purpose
