NTNS3193NZ Series

Single N-Channel Small Signal MOSFET 20V, 224mA, 1.4Ω

Catalog

Single N-Channel Small Signal MOSFET 20V, 224mA, 1.4Ω

Part	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds	Drive Voltage (Max Rds On, Min Rds On)	Package / Case	FET Type	Power Dissipation (Max)	Rds On (Max) @ Id, Vgs [Max]	Vgs(th) (Max) @ Id	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	Technology	Drain to Source Voltage (Vdss)
ON Semiconductor NTNS3193NZT5G	8 V	15.8 pF	1.5 V 4.5 V	3-XFLGA	N-Channel	120 mW	1.4 Ohm	1 V	3-XLLGA (0.62x0.62)	0.7 nC	Surface Mount	-55 °C	150 °C	224 mA	MOSFET (Metal Oxide)	20 V

Single N-Channel Small Signal MOSFET 20V, 224mA, 1.4Ω

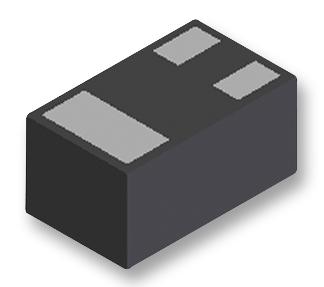

• Ultra Small and Thin Package (0.62 x 0.62 x 0.4 mm)

• Low RDS(on)Solution in 0.62 x 0.62 mm Package

• 1.5 V Gate Voltage Rating

• RoHS Compliant

Small Signal MOSFET20 V, 224 mA, Single N−Channel,0.62 x 0.62 x 0.4 mm XLLGA3 Package
