MMBT5401 Series

Catalog

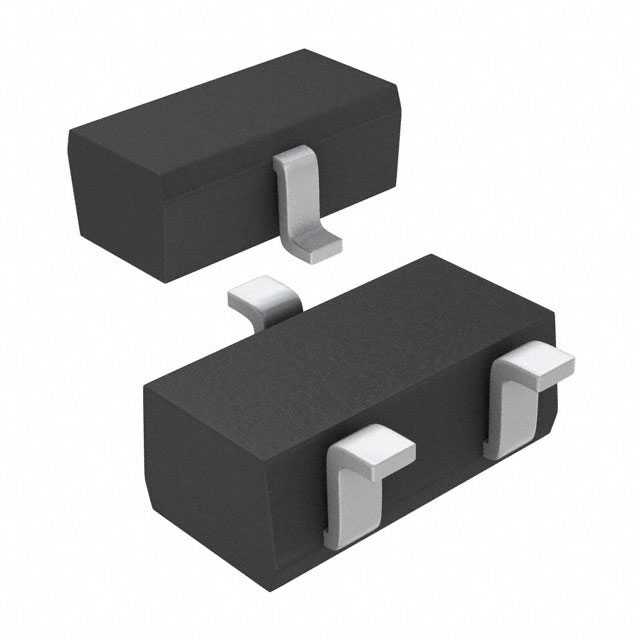

SOT-23, TRANSISTOR

Part	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Mounting Type	Current - Collector (Ic) (Max) [Max]	Frequency - Transition	Voltage - Collector Emitter Breakdown (Max) [Max]	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic	Current - Collector Cutoff (Max) [Max]	Grade	Qualification
Panjit International Inc. MMBT5401_R1_00001	SC-59 SOT-23-3 TO-236-3	SOT-23	150 °C	-55 °C	225 mW	Surface Mount	600 mA	300 MHz	150 V	PNP	60	500 mV	50 nA
Panjit International Inc. MMBT5401-AU_R1_000A1	SC-59 SOT-23-3 TO-236-3	SOT-23	150 °C	-55 °C	225 mW	Surface Mount	600 mA	300 MHz	150 V	PNP	60	500 mV	50 nA	Automotive	AEC-Q101
