PSA15A Series

Catalog

AC/DC WALL MOUNT ADAPTER 12V 15W

Part	Cord Length	Cord Length	Weight	Weight	Region Utilized	Input Type	Input Connector	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Applications	Power (Watts)	Efficiency	Voltage - Output	Output Connector [x]	Output Connector [diameter]	Output Connector	Form	Approval Agency	No Load Power Consumption	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max)
Phihong USA PSA15A-120P6	1.5 m	59 in	145.15 g	0.32 lb	North America	Fixed Blade	NEMA 1-15P	1.23 in	50 mm	31.2 mm	1.97 "	2.81 "	71.5 mm	264 VAC	90 VAC	1.25 A	ITE (Commercial)	15 W	Level VI	12 V	10 mm	2.1 mm 5.5 mm	Barrel Plug	Wall Mount	cULus	100 mW	Positive Center	40 °C	0 °C
Phihong USA PSA15A-240P6	1.5 m	59 in	145.15 g	0.32 lb	North America	Fixed Blade	NEMA 1-15P	1.23 in	50 mm	31.2 mm	1.97 "	2.81 "	71.5 mm	264 VAC	90 VAC	650 mA	ITE (Commercial)	16 W	Level VI	24 V	10 mm	2.1 mm 5.5 mm	Barrel Plug	Wall Mount	cULus	100 mW	Positive Center	40 °C	0 °C
Phihong USA PSA15A-150P6	1.5 m	59 in	145.15 g	0.32 lb	North America	Fixed Blade	NEMA 1-15P	1.23 in	50 mm	31.2 mm	1.97 "	2.81 "	71.5 mm	264 VAC	90 VAC	1 A	ITE (Commercial)	15 W	Level VI	15 V	10 mm	2.1 mm 5.5 mm	Barrel Plug	Wall Mount	cULus	100 mW	Positive Center	40 °C	0 °C
Phihong USA PSA15A-480P6	1.5 m	59 in	145.15 g	0.32 lb	North America	Fixed Blade	NEMA 1-15P	1.23 in	50 mm	31.2 mm	1.97 "	2.81 "	71.5 mm	264 VAC	90 VAC	310 mA	ITE (Commercial)	15 W	Level VI	48 V	10 mm	2.1 mm 5.5 mm	Barrel Plug	Wall Mount	cULus	100 mW	Positive Center	40 °C	0 °C

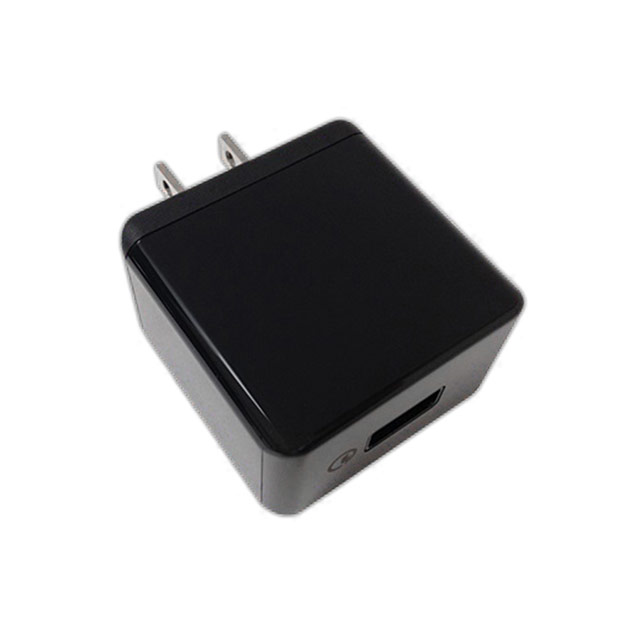

Phihong USA PSA15A-308Q					North America	Fixed Blade	NEMA 1-15P		27 mm	45 mm			45 mm	264 VAC	90 VAC		ITE (Commercial)	15 W	Level VI	5 V 9 V 12 V			USB A Receptacle	Wall Mount	CB CE cUL UL	75 mW		45 °C	-5 °C	1.77 in	1.06 in	1.77 in	1.25 A 1.67 A
