8459 Series
Manufacturer: Belden Inc.
Beta
⌘K

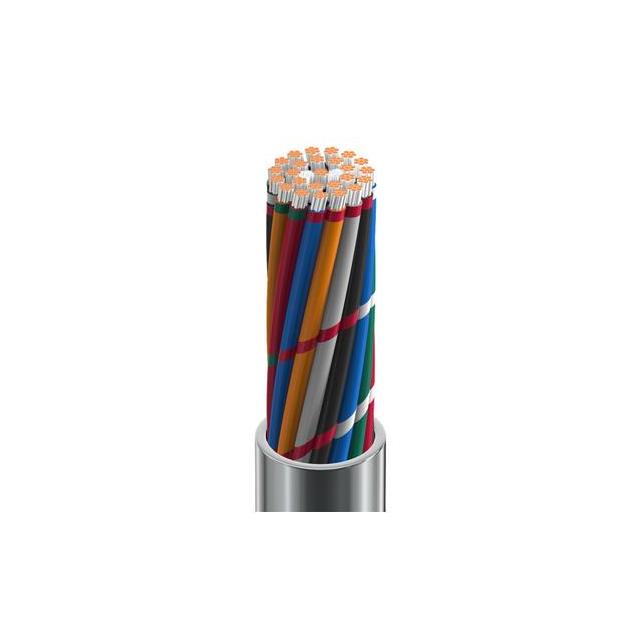

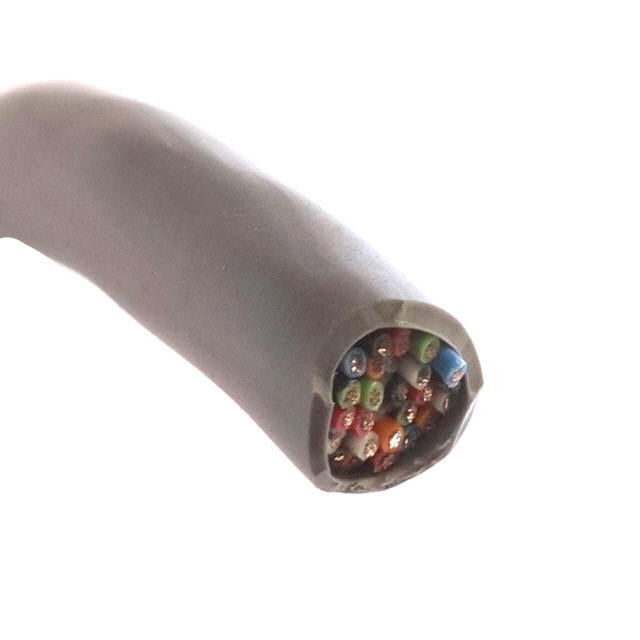

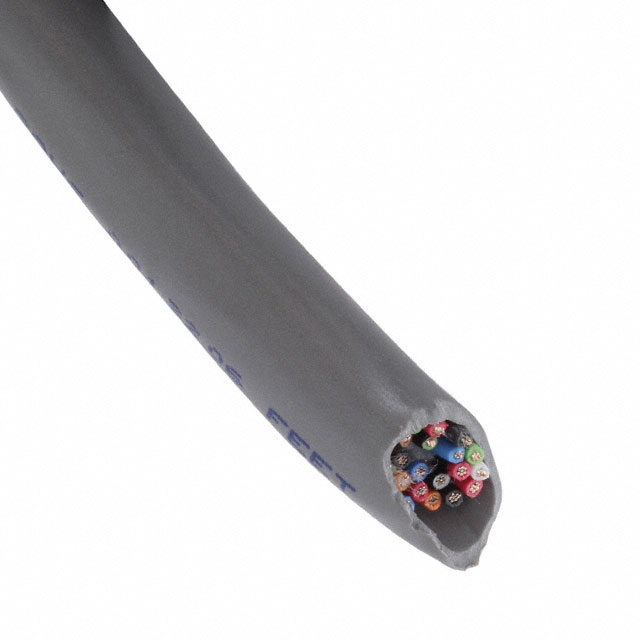

CABLE 25COND 22AWG CHROME
| Part | Jacket Color | Wire Gauge | Length | Length | Cable Type | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Number of Conductors [custom] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Chrome | 22 AWG | 152.4 m | 500 ft | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 1.016 mm | 0.04 in | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | 30 AWG | 7 | Copper Tinned | 0.387 in | 9.83 mm | 80 °C | -20 ░C | UL Style 2576 | 25 | ||
 Belden Inc. | Chrome | 22 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 1.016 mm | 0.04 in | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | 30 AWG | 7 | Copper Tinned | 0.387 in | 9.83 mm | 80 °C | -20 ░C | UL Style 2576 | 25 | ||||
 Belden Inc. | Chrome | 22 AWG | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 1.016 mm | 0.04 in | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | 30 AWG | 7 | Copper Tinned | 0.387 in | 9.83 mm | 80 °C | -20 ░C | UL Style 2576 | 25 | 100 ft | 30.5 m | ||
Belden Inc. | Chrome | 22 AWG | 304.8 m | 1000 ft | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 1.016 mm | 0.04 in | Poly-Vinyl Chloride (PVC) | Audio Control Instrumentation | 30 AWG | 7 | Copper Tinned | 0.387 in | 9.83 mm | 80 °C | -20 ░C | UL Style 2576 | 25 |
