F Series Series

Pushbutton Switches

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Pushbutton Switches

Part	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Mechanical Life	Voltage Rating - DC	Electrical Life	Voltage Rating - AC	Color - Actuator/Cap	Termination Style	Mounting Type	Current Rating (Amps)	Circuit	Type	Actuator Type	Angle of Throw	Depth Behind Panel [z]	Number of Decks [custom]	Contact Material	Circuit per Deck	Index Stops	Number of Poles per Deck	Contact Timing	Actuator Length	Features	Contact Finish	Panel Cutout Dimensions [diameter]	Actuator Type [diameter]	Actuator Length [x]

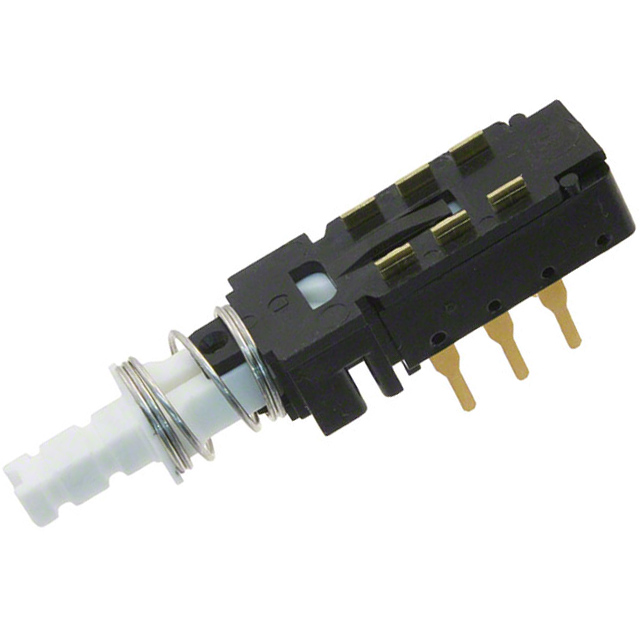

Littelfuse/Commercial Vehicle Products F4UEE AU	On-On	-40 °C	70 °C	No Marking	100000 Cycles	30 V	100000 Cycles	50 V	White	PC Pin Solder Lug	Through Hole Right Angle	10 mA 40 mA	4PDT	Standard	Plunger for Cap
Littelfuse/Commercial Vehicle Products F4UOA	On-Mom	-40 °C	70 °C	No Marking	100000 Cycles	30 V	100000 Cycles	125 V	White	PC Pin Solder Lug	Through Hole Right Angle	500 mA	4PDT	Standard	Plunger for Cap
Littelfuse/Commercial Vehicle Products F8UEE01A	On-On	-40 °C	70 °C	No Marking	100000 Cycles	30 V	100000 Cycles	125 V	White	PC Pin	Through Hole Right Angle	500 mA	8PDT	Standard	Plunger for Cap
Littelfuse/Commercial Vehicle Products F10315RN02BE						20 V		20 V		PC Pin	Through Hole	0.4 VA			Screwdriver Slot	45 °	12.45 mm	1	Copper	Adjacent Contact SP3T	Fixed	1	Non-Shorting	Flush	Epoxy Sealed Terminals No Common Pin	Gold
Littelfuse/Commercial Vehicle Products FA0508RS02Q						28 V		125 V		PC Pin	Panel Mount Through Hole	4 A			Flatted	90 °	12.45 mm	1	Copper	Adjacent Contact SP3T	Fixed	1	Non-Shorting		No Common Pin	Silver	8.08 mm	4.75 mm	14.86 mm
Littelfuse/Commercial Vehicle Products F6UOATBAU	On-Mom	-40 °C	70 °C	No Marking	100000 Cycles	30 V	100000 Cycles	50 V	White	PC Pin Solder Lug	Through Hole Right Angle	10 mA 40 mA	6PDT	Standard	Plunger for Cap										RTV Adhesive Sealant on Terminals
Littelfuse/Commercial Vehicle Products F8UEE	On-On	-40 °C	70 °C	No Marking	100000 Cycles	30 V	100000 Cycles	125 V	White	PC Pin Solder Lug	Through Hole Right Angle	500 mA	8PDT	Standard	Plunger for Cap
Littelfuse/Commercial Vehicle Products F2UOA01AAU	On-Mom	-40 °C	70 °C	No Marking	100000 Cycles	30 V	100000 Cycles	50 V	White	PC Pin	Through Hole Right Angle	10 mA 40 mA	DPDT	Standard	Plunger for Cap
Littelfuse/Commercial Vehicle Products F2UOAAU	On-Mom	-40 °C	70 °C	No Marking	100000 Cycles	30 V	100000 Cycles	50 V	White	PC Pin Solder Lug	Through Hole Right Angle	10 mA 40 mA	DPDT	Standard	Plunger for Cap
Littelfuse/Commercial Vehicle Products F8UOA	On-Mom	-40 °C	70 °C	No Marking	100000 Cycles	30 V	100000 Cycles	125 V	White	PC Pin Solder Lug	Through Hole Right Angle	500 mA	8PDT	Standard	Plunger for Cap

Catalog

Pushbutton Switches

Key Features

• Various mounting & switch ganging configurations

• Various contact terminals

• Up to 10 poles per module

Description

Innovative digital equipment and medical equipment interfaces utilize F series pushbutton switches from C&K because the variety of possible mounting and switch ganging configurations can fit almost any design. F series switches are RoHS compliant, have various contact terminals and are engineered with up to 10 poles per module.
