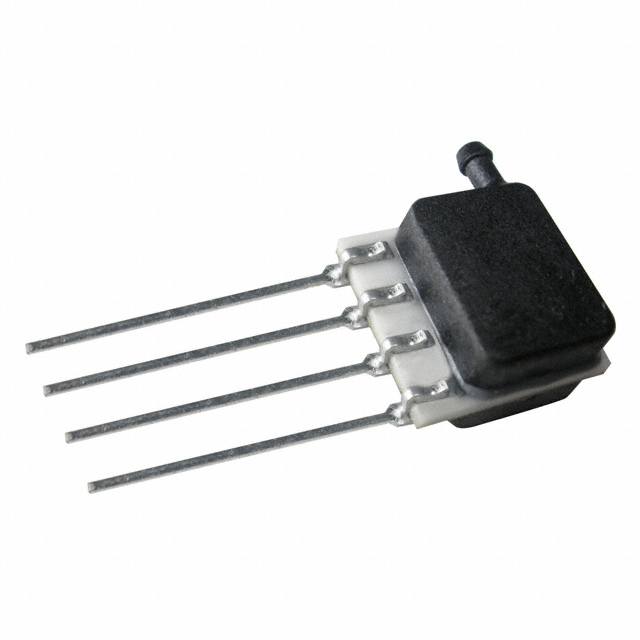

SSCSRNN Series

Catalog

SENSOR 15PSIA 0.08" 2.97V 4SIP

Part	Port Style	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Output [Max]	Output [Min]	Supplier Device Package	Package / Case	Termination Style	Features	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Pressure	Operating Pressure	Port Size	Port Size	Port Size	Maximum Pressure [Max]	Maximum Pressure [Max]	Accuracy	Output	Maximum Pressure	Pressure Type	Maximum Pressure
Honeywell Sensing and Productivity Solutions SSCSRNN015PAAA3	Barbed	85 °C	-40 C	Board Mount	Through Hole	2.97 V	0.33 V	4-SIP	4-SIP Side Port	PC Pin	Amplified Output Temperature Compensated	Analog Voltage	3.6 V	3 V	15 PSI	103.42 kPa	Male Tube	0.08 "	1.92 mm	206.84 kPa	30 PSI	0.25 %
Honeywell Sensing and Productivity Solutions SSCSRNN1.6BA7A3	Barbed	85 °C	-40 C	Board Mount	Through Hole			4-SIP	4-SIP Side Port	PC Pin	Amplified Output Temperature Compensated	I2C	3.6 V	3 V	23.21 PSI	160 kPa	Male Tube	0.08 "	1.92 mm		58.02 PSI	0.25 %	12 b	400 kPa
Honeywell Sensing and Productivity Solutions SSCSRNN001PGAA5	Barbed	85 °C	-40 C	Board Mount	Through Hole	4.5 V	0.5 V	4-SIP	4-SIP Side Port	PC Pin	Amplified Output Temperature Compensated	Analog Voltage	5.25 V	4.75 V	1 PSI	6.89 kPa	Male Tube	0.23 in	5.8 mm	68.95 kPa	10 PSI	0.25 %			Vented Gauge
Honeywell Sensing and Productivity Solutions SSCSRNN100MGAA3	Barbed	85 °C	-40 C	Board Mount	Through Hole	2.97 V	0.33 V	4-SIP	4-SIP Side Port	PC Pin	Amplified Output Temperature Compensated	Analog Voltage	3.6 V	3 V	1.45 PSI	10 kPa	Male Tube	0.08 "	1.92 mm			0.25 %		85 kPa	Vented Gauge	12.33 PSI
