M2012S2 Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Illumination	Actuator Length [x]	Voltage Rating - DC	Current Rating (Amps)	Features	Termination Style	Actuator Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Voltage Rating - AC	Mounting Type	Panel Cutout Dimensions [diameter]	Switch Function	Actuator Length

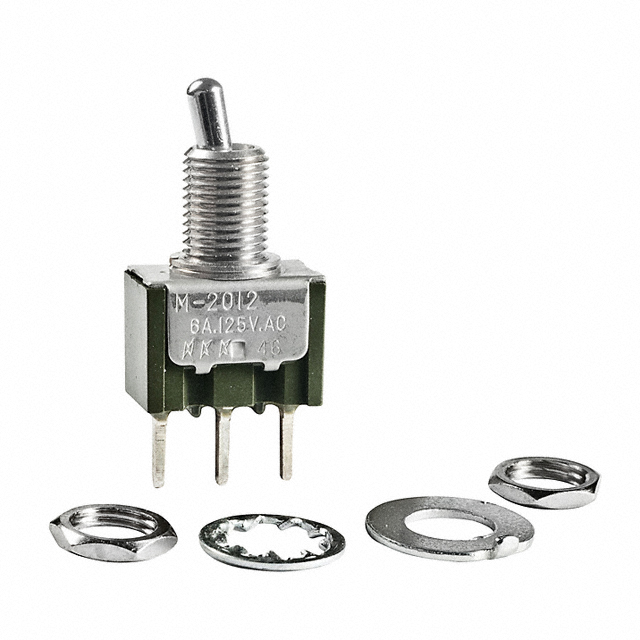

NKK Switches M2012S2S1W03	25000 Steps	Brass Chrome Plated	Non-Illuminated	5.08 mm	30 V	4 A 6 A	Epoxy Sealed Terminals	PC Pin	Standard Round	SPDT	85 °C	-30 ░C	1/4-40	125 V	Panel Mount	6.5 mm	On-On
NKK Switches M2012S2A2W25/CUL	25000 Steps	Brass Chrome Plated	Non-Illuminated		30 V	4 A 6 A	Epoxy Sealed Terminals	PC Pin	Standard Round	SPDT	85 °C	-30 ░C	Unthreaded	125 V	Through Hole		On-On	6.86 mm

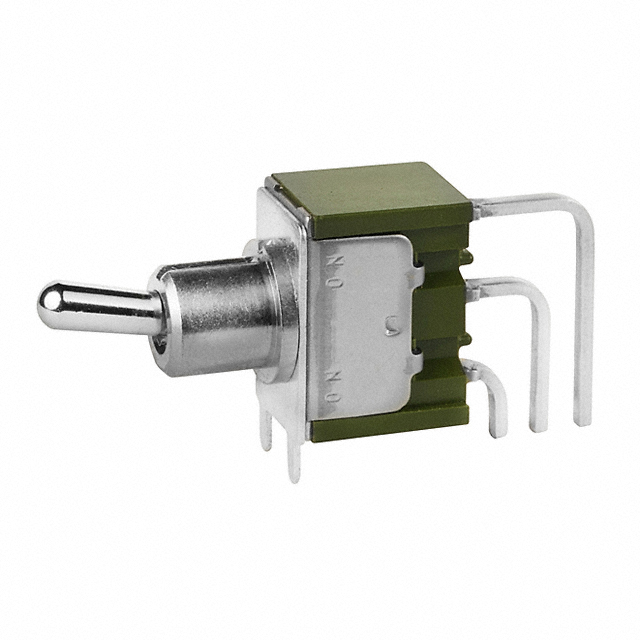

NKK Switches M2012S2A2W45	25000 Steps	Brass Chrome Plated	Non-Illuminated		30 V	4 A 6 A	Epoxy Sealed Terminals	PC Pin	Standard Round	SPDT	85 °C	-30 ░C	Unthreaded	125 V	Right Angle Through Hole Vertical		On-On	6.86 mm

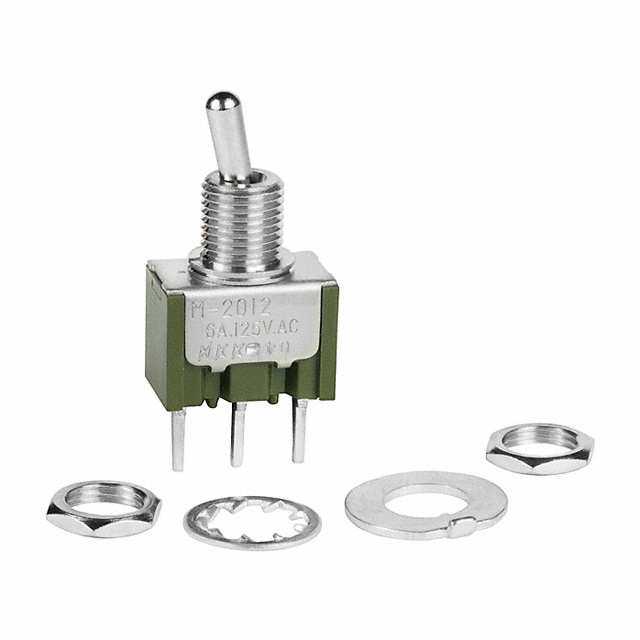

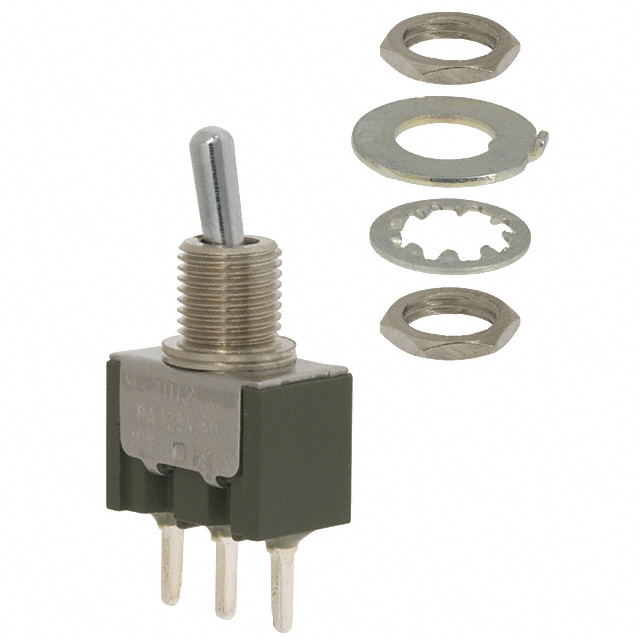

NKK Switches M2012S2A1W03	25000 Steps	Brass Chrome Plated	Non-Illuminated		30 V	4 A 6 A	Epoxy Sealed Terminals	PC Pin	Standard Round	SPDT	85 °C	-30 ░C	1/4-40	125 V	Panel Mount	6.5 mm	On-On	6.86 mm
NKK Switches M2012S2S2G40	50000 Cycles	Brass Chrome Plated	Non-Illuminated	5.08 mm	28 V	0.4 VA	Epoxy Sealed Terminals	PC Pin	Standard Round	SPDT	85 °C	-30 ░C	Unthreaded	28 V	Right Angle Through Hole Vertical		On-On

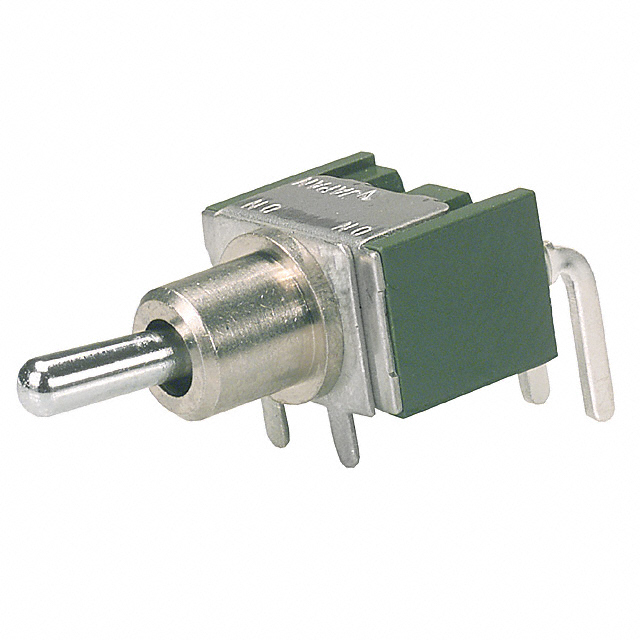

NKK Switches M2012S2A2W30	25000 Steps	Brass Chrome Plated	Non-Illuminated		30 V	4 A 6 A	Epoxy Sealed Terminals	PC Pin	Standard Round	SPDT	85 °C	-30 ░C	Unthreaded	125 V	Right Angle Through Hole		On-On	6.86 mm
NKK Switches M2012S2A2G45	50000 Cycles	Brass Chrome Plated	Non-Illuminated		28 V	0.4 VA	Epoxy Sealed Terminals	PC Pin	Standard Round	SPDT	85 °C	-30 ░C	Unthreaded	28 V	Right Angle Through Hole Vertical		On-On	6.86 mm
NKK Switches M2012S2A1G32	50000 Cycles	Brass Chrome Plated	Non-Illuminated		28 V	0.4 VA	Epoxy Sealed Terminals	PC Pin	Standard Round	SPDT	85 °C	-30 ░C	1/4-40	28 V	Panel Mount Right Angle	6.5 mm	On-On	6.86 mm

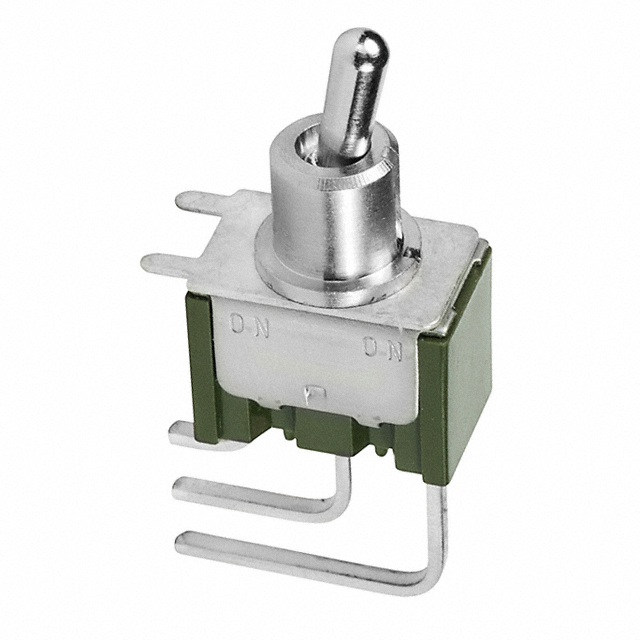

NKK Switches M2012S2A2W40	25000 Steps	Brass Chrome Plated	Non-Illuminated		30 V	4 A 6 A	Epoxy Sealed Terminals	PC Pin	Standard Round	SPDT	85 °C	-30 ░C	Unthreaded	125 V	Right Angle Through Hole Vertical		On-On	6.86 mm
NKK Switches M2012S2A2W30/UC-CC	25000 Steps	Brass Chrome Plated	Non-Illuminated		30 V	4 A 6 A	Red Cap	PC Pin	Standard Round with Cap	SPDT	85 °C	-30 ░C	Unthreaded	125 V	Right Angle Through Hole		On-On	6.86 mm
