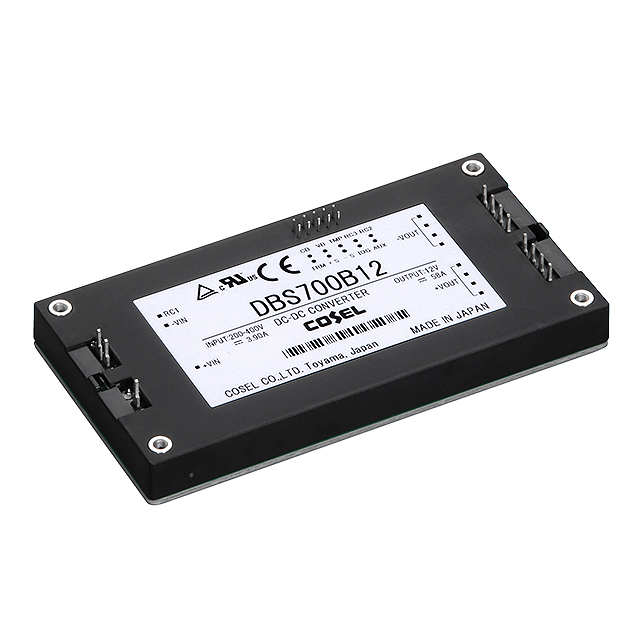

DBS700 Series

Catalog

DC DC CONVERTER 36V

Part	Voltage - Input (Max) [Max]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Features	Applications	Voltage - Input (Min) [Min]	Package / Case	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Output 1 [custom]	Voltage - Output 1	Power (Watts)
Cosel USA, Inc. DBS700B36	400 VDC	Isolated Module	-40 °C	100 °C	90 %	1	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole	OCP OTP OVP Remote On/Off	ITE (Commercial)	200 V	21-DIP Module	19.5 A	3000 V	36 V
Cosel USA, Inc. DBS700B28	400 VDC	Isolated Module	-20 °C	85 °C	90.5 %	1	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole		ITE (Commercial)	200 V	21-DIP Module	25 A			28 V	700 W
Cosel USA, Inc. DBS700B48-T	400 VDC	Isolated Module	-20 °C	85 °C	91 %	1	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole		ITE (Commercial)	200 V	21-DIP Module	14.5 A			48 V	696 W
Cosel USA, Inc. DBS700B24	400 VDC	Isolated Module	-40 °C	100 °C	90 %	1	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole	OCP OTP OVP Remote On/Off	ITE (Commercial)	200 V	21-DIP Module	39 A	3000 V		24 V
Cosel USA, Inc. DBS700B48	400 VDC	Isolated Module	-40 °C	100 °C	91 %	1	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole	OCP OTP OVP Remote On/Off	ITE (Commercial)	200 V	21-DIP Module	14.5 A	3000 V		48 V
Cosel USA, Inc. DBS700B28-T	400 VDC	Isolated Module	-20 °C	85 °C	90.5 %	1	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole		ITE (Commercial)	200 V	21-DIP Module	25 A			28 V	700 W
Cosel USA, Inc. DBS700B12	400 VDC	Isolated Module	-20 °C	85 °C	90 %	1	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole		ITE (Commercial)	200 V	21-DIP Module	58 A			12 V	696 W
Cosel USA, Inc. DBS700B12-T	400 VDC	Isolated Module	-20 °C	85 °C	90 %	1	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole		ITE (Commercial)	200 V	21-DIP Module	58 A			12 V	696 W
Cosel USA, Inc. DBS700B36-T	400 VDC	Isolated Module	-20 °C	85 °C	90 %	1	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole		ITE (Commercial)	200 V	21-DIP Module	19.5 A		36 V		702 W
