SHCS02 Series
Manufacturer: Altech Corporation
Beta
⌘K

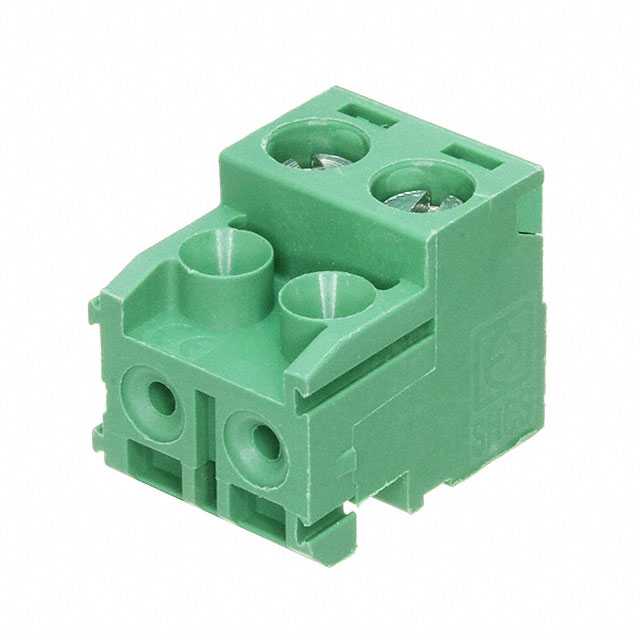

TERM BLOCK PLUG 2POS 5MM
| Part | Insulation Height | Contact Material | Wire Gauge or Range - mm² (Maximum) | Wire Gauge or Range - mm² (Minimum) | Material Flammability Rating | Wire Strip Length | Housing Material | Screw Size | Torque - Screw | Voltage - IEC | Mounting Type | Type | Plug Wire Entry Options | Pitch | Voltage - UL | Contact Mating Finish | Number of Levels | Color | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Operating Temperature (Min) | Operating Temperature (Max) | Current - UL | Positions Per Level | Current - IEC | Number of Positions | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altech Corporation | 0.453 in | Copper | 4 mm² | 0.25 mm² | UL94 V-0 | 7 mm | Nylon PA Polyamide | M3 | 0.51 Nm | 250 V | Free Hanging (In-Line) | Plug for Unshrouded Header | 180° 90° | 0.197 in | 300 V | Nickel | 1 | Green | 30 AWG | 14 AWG | -30 °C | 105 °C | 15 A | 2 | 15 A | 2 | Screw - Rising Cage Clamp |
