1445098 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

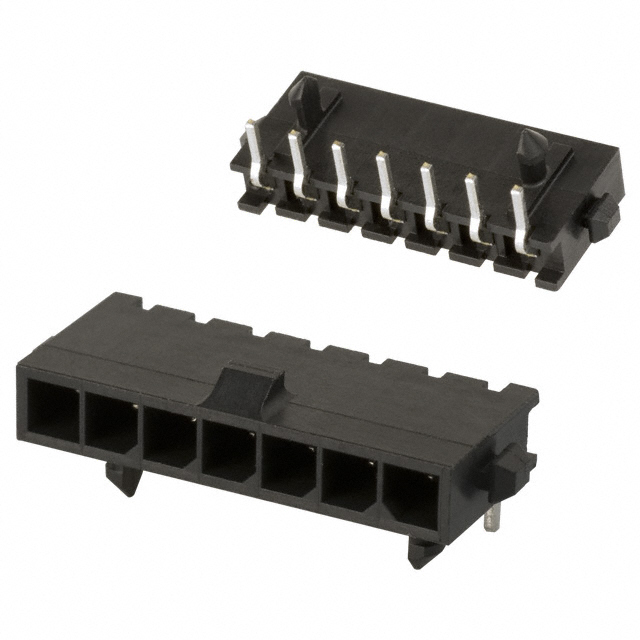

CONN HEADER R/A 7POS 3MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Style | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Voltage Rating | Current Rating (Amps) | Fastening Type | Insulation Height [custom] | Insulation Height [custom] | Contact Length - Post | Contact Length - Post | Connector Type | Contact Type | Mounting Type | Insulation Material | Insulation Color | Features | Number of Rows | Termination | Contact Finish - Post | Applications | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Material | Material Flammability Rating | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -40 C | 105 ░C | Square | Board to Cable/Wire | 2.54 µm | 100 µin | 7 | 0.76 Ám | 30 Áin | Shrouded - 4 Wall | 250 V | Varies by Wire Gauge | Locking Ramp | 0.152 in | 3.85 mm | 0.138 in | 3.5 mm | Header | Male Pin | Right Angle Through Hole | Nylon Polyamide (PA) | Black | Board Lock | 1 | Solder | Tin-Lead | General Purpose | 3 mm | 0.118 in | All | Brass | UL94 V-0 | Gold |

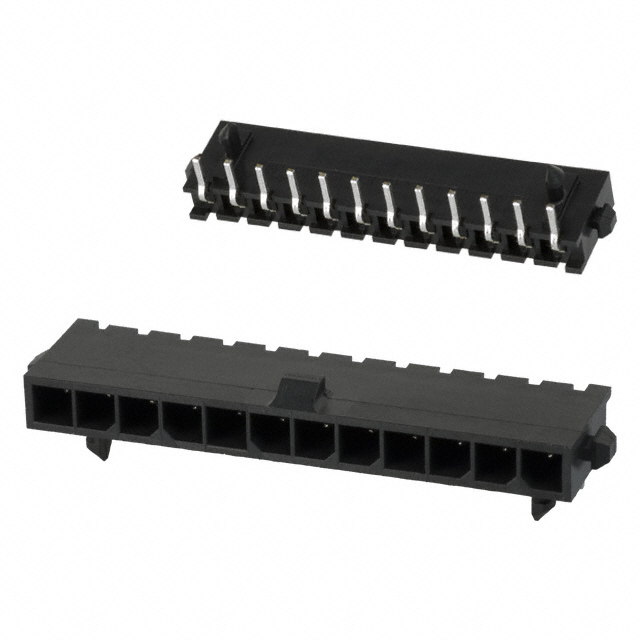

 TE Connectivity AMP Connectors | -40 C | 105 ░C | Square | Board to Cable/Wire | 2.54 µm | 100 µin | 12 | 0.76 Ám | 30 Áin | Shrouded - 4 Wall | 250 V | Varies by Wire Gauge | Locking Ramp | 0.152 in | 3.85 mm | 0.138 in | 3.5 mm | Header | Male Pin | Right Angle Through Hole | Nylon Polyamide (PA) | Black | Board Lock | 1 | Solder | Tin-Lead | General Purpose | 3 mm | 0.118 in | All | Brass | UL94 V-0 | Gold |
 TE Connectivity AMP Connectors | -40 C | 105 ░C | Square | Board to Cable/Wire | 2.54 µm | 100 µin | 2 | 0.76 Ám | 30 Áin | Shrouded - 4 Wall | 250 V | Varies by Wire Gauge | Locking Ramp | 0.152 in | 3.85 mm | 0.138 in | 3.5 mm | Header | Male Pin | Right Angle Through Hole | Nylon Polyamide (PA) | Black | Board Lock | 1 | Solder | Tin-Lead | General Purpose | 3 mm | 0.118 in | All | Brass | UL94 V-0 | Gold |
 TE Connectivity AMP Connectors | -40 C | 105 ░C | Square | Board to Cable/Wire | 2.54 µm | 100 µin | 9 | 0.76 Ám | 30 Áin | Shrouded - 4 Wall | 250 V | Varies by Wire Gauge | Locking Ramp | 0.152 in | 3.85 mm | 0.138 in | 3.5 mm | Header | Male Pin | Right Angle Through Hole | Nylon Polyamide (PA) | Black | Board Lock | 1 | Solder | Tin-Lead | General Purpose | 3 mm | 0.118 in | All | Brass | UL94 V-0 | Gold |
