438-047 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE METAL TO METAL 2 PIECE CONNECTORS

Part	Material - Insulation	Termination Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Color	Card Type	Contact Finish	Gender	Number of Rows [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Pitch	Pitch	Mounting Type	Contact Material	Note	Material Flammability Rating
EDAC Inc. 438-047-520-112	Diallyl Phthalate (DAP)	2	0.25 Ám	10 Áin	1.57 mm	0.062 in	Solder	-65 ░C	125 °C	47	Green	Non Specified - Dual Edge	Gold	Female	2	3.25 mm	0.128 "	5.08 mm	0.2 in	Panel Mount Through Hole	Copper Alloy

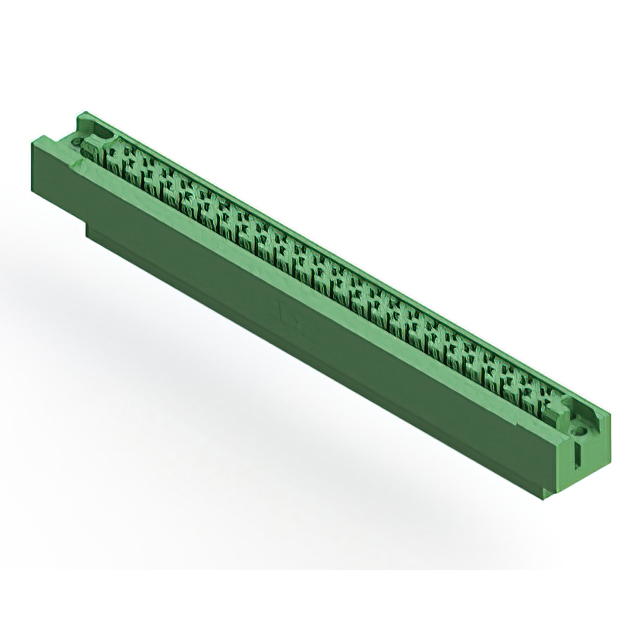

EDAC Inc. 438-047-000-112	Polyphenylene Sulfide (PPS)				1.57 mm	0.062 in		-65 ░C	125 °C	47	Green	Non Specified - Dual Edge				3.25 mm	0.128 "	5.08 mm	0.2 in			Contacts Not Included	UL94 V-0
EDAC Inc. 438-047-500-122	Diallyl Phthalate (DAP)	2	0.25 Ám	10 Áin	2.36 mm	0.093 "	Solder Eyelet(s)	-65 ░C	125 °C	47	Green	Non Specified - Dual Edge	Gold	Female	2	3.25 mm	0.128 "	5.08 mm	0.2 in	Panel Mount Through Hole	Copper Alloy

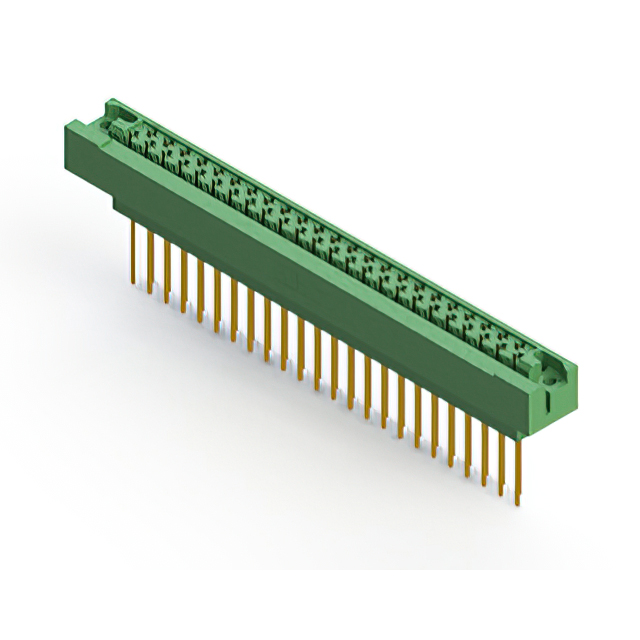

EDAC Inc. 438-047-542-112	Diallyl Phthalate (DAP)	2	0.25 Ám	10 Áin	1.57 mm	0.062 in	Wire Wrap	-65 ░C	125 °C	47	Green	Non Specified - Dual Edge	Gold	Female	2	3.25 mm	0.128 "	5.08 mm	0.2 in	Panel Mount Through Hole	Copper Alloy
EDAC Inc. 438-047-520-122	Diallyl Phthalate (DAP)	2	0.25 Ám	10 Áin	2.36 mm	0.093 "	Solder	-65 ░C	125 °C	47	Green	Non Specified - Dual Edge	Gold	Female	2	3.25 mm	0.128 "	5.08 mm	0.2 in	Panel Mount Through Hole	Copper Alloy
EDAC Inc. 438-047-540-112	Diallyl Phthalate (DAP)	2	0.25 Ám	10 Áin	1.57 mm	0.062 in	Wire Wrap	-65 ░C	125 °C	47	Green	Non Specified - Dual Edge	Gold	Female	2	3.25 mm	0.128 "	5.08 mm	0.2 in	Panel Mount Through Hole	Copper Alloy

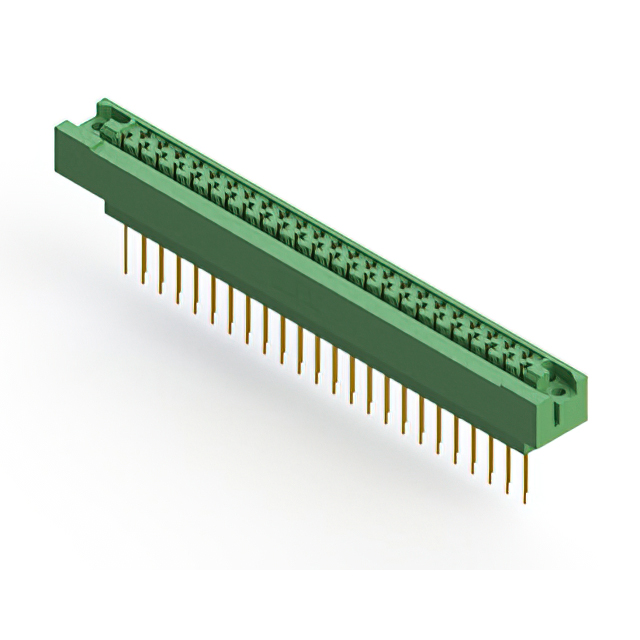

EDAC Inc. 438-047-541-122	Diallyl Phthalate (DAP)	2	0.25 Ám	10 Áin	2.36 mm	0.093 "	Wire Wrap	-65 ░C	125 °C	47	Green	Non Specified - Dual Edge	Gold	Female	2	3.25 mm	0.128 "	5.08 mm	0.2 in	Panel Mount Through Hole	Copper Alloy
