470077YY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

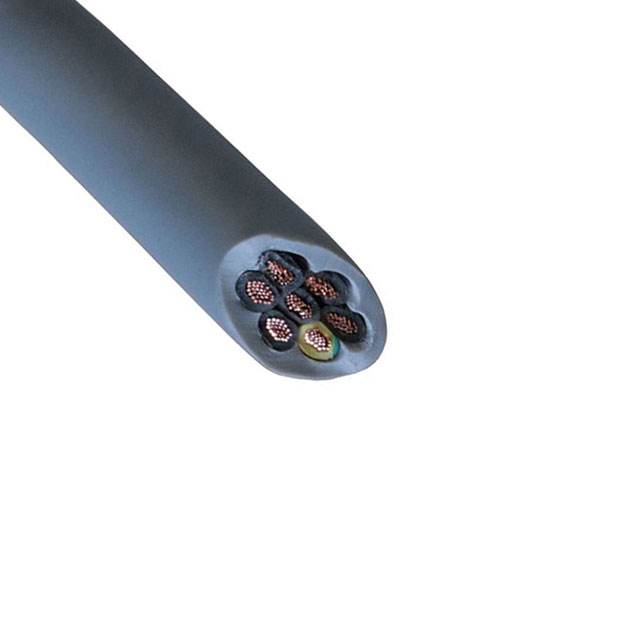

CABLE 7COND 19AWG GRAY 5M
| Part | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Jacket (Insulation) Material | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Jacket Color | Usage | Conductor Insulation | Features | Voltage | Conductor Strand [custom] | Conductor Strand [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 7 | 0.293 in | 7.44 mm | 1 m 10 m 20 m | 3.28 ft 32.81 ft 65.62 ft | Poly-Vinyl Chloride (PVC) | Copper Bare | 80 °C | -40 C | 98.43 ft | 30 m | Multi-Conductor | 0.82 mm | 0.0323 in | 19 AWG | Gray | Industrial | Poly-Vinyl Chloride (PVC) | Chemical Resistant Oil Resistant UV Resistant | 300 VDC | 30 | 0.007 in |
