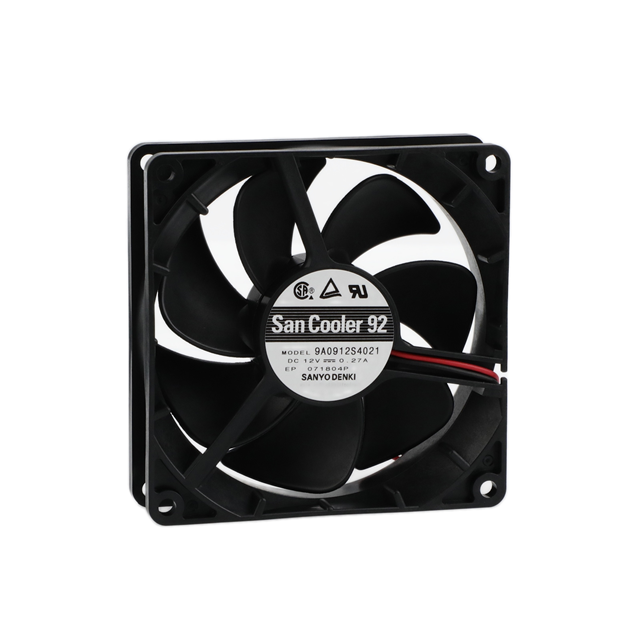

9A0912 Series

Catalog

DC FANS DC AXIAL FAN, 92X92X25MM, 12VDC, 62.2CFM, RIBLESS, BALL, WIRE, LOCK SENSOR

Part	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Blade	Material - Frame	Static Pressure	Static Pressure	Voltage - Rated	Termination	Bearing Type	Approval Agency	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Weight [custom]	Weight [custom]	Air Flow	Air Flow	Width [y]	RPM	Size / Dimension [y]	Size / Dimension [x]	Fan Type	Lifetime @ Temp.	Power (Watts)	Features
Sanyo Denki America Inc. 9A0912G4021	13.8 VDC	6 VDC	390 mA	Plastic	Plastic	66.5 Pa	0.267 in H2O	12 VDC	2 Wire Leads	Ball	CSA TUV UL	60 °C	60 °C	-4 °F	-20 ░C	43 dB	100.7 g	0.222 lb	1.74 mł/min	62.1 CFM	25 mm	3900 RPM	92 mm	92 mm	Tubeaxial
Sanyo Denki America Inc. 9A0912L4021	13.8 VDC	7 V	70 mA	Plastic	Plastic	13.4 Pa	0.054 in H2O	12 VDC	2 Wire Leads	Ball	CSA TUV UL		70 °C		-20 ░C	23 dB(A)	100.7 g	0.222 lb	0.79 mł/min	28.2 CFM	25 mm	1750 RPM	92 mm	92 mm	Tubeaxial	40000 Hrs	840 mW
Sanyo Denki America Inc. 9A0912L4D01	13.8 VDC	7 V	70 mA	Plastic	Plastic	13.4 Pa	0.054 in H2O	12 VDC	3 Wire Leads	Ball	CSA TUV UL		70 °C		-20 ░C	23 dB(A)	100.7 g	0.222 lb	0.79 mł/min	28.2 CFM	25 mm	1750 RPM	92 mm	92 mm	Tubeaxial	40000 Hrs	840 mW	Locked Rotor Sensor
Sanyo Denki America Inc. 9A0912L402	13.8 VDC	7 V	70 mA	Plastic	Plastic	13.4 Pa	0.054 in H2O	12 VDC	2 Wire Leads	Ball	CSA TUV UL		70 °C		-20 ░C	23 dB(A)	100.7 g	0.222 lb	0.79 mł/min	28.2 CFM	25 mm	1750 RPM	92 mm	92 mm	Tubeaxial	40000 Hrs	840 mW
Sanyo Denki America Inc. 9A0912H4021	13.8 VDC	6 VDC	0.21 A	Plastic	Plastic	44.1 Pa	0.177 in H2O	12 VDC	2 Wire Leads	Ball	CSA TUV UL		70 °C		-20 ░C	33 dB(A)	100.7 g	0.222 lb	1.43 mł/min	51.2 CFM	25 mm	3150 RPM	92 mm	92 mm	Tubeaxial	40000 Hrs	2.52 W
Sanyo Denki America Inc. 9A0912F4021	13.8 VDC	6 VDC	140 mA	Plastic	Plastic	32.1 Pa	0.129 in H2O	12 VDC	2 Wire Leads	Ball	CSA TUV UL		70 °C		-20 ░C	30 dB	100.7 g	0.222 lb	1.23 m³/min	43.8 CFM	25 mm	2650 RPM	92 mm	92 mm	Tubeaxial	40000 Hrs	1.68 W
Sanyo Denki America Inc. 9A0912G4011	13.8 VDC	6 VDC	390 mA	Plastic	Plastic	66.5 Pa	0.267 in H2O	12 VDC	3 Wire Leads	Ball	CSA TUV UL	60 °C	60 °C	-4 °F	-20 ░C	43 dB	100.7 g	0.222 lb	1.74 mł/min	62.1 CFM	25 mm	3900 RPM	92 mm	92 mm	Tubeaxial			Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9A0912S4D011	13.8 VDC	6 VDC	270 mA	Plastic	Plastic	56 Pa	0.225 in H2O	12 VDC	3 Wire Leads	Ball	CSA TUV UL	60 °C	60 °C	-4 °F	-20 ░C	39 dB(A)	100.7 g	0.222 lb	1.64 m³/min	58.6 CFM	25 mm	3550 RPM	92 mm	92 mm	Tubeaxial	40000 Hrs	3.24 W	Locked Rotor Sensor
Sanyo Denki America Inc. 9A0912G401	13.8 VDC	6 VDC	390 mA	Plastic	Plastic	66.5 Pa	0.267 in H2O	12 VDC	3 Wire Leads	Ball	CSA TUV UL	60 °C	60 °C	-4 °F	-20 ░C	43 dB	100.7 g	0.222 lb	1.74 mł/min	62.1 CFM	25 mm	3900 RPM	92 mm	92 mm	Tubeaxial			Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9A0912M402	13.8 VDC	6 VDC	120 mA	Plastic	Plastic	22.7 Pa	0.091 in H2O	12 VDC	2 Wire Leads	Ball	CSA TUV UL		70 °C		-20 ░C	27 dB(A)	100.7 g	0.222 lb	1.03 m³/min	36.7 CFM	25 mm	2250 RPM	92 mm	92 mm	Tubeaxial	40000 Hrs	1.44 W
