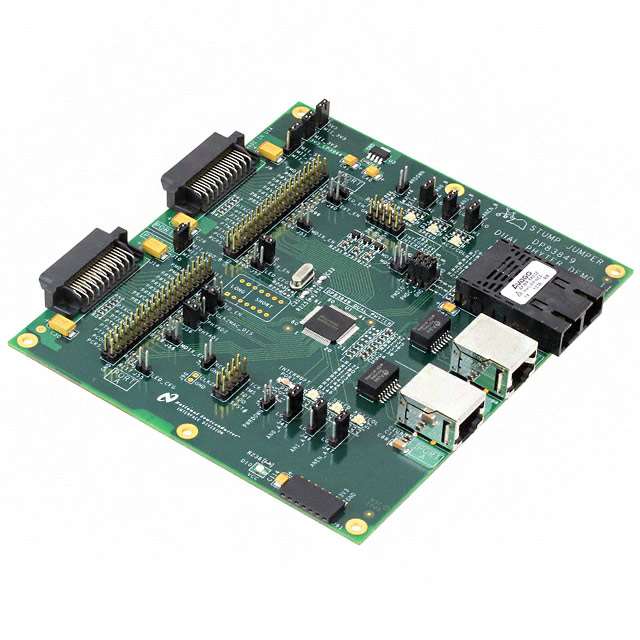

DP83849IF Series
Industrial temperature, dual-port 10/100-Mbps Ethernet PHY transceiver with fiber support & flexible
Manufacturer: Texas Instruments
Catalog
Industrial temperature, dual-port 10/100-Mbps Ethernet PHY transceiver with fiber support & flexible
Key Features
• Low-Power 3.3V, 0.18µm CMOS TechnologyLow Power Consumption <600mW Typical3.3V MAC InterfaceAuto-MDIX for 10/100 Mb/sEnergy Detection ModeFlexible MII Port AssignmentDynamic Integrity UtilityDynamic Link Quality MonitoringTDR based Cable Diagnostic and Cable Length DetectionOptimized Latency for Real Time Ethernet OperationReference Clock OutRMII Rev. 1.2 Interface (Configurable)SNI Interface (Configurable)MII Serial Management Interface (MDC and MDIO)IEEE 802.3u MIIIEEE 802.3u Auto-Negotiation and Parallel DetectionIEEE 802.3u ENDEC, 10BASE-T Transceivers and FiltersIEEE 802.3u PCS, 100BASE-TX Transceivers and FiltersIEEE 802.3u 100BASE-FX Fiber InterfaceIEEE 1149.1 JTAGIntegrated ANSI X3.263 Compliant TP-PMD Physical Sub-Layer with Adaptive Equalization and Baseline Wander CompensationProgrammable LED Support for Link, 10 /100 Mb/s Mode, Activity, Duplex and Collision DetectSingle Register Access for Complete PHY Status10/100 Mb/s Packet BIST (Built in Self Test)80-pin TQFP Package (12mm x 12mm)PHYTER is a trademark of Texas Instruments. All trademarks are the property of their respective owners.Low-Power 3.3V, 0.18µm CMOS TechnologyLow Power Consumption <600mW Typical3.3V MAC InterfaceAuto-MDIX for 10/100 Mb/sEnergy Detection ModeFlexible MII Port AssignmentDynamic Integrity UtilityDynamic Link Quality MonitoringTDR based Cable Diagnostic and Cable Length DetectionOptimized Latency for Real Time Ethernet OperationReference Clock OutRMII Rev. 1.2 Interface (Configurable)SNI Interface (Configurable)MII Serial Management Interface (MDC and MDIO)IEEE 802.3u MIIIEEE 802.3u Auto-Negotiation and Parallel DetectionIEEE 802.3u ENDEC, 10BASE-T Transceivers and FiltersIEEE 802.3u PCS, 100BASE-TX Transceivers and FiltersIEEE 802.3u 100BASE-FX Fiber InterfaceIEEE 1149.1 JTAGIntegrated ANSI X3.263 Compliant TP-PMD Physical Sub-Layer with Adaptive Equalization and Baseline Wander CompensationProgrammable LED Support for Link, 10 /100 Mb/s Mode, Activity, Duplex and Collision DetectSingle Register Access for Complete PHY Status10/100 Mb/s Packet BIST (Built in Self Test)80-pin TQFP Package (12mm x 12mm)PHYTER is a trademark of Texas Instruments. All trademarks are the property of their respective owners.
Description
AI
The number of applications requiring Ethernet Connectivity continues to expand. Along with this increased market demand is a change in application requirements. Where single channel Ethernet used to be sufficient, many applications such as wireless remote base stations and industrial networking now require DUAL Port functionality for redundancy or system management.
The DP83849IF is a highly reliable, feature rich device perfectly suited for industrial applications enabling Ethernet on the factory floor. The DP83849IF features two fully independent 10/100 ports for multi-port applications. Texas Instruments’ unique port switching capability also allows the two ports to be configured to provide fully integrated range extension, media conversion, hardware based failover and port monitoring.
The DP83849IF provides optimum flexibility in MPU selection by supporting both MII and RMII interfaces. The device also provides flexibility by supporting both copper and fiber media. In addition this device includes a powerful new diagnostics tool to ensure initial network operation and maintenance.
In addition to the TDR scheme, commonly used for detecting faults during installation, TI’s innovative cable diagnostics provides for real time continuous monitoring of the link quality. This allows the system designer to implement a fault prediction mechanism to detect and warn of changing or deteriorating link conditions.
With the DP83849IF, TI continues to build on its Ethernet expertise and leadership position by providing a powerful combination of features and flexibility, easing Ethernet implementation for the system designer.
The number of applications requiring Ethernet Connectivity continues to expand. Along with this increased market demand is a change in application requirements. Where single channel Ethernet used to be sufficient, many applications such as wireless remote base stations and industrial networking now require DUAL Port functionality for redundancy or system management.
The DP83849IF is a highly reliable, feature rich device perfectly suited for industrial applications enabling Ethernet on the factory floor. The DP83849IF features two fully independent 10/100 ports for multi-port applications. Texas Instruments’ unique port switching capability also allows the two ports to be configured to provide fully integrated range extension, media conversion, hardware based failover and port monitoring.
The DP83849IF provides optimum flexibility in MPU selection by supporting both MII and RMII interfaces. The device also provides flexibility by supporting both copper and fiber media. In addition this device includes a powerful new diagnostics tool to ensure initial network operation and maintenance.
In addition to the TDR scheme, commonly used for detecting faults during installation, TI’s innovative cable diagnostics provides for real time continuous monitoring of the link quality. This allows the system designer to implement a fault prediction mechanism to detect and warn of changing or deteriorating link conditions.
With the DP83849IF, TI continues to build on its Ethernet expertise and leadership position by providing a powerful combination of features and flexibility, easing Ethernet implementation for the system designer.
