501594 Series

Manufacturer: Molex

Catalog

CONN PLUG 70POS SMD GOLD

Part	Mated Stacking Heights	Mounting Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Positions	Contact Finish	Number of Rows [custom]	Connector Type	Features	Number of Positions [custom]

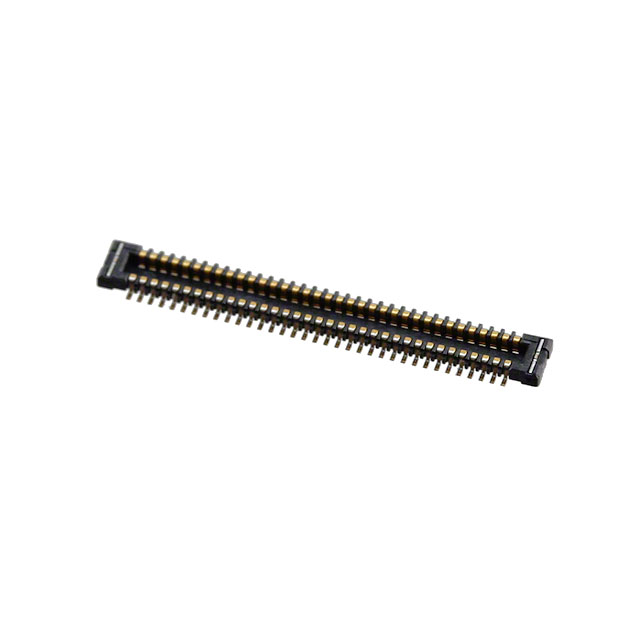

Molex 5015947011	0.9 mm	Surface Mount	0.028 in	0.71 mm	0.1 Ám	4 Áin	0.4 mm	0.016 in	70	Gold	2	Plug Outer Shroud Contacts	Solder Retention
Molex 5015942011	0.9 mm	Surface Mount	0.028 in	0.71 mm	0.1 Ám	4 Áin	0.4 mm	0.016 in	20	Gold	2	Plug Outer Shroud Contacts	Solder Retention

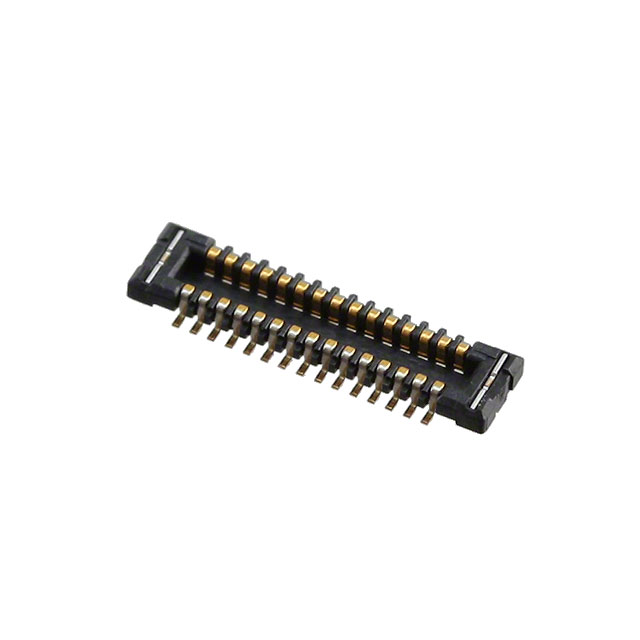

Molex 5015943011	0.9 mm	Surface Mount	0.028 in	0.71 mm	0.1 Ám	4 Áin	0.4 mm	0.016 in	30	Gold	2	Plug Outer Shroud Contacts	Solder Retention

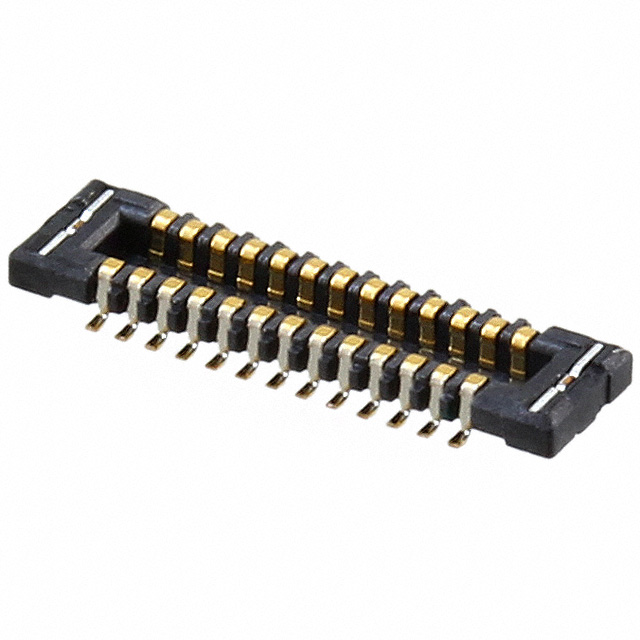

Molex 5015942611	0.9 mm	Surface Mount	0.028 in	0.71 mm	0.1 Ám	4 Áin	0.4 mm	0.016 in	26	Gold	2	Plug Outer Shroud Contacts	Solder Retention
Molex 5015941011	0.9 mm	Surface Mount	0.028 in	0.71 mm	0.1 Ám	4 Áin	0.4 mm	0.016 in	10	Gold	2	Plug Outer Shroud Contacts	Solder Retention

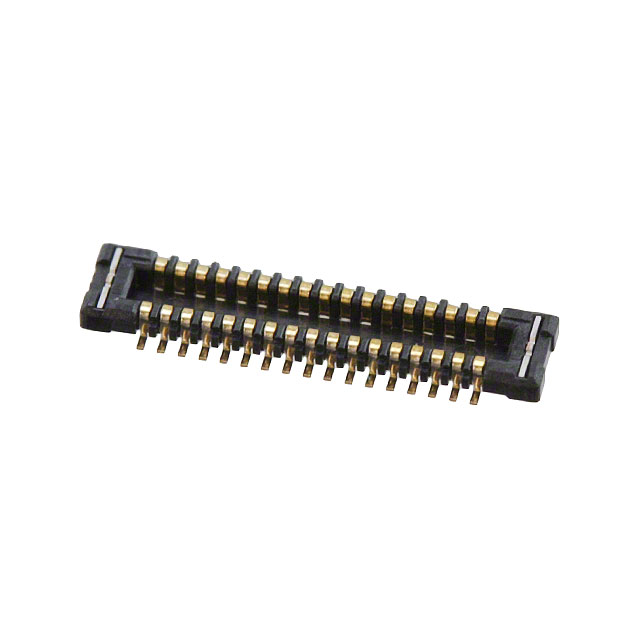

Molex 5015943411	0.9 mm	Surface Mount	0.028 in	0.71 mm	0.1 Ám	4 Áin	0.4 mm	0.016 in		Gold	2	Plug Outer Shroud Contacts	Solder Retention	34
Molex 5015944011	0.9 mm	Surface Mount	0.028 in	0.71 mm	0.1 Ám	4 Áin	0.4 mm	0.016 in	40	Gold	2	Plug Outer Shroud Contacts	Solder Retention
