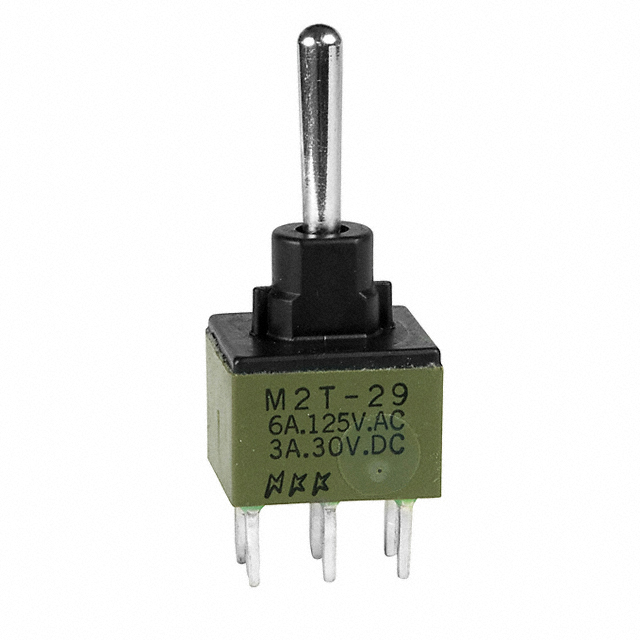

M2T29SA Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 0.4VA 28V
| Part | Actuator Material | Electrical Life | Circuit | Illumination | Mounting Type | Voltage Rating - AC | Bushing Thread | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Features | Switch Function | Termination Style | Actuator Type | Current Rating (Amps) | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Nickel Plated | 50000 Cycles | DPDT | Non-Illuminated | Through Hole | 28 V | Unthreaded | 85 °C | -30 ░C | 28 V | Process Sealed | On-Off-Mom | PC Pin | Standard Round | 0.4 VA | 0.5 in |
 NKK Switches | Brass Nickel Plated | 25000 Steps | DPDT | Non-Illuminated | Through Hole | 125 V | Unthreaded | 85 °C | -30 ░C | 30 V | Process Sealed | On-Off-Mom | PC Pin | Standard Round | 3 A 6 A | 0.5 in |
