895-038 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 38POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Number of Positions/Bay/Row	Pitch	Pitch	Read Out	Termination	Contact Finish	Contact Material	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions	Flange Feature	Card Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Termination Rows	Number of Rows	Number of Positions/Bay/Row [custom]	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 895-038-558-508	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	2	19	0.1 "	2.54 mm	Dual	Solder	Gold	Copper Alloy	Cantilever	125 °C	-40 C	Black	38	4-40 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Right Angle Through Hole
EDAC Inc. 895-038-525-207	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	2	19	0.1 "	2.54 mm	Dual	Solder	Gold	Copper Alloy	Cantilever	125 °C	-40 C	Black	38	Flush Mount M3 Threaded Insert Top Opening	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Through Hole
EDAC Inc. 895-038-541-607	Polyphenylene Sulfide (PPS)		0.07 in 1.78 mm	0.054 in 1.37 mm			0.1 "	2.54 mm	Single	Wire Wrap	Gold	Copper Alloy	Cantilever	125 °C	-40 C	Black	38	M3 Threaded Insert Top Mount Opening	Non Specified - Single Edge	Female	0.25 Ám	10 Áin	Through Hole	1	1	38

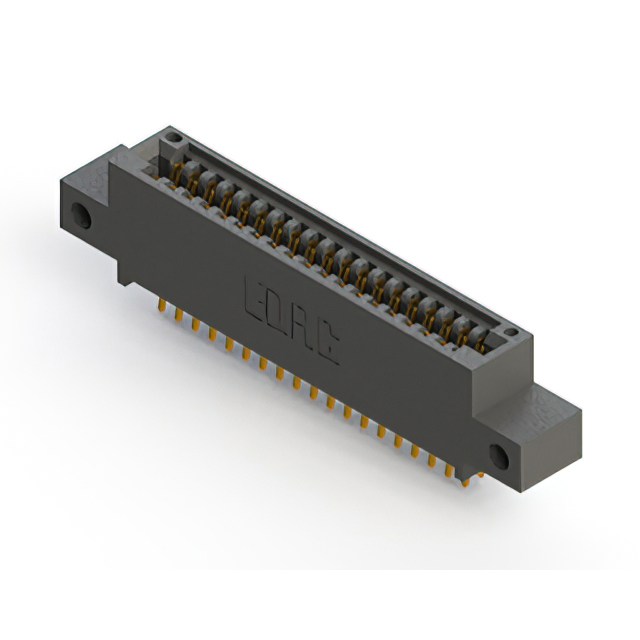

EDAC Inc. 895-038-556-512	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	2	19	0.1 "	2.54 mm	Dual	Solder	Gold	Copper Alloy	Cantilever	125 °C	-40 C	Black	38	Side Mount Opening Unthreaded	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Board Edge Straddle Mount				Card Extender	0.128 "	3.25 mm

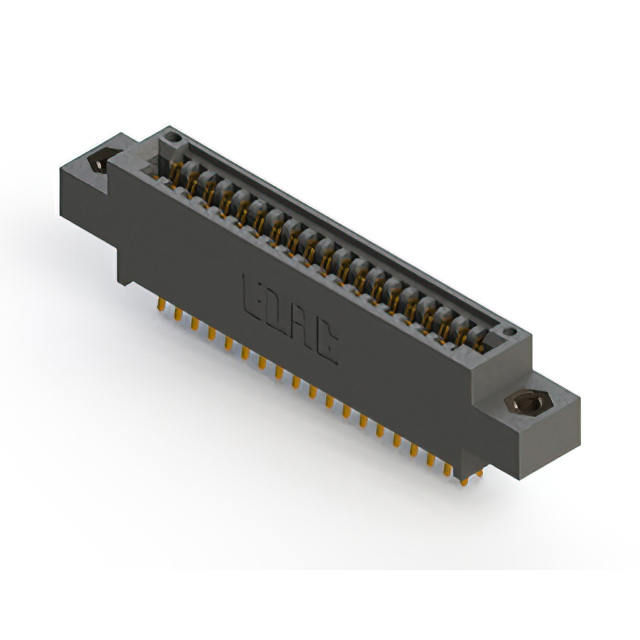

EDAC Inc. 895-038-556-807	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	2	19	0.1 "	2.54 mm	Dual	Solder	Gold	Copper Alloy	Cantilever	125 °C	-40 C	Black	38	M3 Threaded Insert Top Mount Opening	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Board Edge Straddle Mount				Card Extender

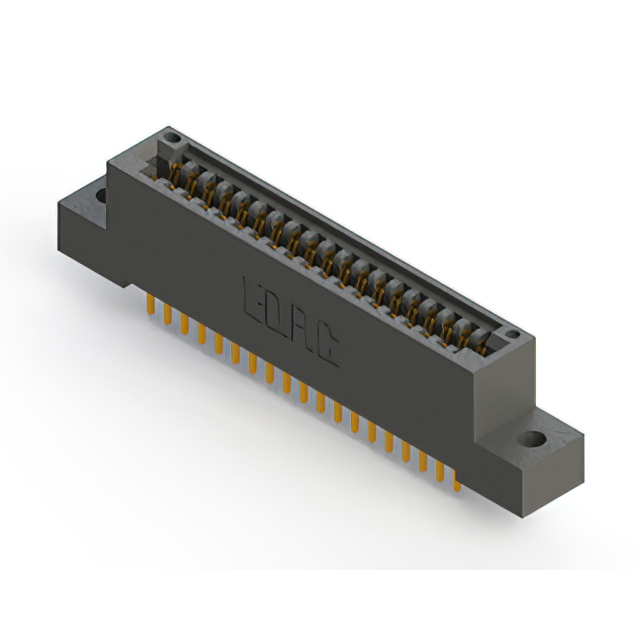

EDAC Inc. 895-038-521-202	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	2	19	0.1 "	2.54 mm	Dual	Solder	Gold	Copper Alloy	Cantilever	125 °C	-40 C	Black	38	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Through Hole					0.128 "	3.25 mm

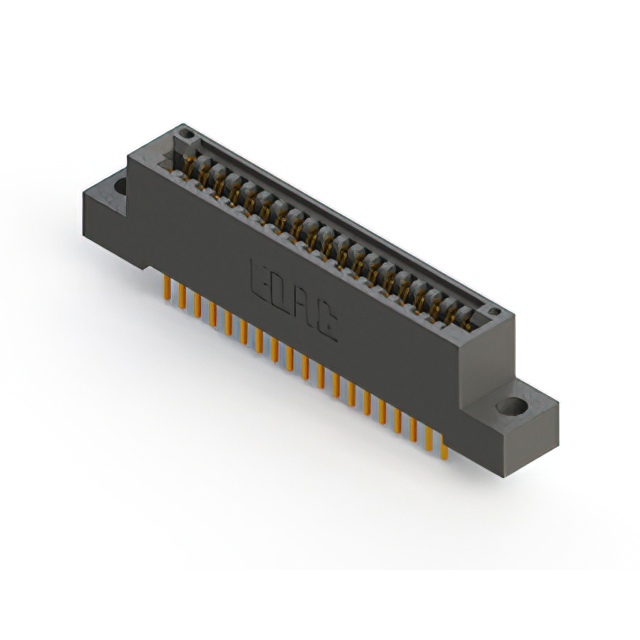

EDAC Inc. 895-038-523-204	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	2	19	0.1 "	2.54 mm	Dual	Solder	Gold	Copper Alloy	Cantilever	125 °C	-40 C	Black	38	Flush Mount Top Opening Unthreaded	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Through Hole					0.156 "	3.96 mm
EDAC Inc. 895-038-558-403	Polyphenylene Sulfide (PPS)		0.07 in 1.78 mm	0.054 in 1.37 mm			0.1 "	2.54 mm	Single	Solder	Gold	Copper Alloy	Cantilever	125 °C	-40 C	Black	38	Floating Bobbin Top Mount Opening	Non Specified - Single Edge	Female	0.25 Ám	10 Áin	Right Angle Through Hole	1	1	38		0.116 "	2.95 mm

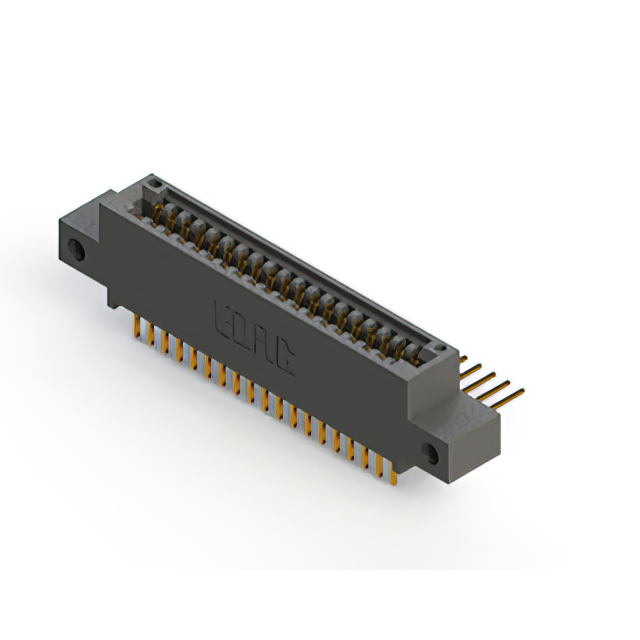

EDAC Inc. 895-038-558-512	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	2	19	0.1 "	2.54 mm	Dual	Solder	Gold	Copper Alloy	Cantilever	125 °C	-40 C	Black	38	Side Mount Opening Unthreaded	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Right Angle Through Hole					0.128 "	3.25 mm

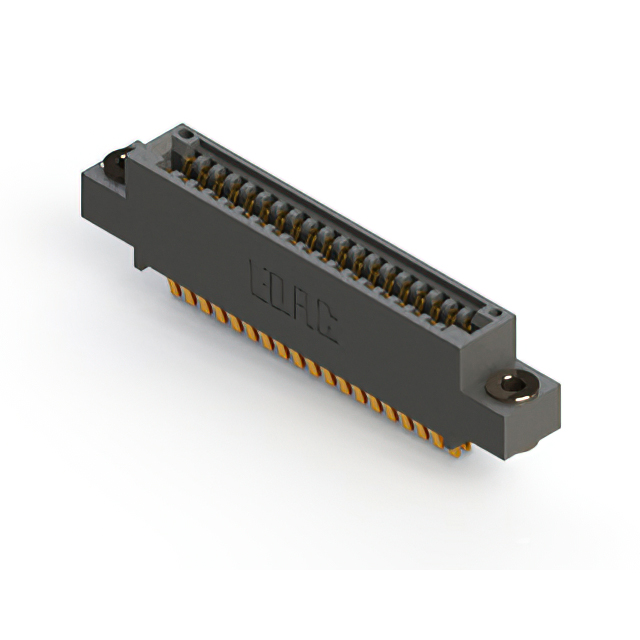

EDAC Inc. 895-038-560-503	Polyphenylene Sulfide (PPS)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	2	19	0.1 "	2.54 mm	Dual	Solder	Gold	Copper Alloy	Cantilever	125 °C	-40 C	Black	38	Floating Bobbin Top Mount Opening	Non Specified - Dual Edge	Female	0.25 Ám	10 Áin	Board Edge Straddle Mount				Card Extender	0.116 "	2.95 mm
