G63L0C-P Series
Manufacturer: ODU
Beta
⌘K

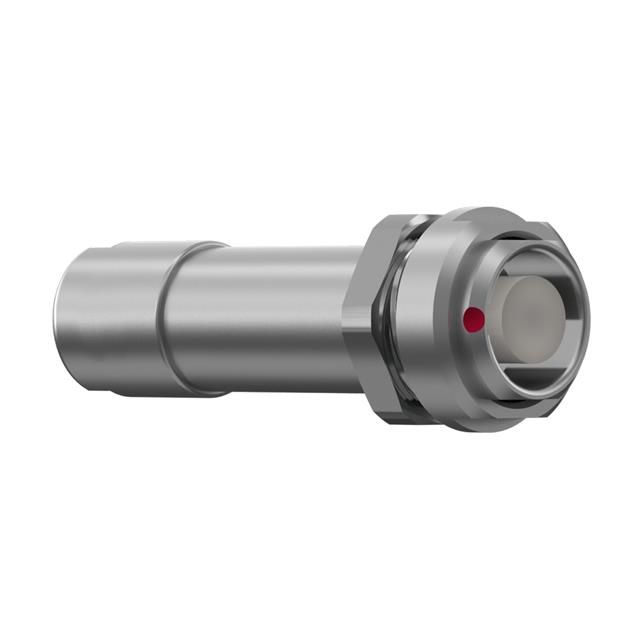

ODU MINI-SNAP RECEPT, STY 6, SZ
| Part | Shell Material | Primary Material | Mounting Feature | Contact Material | Applications | Mounting Type | Voltage Rating | Ingress Protection | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Connector Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Current Rating (Amps) | Contact Finish - Mating | Color | Features | Orientation | Shell Finish | Number of Positions | Shell Size - Insert | Fastening Type | Cable Opening | Cable Opening [Max] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Brass | Metal | Bulkhead - Front or Rear Side Nut | Brass | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) Panel Mount | 450 V | IP50 - Dust Protected | Unshielded | 120 °C | -40 C | Polyetheretherketone (PEEK) | Receptacle Female Sockets | 0.402 in | 0.354 in | 9 mm | 10.2 mm | 15 A | Gold | Silver | Backshell Ground | 0 | Chrome over Nickel | 8 | 3 TPI | Push-Pull | ||||
Brass | Metal | Bulkhead - Front or Rear Side Nut | Brass | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) Panel Mount | 600 V | IP50 - Dust Protected | Unshielded | 120 °C | -40 C | Polyetheretherketone (PEEK) | Receptacle Female Sockets | 0.402 in | 0.354 in | 9 mm | 10.2 mm | 24 A | Gold | Silver | Backshell Ground | 0 | Chrome over Nickel | 3 TPI | Push-Pull | |||||
Brass | Metal | Bulkhead - Front or Rear Side Nut | Brass | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) Panel Mount | 600 V | IP50 - Dust Protected | Unshielded | 120 °C | -40 C | Polyetheretherketone (PEEK) | Receptacle Female Sockets | 0.205 in | 0.157 in | 16 A | Gold | Silver | Backshell Ground | 0 | Chrome over Nickel | 7 | 3 TPI | Push-Pull | 4 mm 5.2 mm | |||||
Brass | Metal | Bulkhead - Front or Rear Side Nut | Brass | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) Panel Mount | 600 V | IP50 - Dust Protected | Unshielded | 120 °C | -40 C | Polyetheretherketone (PEEK) | Receptacle Female Sockets | 0.283 " | 0.236 in | 6 mm | 7.2 mm | 18 A | Gold | Silver | Backshell Ground | 0 | Chrome over Nickel | 3 TPI | Push-Pull | |||||
Brass | Metal | Bulkhead - Front or Rear Side Nut | Brass | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) Panel Mount | 300 VDC | IP50 - Dust Protected | Unshielded | 120 °C | -40 C | Polyetheretherketone (PEEK) | Receptacle Female Sockets | 0.362 in | 0.315 " | 8 mm | 7.5 A | Gold | Silver | Backshell Ground | 0 | Chrome over Nickel | 30 | 3 TPI | Push-Pull | 9.2 mm | Crimp |
