MCDHT Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SERVO DRIVER 30A 120V LOAD

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	For Use With/Related Products	Mounting Type	Wattage - Load	Type	Motor Type	Voltage - Load	Interface	Weight	Weight	Control / Drive Type	Current - Output

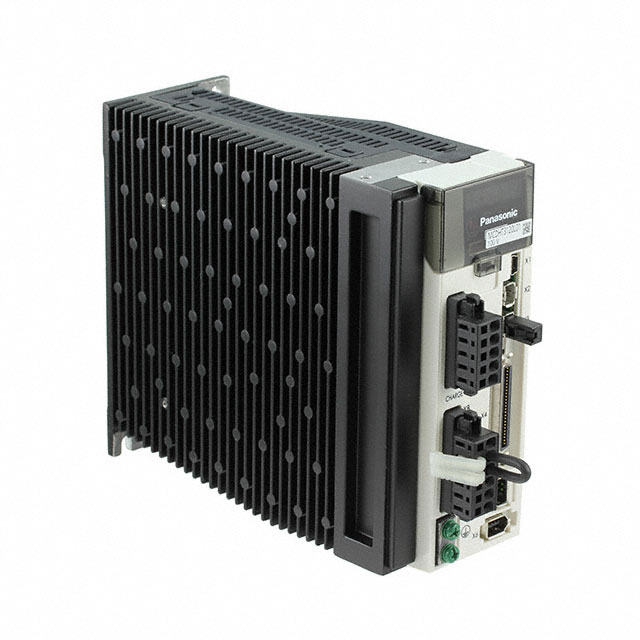

Panasonic Industrial Automation Sales MCDHT3120L01	100 VAC	120 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	120 V	EtherCat USB	1.6 kg	3.6 lbs	Servo AC	30 A

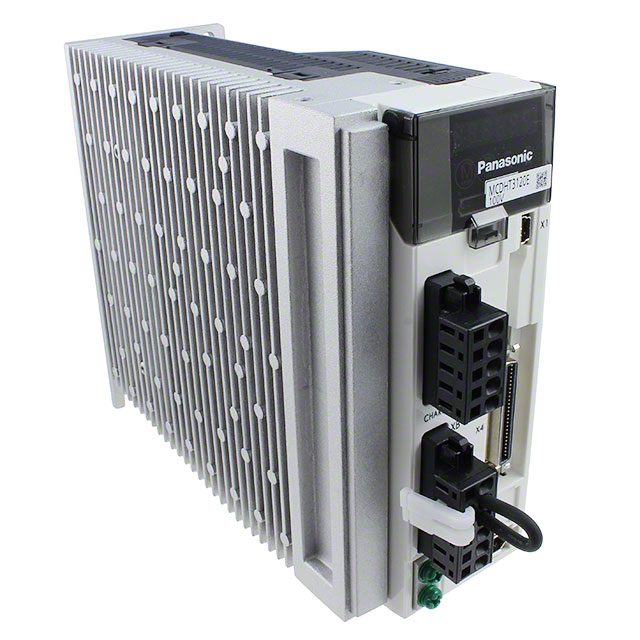

Panasonic Industrial Automation Sales MCDHT3120E	100 VAC	120 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	120 V	RS-232 RS-485 USB	1.6 kg	3.6 lbs	Servo AC	30 A

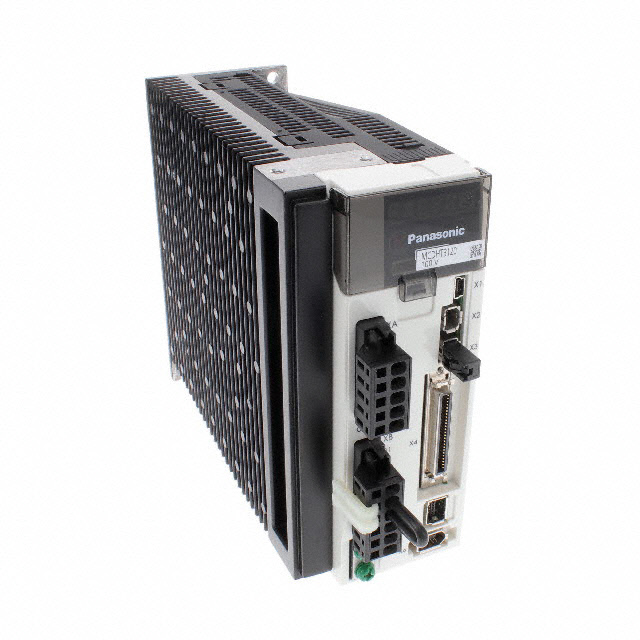

Panasonic Industrial Automation Sales MCDHT3120	100 VAC	120 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	120 V	RS-232 RS-485 USB	1.6 kg	3.6 lbs	Servo AC	30 A

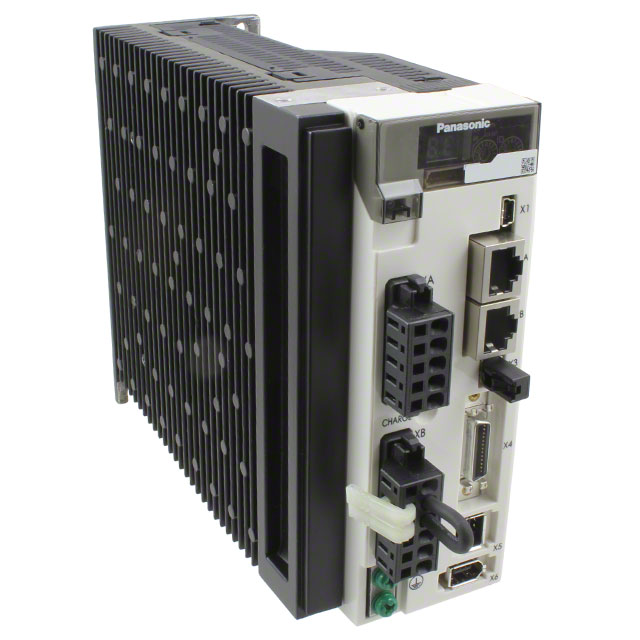

Panasonic Industrial Automation Sales MCDHT3120B01	100 VAC	120 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	120 V	EtherCat USB	1.6 kg	3.6 lbs	Servo AC	30 A
Panasonic Industrial Automation Sales MCDHT3520E	200 VAC	240 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	240 V	USB	1.6 kg	3.6 lbs	Servo AC	30 A
Panasonic Industrial Automation Sales MCDHT3520L01	200 VAC	240 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	240 V	RS-232 RS-485 USB	1.6 kg	3.6 lbs	Servo AC	30 A

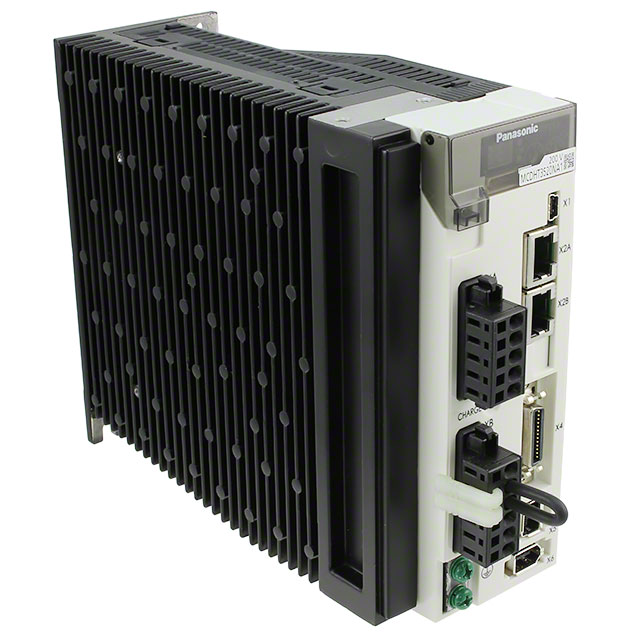

Panasonic Industrial Automation Sales MCDHT3520NA1	200 VAC	240 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	240 V	RS-232 RS-485 USB	1.6 kg	3.6 lbs	Servo AC	30 A

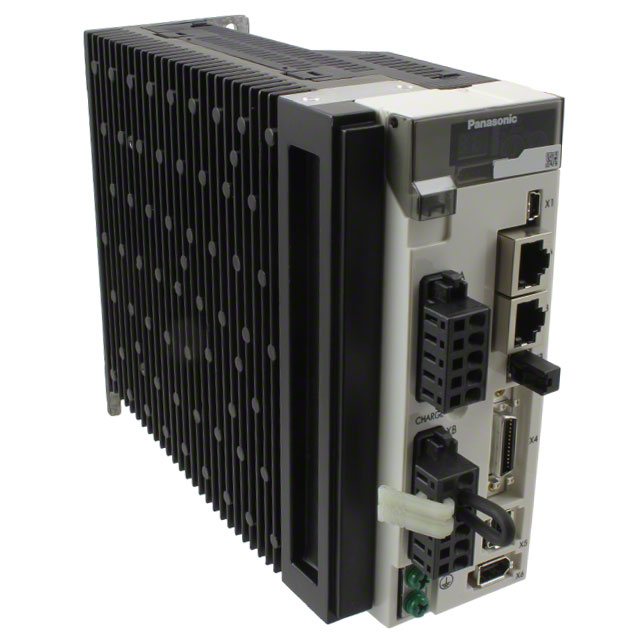

Panasonic Industrial Automation Sales MCDHT3520B01	200 VAC	240 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	240 V	EtherCat USB	1.6 kg	3.6 lbs	Servo AC	30 A
Panasonic Industrial Automation Sales MCDHT3120BA1	100 VAC	120 VAC	MINAS A5 Series	Chassis Mount	750 W	Module	Servo	120 V	EtherCat USB	1.6 kg	3.6 lbs	Servo AC	30 A
