A10K0C-P Series
Manufacturer: ODU
Beta
⌘K

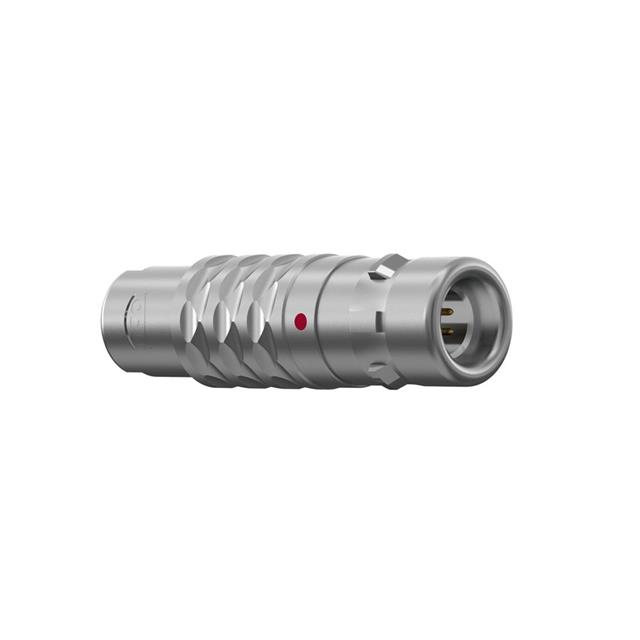

ODU MINI-SNAP BREAK-AWAY PLUG, S
| Part | Features | Current Rating (Amps) | Orientation | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Shell Size - Insert [custom] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Insert Material | Ingress Protection | Color | Mounting Type | Applications | Backshell Material, Plating | Connector Type | Primary Material | Fastening Type | Shell Finish | Contact Material | Contact Finish - Mating | Voltage Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Backshell | 4 A | 0 | Brass | 120 °C | -40 C | Shielded | 0 | 0.177 in | 5 mm | 4.5 mm | 0.197 in | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Silver | Free Hanging (In-Line) | Industrial Medical Military Testing Equipment & Measurement | Brass Chrome over Nickel | Plug Male Pins | Metal | Push-Pull | Chrome over Nickel | Brass | Gold | 200 V | 9 | |
Backshell | 7.5 A | 0 | Brass | 120 °C | -40 C | Shielded | 0 | 0.177 in | 5 mm | 4.5 mm | 0.197 in | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Silver | Free Hanging (In-Line) | Industrial Medical Military Testing Equipment & Measurement | Brass Chrome over Nickel | Plug Male Pins | Metal | Push-Pull | Chrome over Nickel | Brass | Gold | 300 VDC | 4 | |
Backshell | 7.5 A | 0 | Brass | 120 °C | -40 C | Shielded | 0 | 0.118 in | 3.5 mm | 3 mm | 0.138 in | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Silver | Free Hanging (In-Line) | Industrial Medical Military Testing Equipment & Measurement | Brass Chrome over Nickel | Plug Male Pins | Metal | Push-Pull | Chrome over Nickel | Brass | Gold | 300 VDC | 4 | |
Backshell | 4 A | 0 | Brass | 120 °C | -40 C | Shielded | 0 | 0.157 in | 4.5 mm | 4 mm | 0.177 " | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Silver | Free Hanging (In-Line) | Industrial Medical Military Testing Equipment & Measurement | Brass Chrome over Nickel | Plug Male Pins | Metal | Push-Pull | Chrome over Nickel | Brass | Gold | 200 V | 10 | |
Backshell | 7.5 A | 0 | Brass | 120 °C | -40 C | Shielded | 0 | 0.138 " | 4 mm | 3.5 mm | 0.157 in | Polyetheretherketone (PEEK) | IP68 - Dust Tight Waterproof | Silver | Free Hanging (In-Line) | Industrial Medical Military Testing Equipment & Measurement | Brass Chrome over Nickel | Plug Male Pins | Metal | Push-Pull | Chrome over Nickel | Brass | Gold | 200 V | 5 |
