ERM04B Series

Catalog

DC DC CONVERTER 12V 50W

Part	Power (Watts)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Output 1	Efficiency	Current - Output (Max) [Max]	Voltage - Isolation	Number of Outputs	Voltage - Input (Max) [Max]	Supplier Device Package	Type	Voltage - Input (Min) [Min]	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features

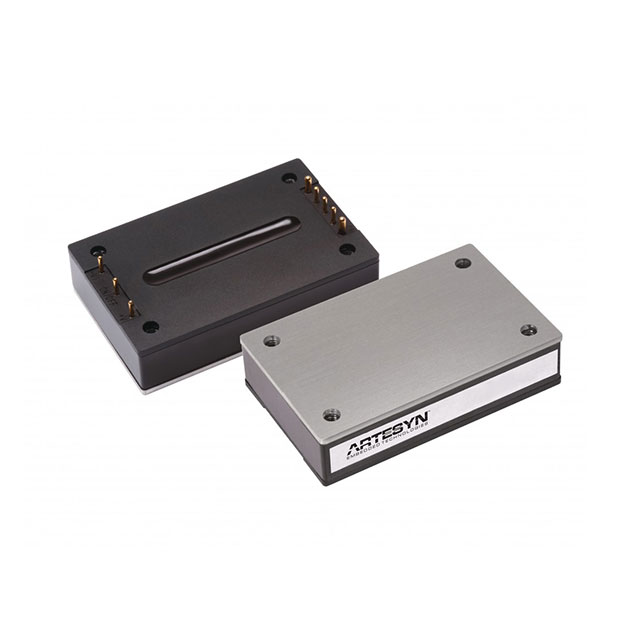

ARTESYN / Advanced Energy ERM04B72-HS	50 W	Through Hole	85 °C	-40 C	Quarter Brick	12 V	92 %	4.17 A	1.5 kV	1	101 V	Quarter Brick	Isolated Module	43 V	ITE (Commercial) Railway	0.79 in	36.8 mm	1.45 in	20 mm	57.9 mm	2.28 "
ARTESYN / Advanced Energy ERM04B110-HS	50 W	Through Hole	85 °C	-40 C	8-DIP Module	12 V	91 %	4.17 A	3000 V	1	160 V		Isolated Module	66 V	ITE (Commercial) Railway	0.78 in		1.45 in		57.9 mm	2.28 "	20 mm	36.8 mm	OCP Remote On/Off SCP UVLO
