ASMT-UWB1 Series

Catalog

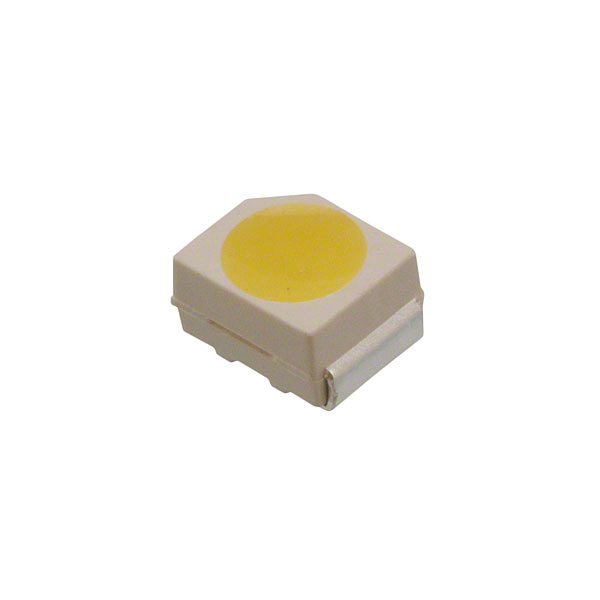

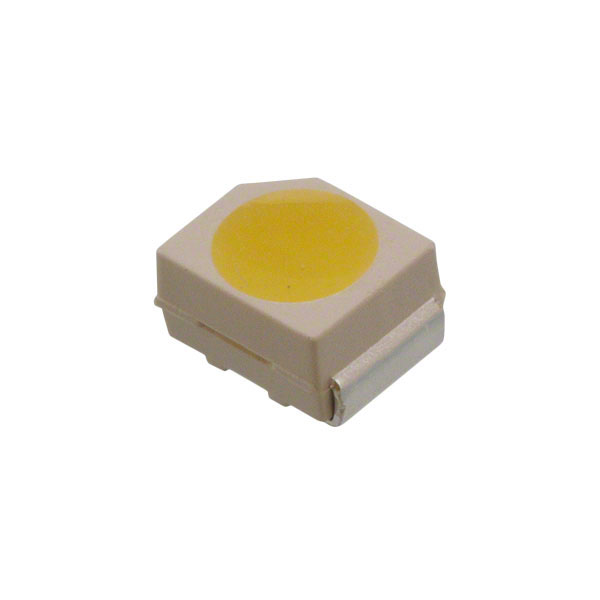

LED WHITE/NEUTRAL DIFF 2PLCC SMD

Part	Millicandela Rating	Viewing Angle	Lens Transparency	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Configuration	Lens Color	Height (Max) [z]	Color	Lens Style	Supplier Device Package	Current - Test	Package / Case	Mounting Type	Lens Size [diameter]
Broadcom Limited ASMT-UWB1-ZAAF2	2250 mcd	120 °	Diffused	4000 K	2.8 mm	3.2 mm	3.2 V	Standard	Yellow	2.1 mm	Neutral White	Round with Flat Top	2-PLCC	20 mA	2-PLCC	Surface Mount
Broadcom Limited ASMT-UWB1-NX7D2		120 °		5000 K	2.8 mm	3.2 mm	2.8 V	Standard		2.1 mm	Cool White	Round with Flat Top	2-PLCC	20 mA	2-PLCC	Surface Mount
Broadcom Limited ASMT-UWB1-ZX7B2				6500 K	2.8 mm	3.2 mm		Standard		2.1 mm	Cool White		2-PLCC		2-PLCC	Surface Mount
Broadcom Limited ASMT-UWB1-NX3H2	2300 mcd	120 °	Diffused	3000 K	2.8 mm	3.2 mm	3.2 V	Standard	Yellow	2.1 mm	Warm White	Round with Flat Top	2-PLCC	20 mA	4-SMD Flat Lead Exposed Pad	Surface Mount	2.2 mm
Broadcom Limited ASMT-UWB1-NX3D2	2300 mcd	120 °	Diffused	5000 K	2.8 mm	3.2 mm	3.2 V	Standard	Yellow	2.1 mm	Cool White	Round with Flat Top	2-PLCC	20 mA	2-PLCC	Surface Mount
Broadcom Limited ASMT-UWB1-ZAAC2				5700 K	2.8 mm	3.2 mm		Standard		2.1 mm	Cool White		2-PLCC		2-PLCC	Surface Mount
Broadcom Limited ASMT-UWB1-NX3J2	2300 mcd	120 °	Diffused	2700 K	2.8 mm	3.2 mm	3.2 V	Standard	Yellow	2.1 mm	Warm White	Round with Flat Top	2-PLCC	20 mA	4-SMD Flat Lead Exposed Pad	Surface Mount	2.2 mm
Broadcom Limited ASMT-UWB1-NX7B2		120 °		6500 K	2.8 mm	3.2 mm	2.8 V	Standard		2.1 mm	Cool White	Round with Flat Top	2-PLCC	20 mA	2-PLCC	Surface Mount
Broadcom Limited ASMT-UWB1-NX3B2	2300 mcd	120 °	Diffused	6500 K	2.8 mm	3.2 mm	3.2 V	Standard	Yellow	2.1 mm	Cool White	Round with Flat Top	2-PLCC	20 mA	4-SMD Flat Lead Exposed Pad	Surface Mount	2.2 mm
