91615 Series

Catalog

CONN RCPT 16POS 0.1 TIN SMD

Part	Termination	Number of Positions	Contact Finish - Post	Insulation Height	Insulation Height	Material Flammability Rating	Number of Rows	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Mated Stacking Heights	Contact Material	Number of Positions Loaded	Contact Type	Applications	Insulation Color	Fastening Type	Connector Type	Contact Finish - Mating	Features	Number of Positions
Amphenol ICC (FCI) 91615-408LF	Solder	16	Tin	6.99 mm	0.275 in	UL94 V-0	2	Surface Mount	2.54 mm	0.1 in	Square	78.7 µin	2 µm	2 çm	78.7 çin	0.1 in	2.54 mm	10.81 mm	Phosphor Bronze	All	Female Socket	Automotive General Purpose Industrial Telecommunications	Gray	Push-Pull	Receptacle Bottom or Top Entry
Amphenol ICC (FCI) 91615-320ANLF	Solder		Tin	6.99 mm	0.275 in	UL94 V-0	2	Surface Mount	2.54 mm	0.1 in	Square	30 Áin	0.76 Ám	2 çm	78.7 çin	0.1 in	2.54 mm	10.81 mm	Phosphor Bronze	All	Female Socket	Automotive General Purpose Industrial Telecommunications	Gray	Push-Pull	Receptacle Bottom or Top Entry	Gold	Board Lock Pick and Place	40
Amphenol ICC (FCI) 91615-308LF	Solder	16	Tin	6.99 mm	0.275 in	UL94 V-0	2	Surface Mount	2.54 mm	0.1 in	Square	30 Áin	0.76 Ám	2 çm	78.7 çin	0.1 in	2.54 mm	10.81 mm	Phosphor Bronze	All	Female Socket	Automotive General Purpose Industrial Telecommunications	Gray	Push-Pull	Receptacle Bottom or Top Entry	Gold
Amphenol ICC (FCI) 91615-805ALF	Solder			6.99 mm	0.275 in	UL94 V-0	2	Surface Mount	2.54 mm	0.1 in	Square					0.1 in	2.54 mm	10.81 mm	Phosphor Bronze	All	Female Socket	Automotive General Purpose Industrial Telecommunications	Gray	Push-Pull	Receptacle Bottom or Top Entry			10

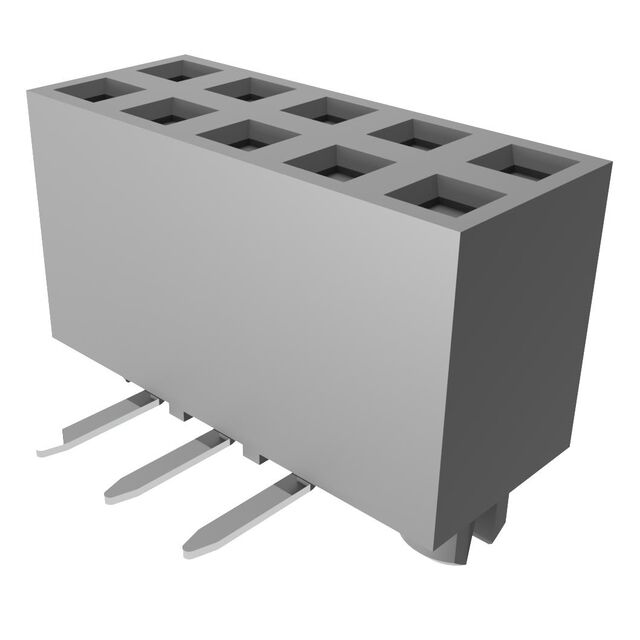

Amphenol ICC (FCI) 91615-303ALF	Solder		Tin	6.99 mm	0.275 in	UL94 V-0	2	Surface Mount	2.54 mm	0.1 in	Square	30 Áin	0.76 Ám	2 çm	78.7 çin	0.1 in	2.54 mm	10.81 mm	Phosphor Bronze	All	Female Socket	Automotive General Purpose Industrial Telecommunications	Gray	Push-Pull	Receptacle Bottom or Top Entry	Gold	Board Lock Pick and Place	6
Amphenol ICC (FCI) 91615-410ALF	Solder		Tin	6.99 mm	0.275 in	UL94 V-0	2	Surface Mount	2.54 mm	0.1 in	Square	78.7 µin	2 µm	2 çm	78.7 çin	0.1 in	2.54 mm	10.81 mm	Phosphor Bronze	All	Female Socket	Automotive General Purpose Industrial Telecommunications	Gray	Push-Pull	Receptacle Bottom or Top Entry		Board Lock Pick and Place	20
Amphenol ICC (FCI) 91615-417LF	Solder		Tin	6.99 mm	0.275 in	UL94 V-0	2	Surface Mount	2.54 mm	0.1 in	Square	78.7 µin	2 µm	2 çm	78.7 çin	0.1 in	2.54 mm	10.81 mm	Phosphor Bronze	All	Female Socket	Automotive General Purpose Industrial Telecommunications	Gray	Push-Pull	Receptacle Bottom or Top Entry			34
Amphenol ICC (FCI) 91615-407ALF	Solder		Tin	6.99 mm	0.275 in	UL94 V-0	2	Surface Mount	2.54 mm	0.1 in	Square	78.7 µin	2 µm	2 çm	78.7 çin	0.1 in	2.54 mm	10.81 mm	Phosphor Bronze	All	Female Socket	Automotive General Purpose Industrial Telecommunications	Gray	Push-Pull	Receptacle Bottom or Top Entry		Board Lock Pick and Place	14
Amphenol ICC (FCI) 91615-425LF	Solder		Tin	6.99 mm	0.275 in	UL94 V-0	2	Surface Mount	2.54 mm	0.1 in	Square	78.7 µin	2 µm	2 çm	78.7 çin	0.1 in	2.54 mm	10.81 mm	Phosphor Bronze	All	Female Socket	Automotive General Purpose Industrial Telecommunications	Gray	Push-Pull	Receptacle Bottom or Top Entry			50
Amphenol ICC (FCI) 91615-326LF	Solder		Tin	6.99 mm	0.275 in	UL94 V-0	2	Surface Mount	2.54 mm	0.1 in	Square	30 Áin	0.76 Ám	2 çm	78.7 çin	0.1 in	2.54 mm	10.81 mm	Phosphor Bronze	All	Female Socket	Automotive General Purpose Industrial Telecommunications	Gray	Push-Pull	Receptacle Bottom or Top Entry	Gold		52
