UCC28231 Series
Manufacturer: Texas Instruments
Beta
⌘K
IC REG CTRLR MULT TOP 14TSSOP
| Part | Topology | Output Phases | Supplier Device Package | Function | Synchronous Rectifier | Control Features | Package / Case [x] | Package / Case | Output Type | Clock Sync | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Mounting Type | Frequency - Switching [Max] | Frequency - Switching [Min] | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Full-Bridge Half-Bridge Push-Pull | 1 | 14-TSSOP | Step-Up/Step-Down | Frequency Control Soft Start | 0.173 " 4.4 mm | 14-TSSOP | Transistor Driver | 4 | -55 ░C | 125 °C | 7 V | 17 V | Surface Mount | 550 kHz | 100 kHz | Positive | ||

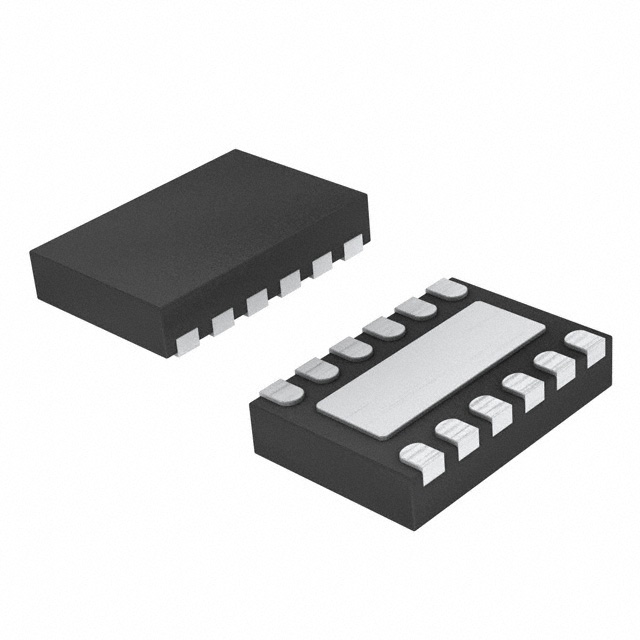

 Texas Instruments | Full-Bridge Half-Bridge Push-Pull | 1 | 12-USON (3x2) | Step-Up/Step-Down | Frequency Control Soft Start | 12-UFDFN Exposed Pad | Transistor Driver | 4 | -55 ░C | 125 °C | 7 V | 17 V | Surface Mount | 550 kHz | 100 kHz | Positive | |||
Texas Instruments | Full-Bridge Half-Bridge Push-Pull | 1 | 12-USON (3x2) | Step-Up/Step-Down | Frequency Control Soft Start | 12-UFDFN Exposed Pad | Transistor Driver | 4 | -55 ░C | 125 °C | 7 V | 17 V | Surface Mount | 550 kHz | 100 kHz | Positive |
