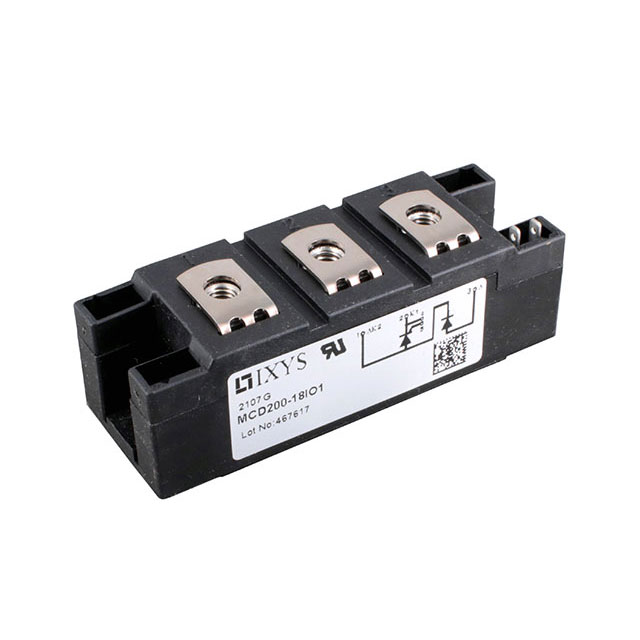

Bipolar Module-Thyristor/Diode Y4-M5/6
Description
AI
The Thyristor-Diode Modules Portfolio offers various packages and breakdown voltages up to 2200V.
Beta
⌘K
Bipolar Module-Thyristor/Diode Y4-M5/6
Bipolar Module-Thyristor/Diode Y4-M5/6
| Part | Mounting Type | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - On State (It (AV)) (Max) [Max] | Voltage - Gate Trigger (Vgt) (Max) [Max] [custom] | Voltage - Off State | Current - Hold (Ih) (Max) [Max] | Number of SCRs, Diodes | Structure | Current - On State (It (RMS)) (Max) [Max] | Current - Gate Trigger (Igt) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | Chassis Mount | 8000 A 8600 A | 216 A | 2 V | 1.4 kV | 150 mA | 1 Diode | Series Connection - SCR/Diode | 340 A | 150 mA | -40 C | 125 °C | Y4-M6 |
 LITTELFUSE | Chassis Mount | 8000 A 8600 A | 216 A | 2 V | 1.8 kV | 150 mA | 1 Diode | Series Connection - SCR/Diode | 340 A | 150 mA | -40 C | 125 °C | Y4-M6 |
