E2EW-QX12 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

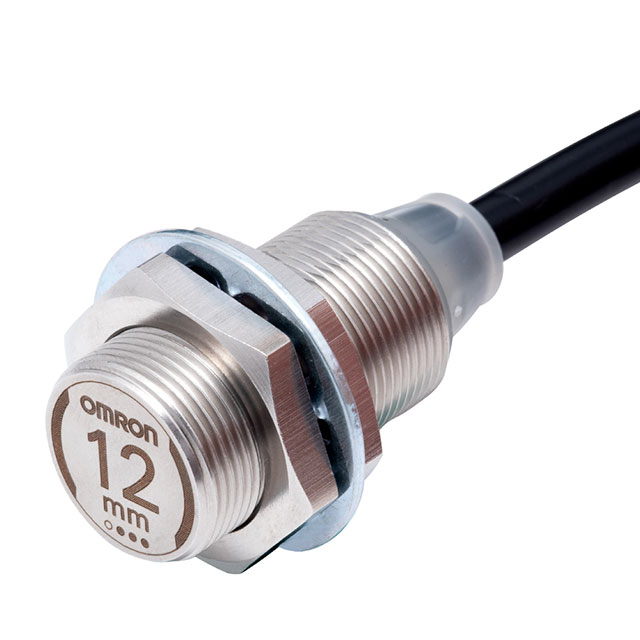

SENSOR PROX INDUCTIVE 12MM CYL
| Part | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Termination Style | Output Type | Sensor Type | Shielding | Indicator [custom] | Material - Body | Ingress Protection | Response Frequency | Sensing Distance | Sensing Distance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Cylinder Threaded - M18 | 0 °C | 85 °C | 30 VDC | 10 VDC | Cable Leads | PNP-NC 3-Wire | Inductive | Shielded | LED | Stainless Steel | IP67 | 2 Hz | 0.472 in | 12 mm |
Omron Electronics Inc-EMC Div | Cylinder Threaded - M18 | 0 °C | 85 °C | 30 VDC | 10 VDC | Cable with Connector | PNP-NO 3-Wire | Inductive | Shielded | LED | Stainless Steel | IP67 | 2 Hz | 0.472 in | 12 mm |
Omron Electronics Inc-EMC Div | Cylinder Threaded - M18 | 0 °C | 85 °C | 30 VDC | 10 VDC | Cable with Connector | NPN-NC 3-Wire | Inductive | Shielded | LED | Stainless Steel | IP67 | 2 Hz | 0.472 in | 12 mm |
Omron Electronics Inc-EMC Div | Cylinder Threaded - M18 | 0 °C | 85 °C | 30 VDC | 10 VDC | Cable Leads | NPN-NO 3-Wire | Inductive | Shielded | LED | Stainless Steel | IP67 | 2 Hz | 0.472 in | 12 mm |
Omron Electronics Inc-EMC Div | Cylinder Threaded - M18 | 0 °C | 85 °C | 30 VDC | 10 VDC | Cable Leads | NPN-NC 3-Wire | Inductive | Shielded | LED | Stainless Steel | IP67 | 2 Hz | 0.472 in | 12 mm |
Omron Electronics Inc-EMC Div | Cylinder Threaded - M18 | 0 °C | 85 °C | 30 VDC | 10 VDC | Cable Leads | NPN-NO 3-Wire | Inductive | Shielded | LED | Stainless Steel | IP67 | 2 Hz | 0.472 in | 12 mm |
Omron Electronics Inc-EMC Div | Cylinder Threaded - M18 | 0 °C | 85 °C | 30 VDC | 10 VDC | Cable Leads | PNP-NC 3-Wire | Inductive | Shielded | LED | Stainless Steel | IP67 | 2 Hz | 0.472 in | 12 mm |
 Omron Electronics Inc-EMC Div | Cylinder Threaded - M18 | 0 °C | 85 °C | 30 VDC | 10 VDC | Cable with Connector | PNP-NO 3-Wire | Inductive | Shielded | LED | Polytetrafluoroethylene (PTFE) | IP67 | 2 Hz | 0.472 in | 12 mm |
Omron Electronics Inc-EMC Div | Cylinder Threaded - M18 | 0 °C | 85 °C | 30 VDC | 10 VDC | Cable Leads | PNP-NC/NO 3-Wire | Inductive | Shielded | LED | Stainless Steel | IP67 | 2 Hz | 0.472 in | 12 mm |
Omron Electronics Inc-EMC Div | Cylinder Threaded - M18 | 0 °C | 85 °C | 30 VDC | 10 VDC | Cable Leads | PNP-NC/NO 3-Wire | Inductive | Shielded | LED | Stainless Steel | IP67 | 2 Hz | 0.472 in | 12 mm |
