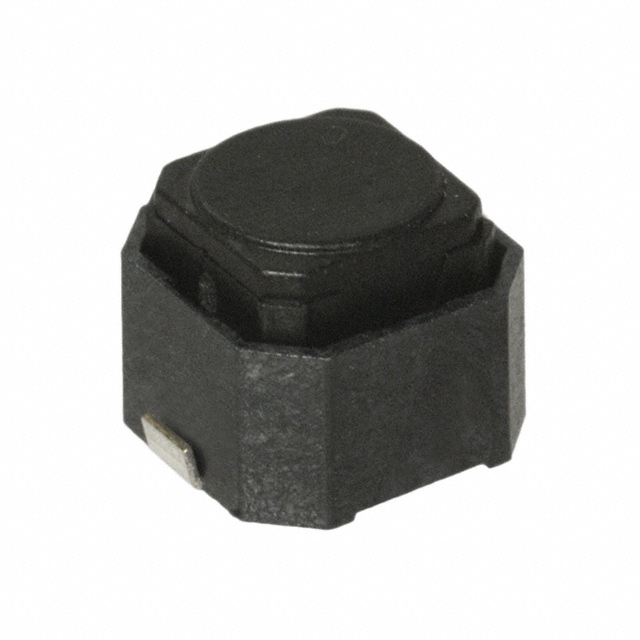

TL9210 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Switch Travel | Contact Rating @ Voltage | Outline [x] | Outline [y] | Switch Function | Actuator Orientation | Actuator Type | Actuator Height off PCB, Vertical [z] | Termination Style | Operating Force | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Illumination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 100000 Cycles | 1.3 mm | 0.05 A 12 VDC | 6 mm | 6 mm | Off-Mom | Top Actuated | Round Button | 5 mm | J Lead | 260 gf | SPST-NO | -20 ░C | 70 °C | Non-Illuminated | Surface Mount |
E-Switch | 100000 Cycles | 1.3 mm | 0.05 A 12 VDC | 6 mm | 6 mm | Off-Mom | Top Actuated | Round Button | 5 mm | J Lead | 180 gf | SPST-NO | -20 ░C | 70 °C | Non-Illuminated | Surface Mount |
