737-030 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 30POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Contact Finish	Card Type	Number of Positions/Bay/Row	Mounting Type	Read Out	Contact Type	Contact Material	Color	Number of Rows [custom]	Gender	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Number of Rows

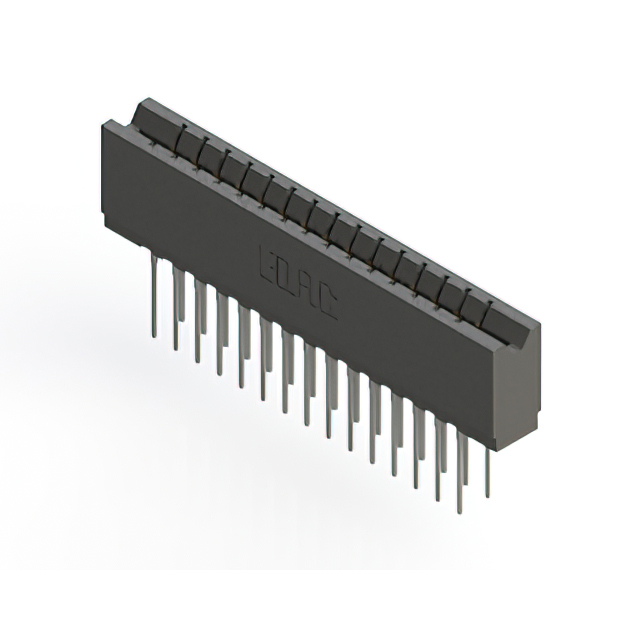

EDAC Inc. 737-030-545-206	2	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	15	Through Hole	Dual	Cantilever	Copper Alloy	Black	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	30	Press-Fit Wire Wrap	30 Áin	0.76 Ám
EDAC Inc. 737-030-540-206	2	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	15	Through Hole	Dual	Cantilever	Copper Alloy	Black	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	30	Press-Fit Wire Wrap	30 Áin	0.76 Ám
EDAC Inc. 737-030-522-201	2	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	15	Through Hole	Dual	Cantilever	Copper Alloy	Black	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	30	Press-Fit	30 Áin	0.76 Ám
EDAC Inc. 737-030-541-106		Polyester Thermoplastic	Gold	Non Specified - Single Edge	30	Through Hole	Single	Cantilever	Copper Alloy	Black		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	30	Press-Fit Wire Wrap	30 Áin	0.76 Ám	1	1
EDAC Inc. 737-030-545-106		Polyester Thermoplastic	Gold	Non Specified - Single Edge	30	Through Hole	Single	Cantilever	Copper Alloy	Black		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	30	Press-Fit Wire Wrap	30 Áin	0.76 Ám	1	1
EDAC Inc. 737-030-525-101		Polyester Thermoplastic	Gold	Non Specified - Single Edge	30	Through Hole	Single	Cantilever	Copper Alloy	Black		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	30	Press-Fit	30 Áin	0.76 Ám	1	1

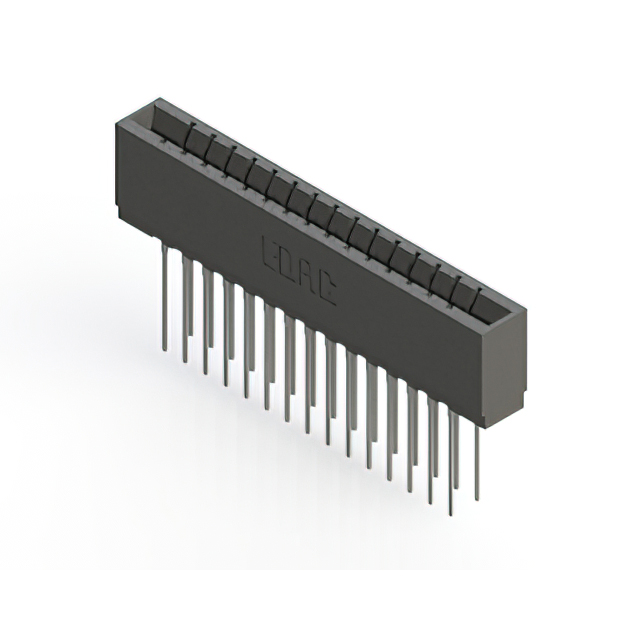

EDAC Inc. 737-030-541-201	2	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	15	Through Hole	Dual	Cantilever	Copper Alloy	Black	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	30	Press-Fit Wire Wrap	30 Áin	0.76 Ám

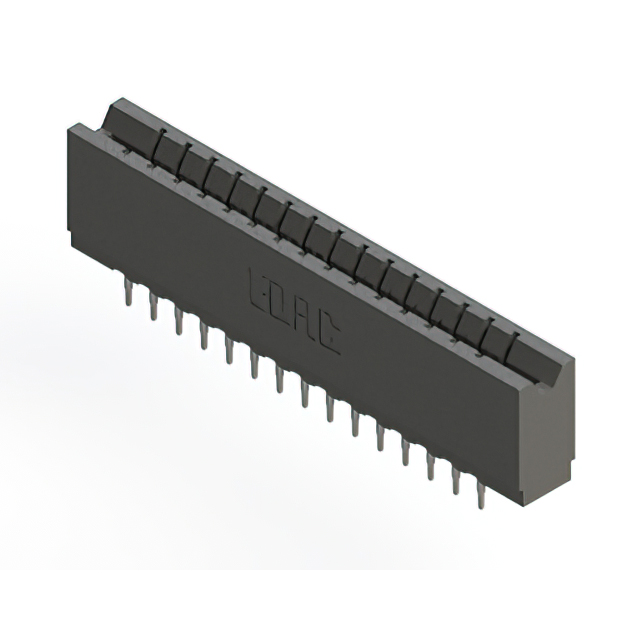

EDAC Inc. 737-030-520-206	2	Polyester Thermoplastic	Gold	Non Specified - Dual Edge	15	Through Hole	Dual	Cantilever	Copper Alloy	Black	2	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	30	Press-Fit	30 Áin	0.76 Ám
EDAC Inc. 737-030-520-101		Polyester Thermoplastic	Gold	Non Specified - Single Edge	30	Through Hole	Single	Cantilever	Copper Alloy	Black		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	30	Press-Fit	30 Áin	0.76 Ám	1	1
EDAC Inc. 737-030-540-101		Polyester Thermoplastic	Gold	Non Specified - Single Edge	30	Through Hole	Single	Cantilever	Copper Alloy	Black		Female	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	30	Press-Fit Wire Wrap	30 Áin	0.76 Ám	1	1
