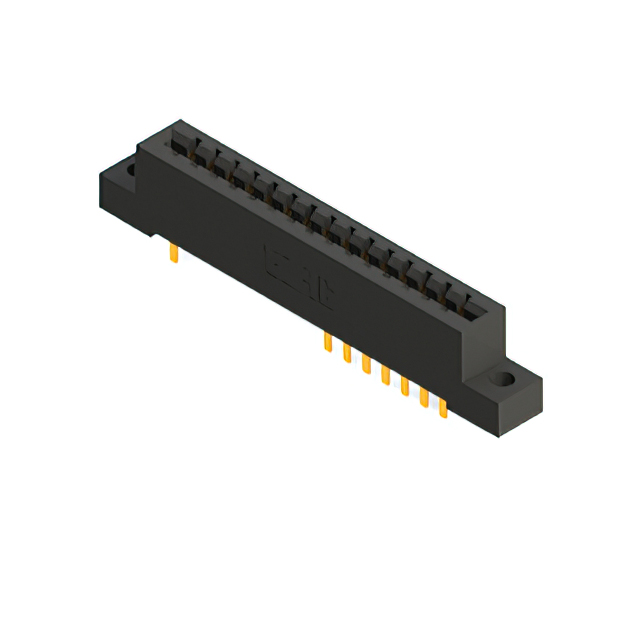

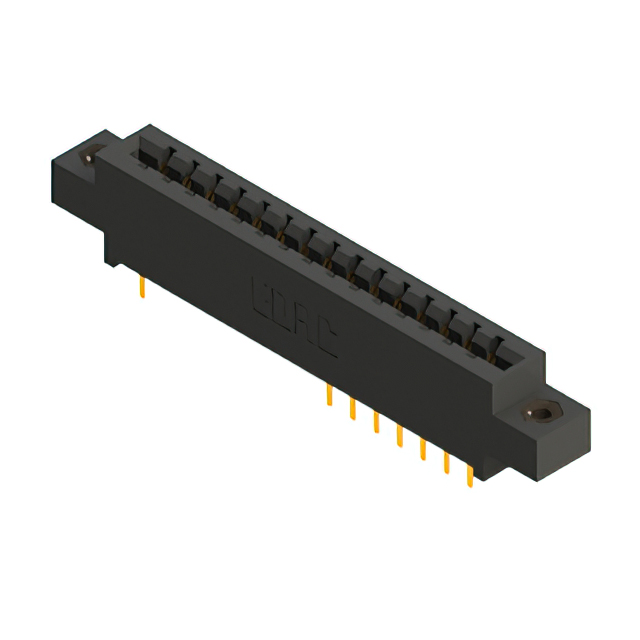

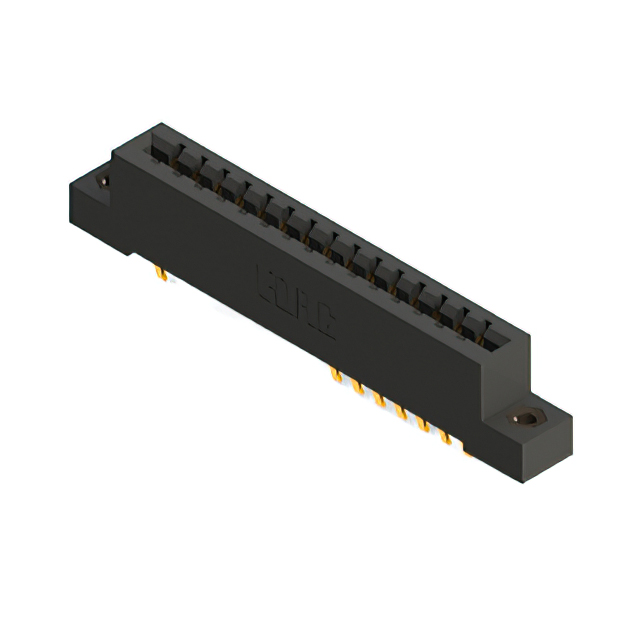

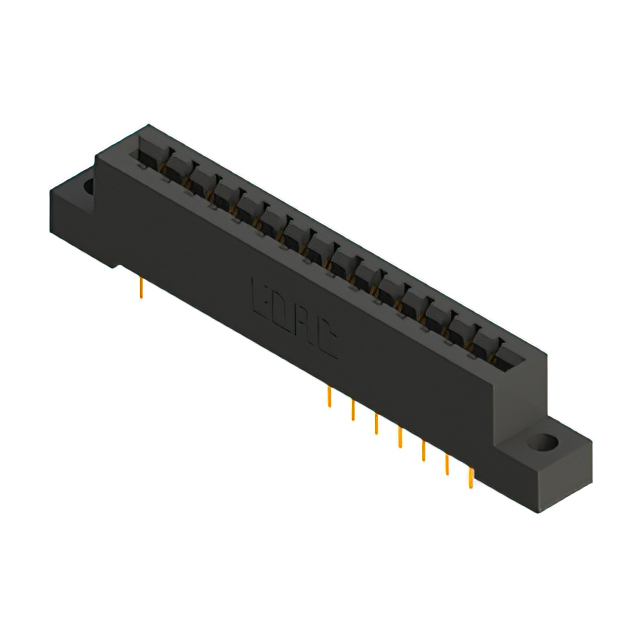

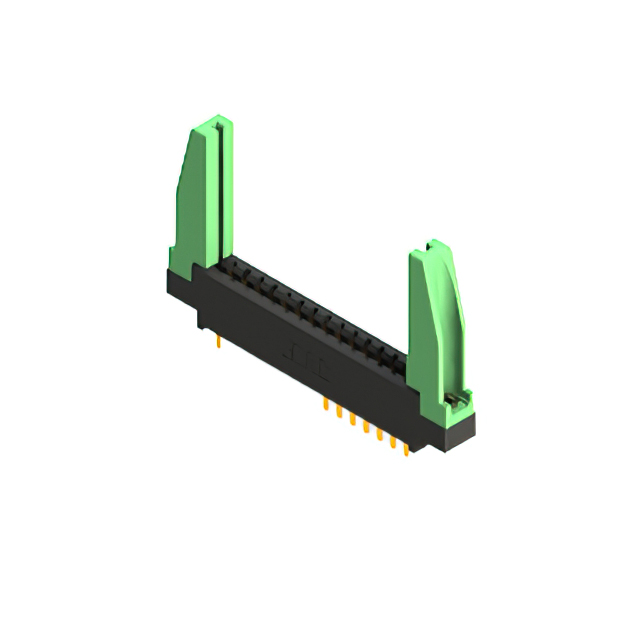

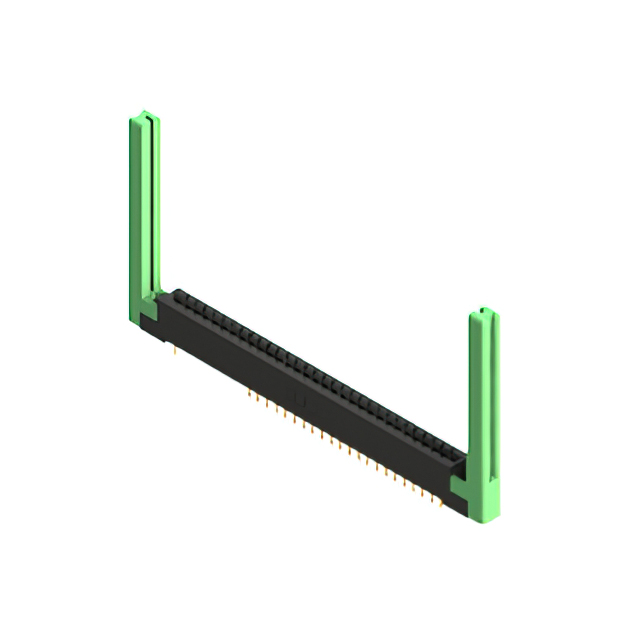

387-030 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 30POS 0.156
...
| Part | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Card Type | Gender | Read Out | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Material | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Type | Number of Positions | Termination | Contact Finish | Mounting Type | Termination Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 15 | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Female | Dual | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Cantilever | 30 | Solder | Gold | Through Hole | 2 | |
 EDAC Inc. | 15 | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Female | Dual | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Cantilever | 30 | Wire Wrap | Gold | Through Hole | 2 | |
 EDAC Inc. | 30 | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Single Edge | Female | Single | 10 Áin | 0.25 Ám | 1 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Cantilever | 30 | Solder | Gold | Through Hole | 1 | |||
 EDAC Inc. | 30 | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Single Edge | Female | Single | 10 Áin | 0.25 Ám | 1 | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | 30 | Wire Wrap | Gold | Through Hole Right Angle | 1 | |||
 EDAC Inc. | 30 | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Single Edge | Female | Single | 10 Áin | 0.25 Ám | 1 | Copper Alloy | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Cantilever | 30 | Wire Wrap | Gold | Through Hole | 1 | |
 EDAC Inc. | 15 | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Female | Dual | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Cantilever | 30 | Solder | Gold | Board Edge Straddle Mount | 2 | Card Extender |
 EDAC Inc. | 15 | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Female | Dual | 10 Áin | 0.25 Ám | 2 | Copper Alloy | Flush Mount M3 Threaded Insert Top Opening | Cantilever | 30 | Solder | Gold | Board Edge Straddle Mount | 2 | Card Extender | ||
 EDAC Inc. | 15 | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Female | Dual | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Cantilever | 30 | Solder | Gold | Through Hole | 2 | |||
 EDAC Inc. | 15 | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Female | Dual | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Cantilever | 30 | Wire Wrap | Gold | Through Hole | 2 | |||
 EDAC Inc. | 15 | 0.156 in | 3.96 mm | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Polyester Thermoplastic | Non Specified - Dual Edge | Female | Dual | 10 Áin | 0.25 Ám | 2 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Cantilever | 30 | Solder | Gold | Through Hole | 2 |
