VI05 Series
Manufacturer: Amphenol Anytek
Beta
⌘K

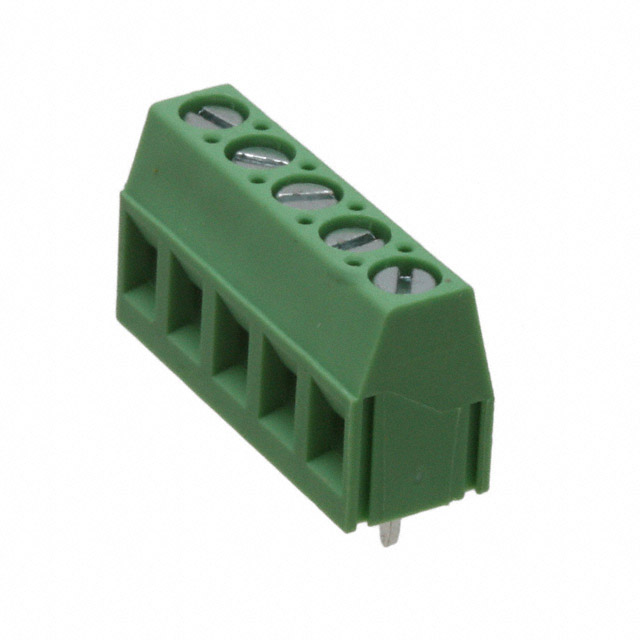

TERM BLK 5P TOP ENTRY 7.5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Orientation | Screw Thread | Screw Material - Plating | Clamp Material - Plating | Wire Termination | Current | Torque - Screw | Torque - Screw | Mounting Type | Number of Levels | Positions Per Level | Wire Gauge [Min] | Wire Gauge [Max] | Pitch [x] | Pitch [x] | Features | Housing Material | Voltage | Color | Contact Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Anytek | -40 °C | 115 °C | Vertical with Board | M3 | Steel Zinc Plated | Brass - Nickel Plated | Screw - Rising Cage Clamp | 16 A | 0.4 Nm | 3.5 Lb-In | Through Hole | 1 | 5 | 12 AWG | 28 AWG | 0.295 in | 7.5 mm | Interlocking (Side) | Thermoplastic | 300 V | Green | |
 Amphenol Anytek | -40 °C | 115 °C | Horizontal with Board | M3 | Steel Zinc Plated | Copper Alloy - Nickel Plated | Screw - Rising Cage Clamp | 16 A | 0.4 Nm | 3.5 Lb-In | Through Hole | 1 | 5 | 12 AWG | 28 AWG | 0.197 in | 5 mm | Interlocking (Side) | Thermoplastic | 300 V | Green | Copper Alloy - Tin Plated |
Amphenol Anytek | -40 °C | 115 °C | Vertical with Board | M3 | Steel Zinc Plated | Brass - Nickel Plated | Screw - Rising Cage Clamp | 16 A | 0.4 Nm | 3.5 Lb-In | Through Hole | 1 | 5 | 12 AWG | 28 AWG | 0.197 in | 5 mm | Interlocking (Side) | Thermoplastic | 300 V | Green | |
Amphenol Anytek | -40 °C | 115 °C | Horizontal with Board | M3 | Steel Zinc Plated | Brass - Nickel Plated | Screw - Rising Cage Clamp | 16 A | 0.4 Nm | 3.5 Lb-In | Through Hole | 1 | 5 | 12 AWG | 28 AWG | 0.295 in | 7.5 mm | Interlocking (Side) | Thermoplastic | 300 V | Green | |
Amphenol Anytek | -40 °C | 115 °C | Horizontal with Board | M3 | Steel Zinc Plated | Brass - Nickel Plated | Screw - Rising Cage Clamp | 16 A | 0.4 Nm | 3.5 Lb-In | Through Hole | 1 | 5 | 12 AWG | 28 AWG | 0.2 in | 5.08 mm | Interlocking (Side) | Thermoplastic | 300 V | Green |
