ISL28535 Series

5V, Rail-Rail I/O, Zero-Drift, Single Ended Output Programmable Gain Instrumentation Amplifier

Manufacturer: Renesas Electronics Corporation

Catalog

5V, Rail-Rail I/O, Zero-Drift, Single Ended Output Programmable Gain Instrumentation Amplifier

Part	Voltage - Supply Span (Max) [Max]	Supplier Device Package	Package / Case [custom]	Package / Case [custom]	Package / Case	Amplifier Type	Voltage - Supply Span (Min) [Min]	Slew Rate	Voltage - Input Offset	Current - Output / Channel	Output Type	Current - Input Bias	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply	Number of Circuits	Gain Bandwidth Product	Mounting Type	Board Type	Utilized IC / Part	Current - Supply (Main IC)	Channels per IC	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Supplied Contents
Renesas Electronics Corporation ISL28535FVZ-T13	5.5 V	14-TSSOP	0.173 "	4.4 mm	14-TSSOP	Zero-Drift	2.5 V	0.8 V/µs	0.2 µV	45 mA	Rail-to-Rail	50 pA	125 °C	-40 °C	2.9 mA	1	2.3 MHz	Surface Mount
Renesas Electronics Corporation ISL28535FVZ	5.5 V	14-TSSOP	0.173 "	4.4 mm	14-TSSOP	Zero-Drift	2.5 V	0.8 V/µs	0.2 µV	45 mA	Rail-to-Rail	50 pA	125 °C	-40 °C	2.9 mA	1	2.3 MHz	Surface Mount
Renesas Electronics Corporation ISL28535FVZ-T7A	5.5 V	14-TSSOP	0.173 "	4.4 mm	14-TSSOP	Zero-Drift	2.5 V	0.8 V/µs	0.2 µV	45 mA	Rail-to-Rail	50 pA	125 °C	-40 °C	2.9 mA	1	2.3 MHz	Surface Mount

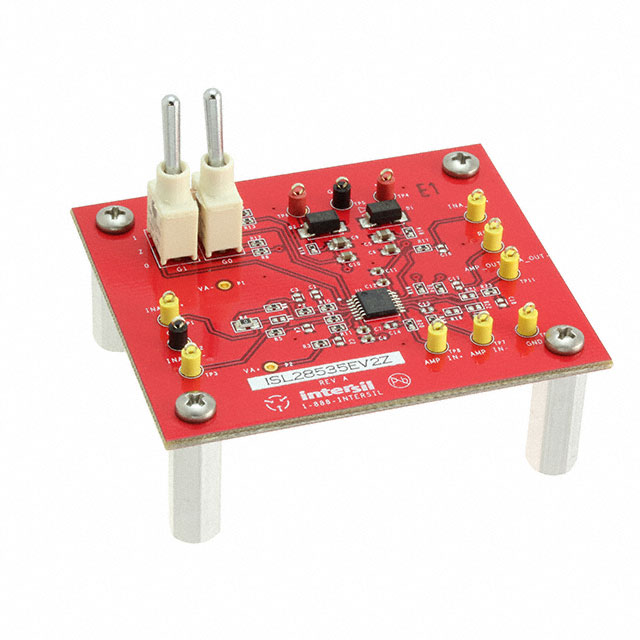

Renesas Electronics Corporation ISL28535EV2Z						Programmable Gain		0.8 V/µs		45 mA	Single-Ended								Fully Populated	ISL28535	2.9 mA	1 - Single	-1.25 V 2.5 V	2.75 V 5.5 V	Board(s)

Catalog

5V, Rail-Rail I/O, Zero-Drift, Single Ended Output Programmable Gain Instrumentation Amplifier

Description
