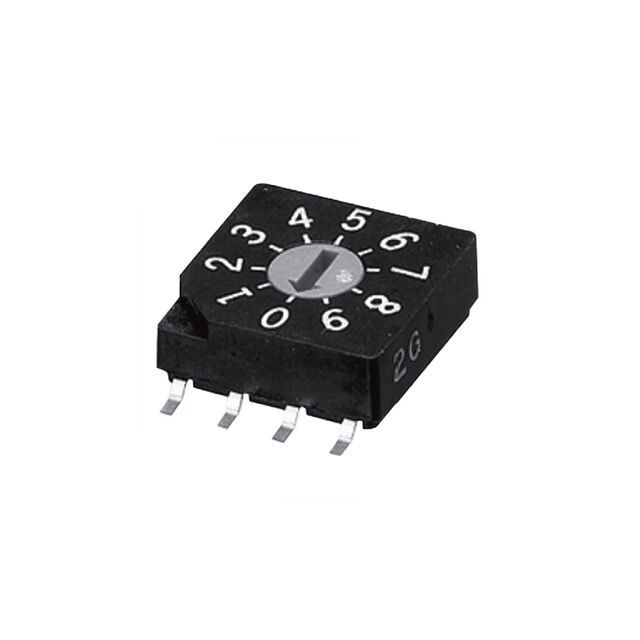

SC-2010 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
ROTARY CODE SWITCH, BCD, 0.1A, 5VDC, SMD ROHS COMPLIANT: YES
| Part | Contact Material | Current Rating (Amps) | Voltage Rating | Actuator Level | Body Material | Actuator Type | Termination Style | Pitch [x] | Pitch | Pitch [x] | Number of Positions | Height Above Board [z] | Height Above Board [z] | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Mounting Type | Electrical Life | Contact Finish | Washable | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | Copper Alloy | 100 mA | 5 V | Flush Recessed | Polyphenylene Sulfide (PPS) | Rotary for Tool | Gull Wing | 0.1 in | Full | 2.54 mm | 10 | 4 mm | 0.157 " | 85 °C | -40 °C | 10 mm | 0.394 in | Surface Mount | 20000 Steps | Gold | BCD |
